Nubion

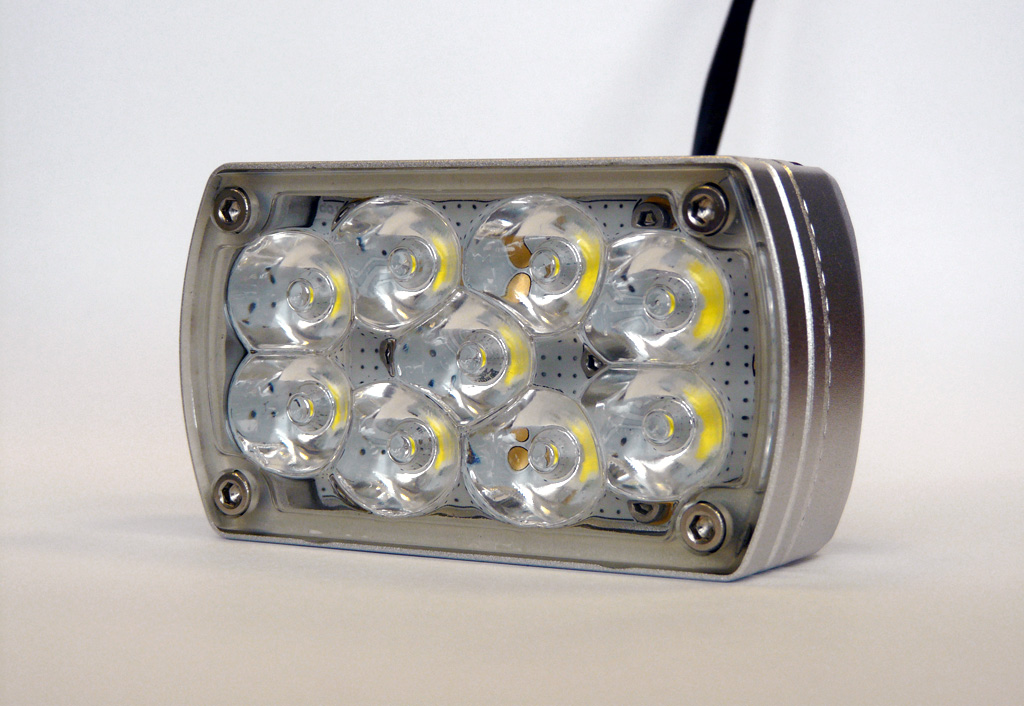

Nubion - taxi or landing light

Landing or Taxi LED light with WigWag function

Drop-In REPLACEMENT for old legacy lights

Exceleron-diagram

Specification

Dimensions (mm): 83,3 mm x 47,2 mm x 37 mm
Dimensions (inches): 3.280“ x 1.860“ x 1.457“
Weight: 220g / 7.76 oz
Operating Voltage Range: 18 – 36 VDC
Input Current (@18V): 1.2 A (+/-5%)
Input Current (@28V): 0.75 A (+/-5%)
Output Power: 18 W
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Overheat Protection: Yes
Taxi Lens – Viewing Angle: 40° x 20°
Landing Lens – Viewing Angle: 12°
Reverse Polarity Protection: Yes
Over-Voltage Protection: 80V (1s)
Over-Voltage Lockout: 38.5 VDC
Under-Voltage Protection: Yes
Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES

Drawing

Installation Manual

Optional Bracket – Vertical

Vertical bracket

Optional Bracket – Horizontal

Horizontal bracket

Gallery
