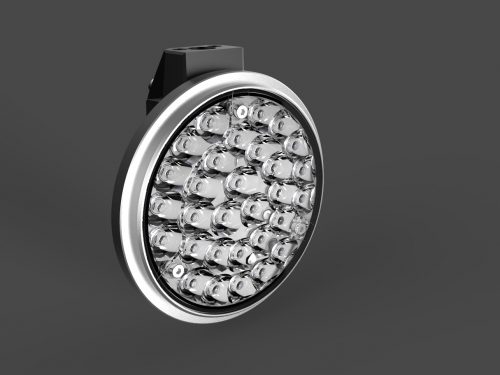

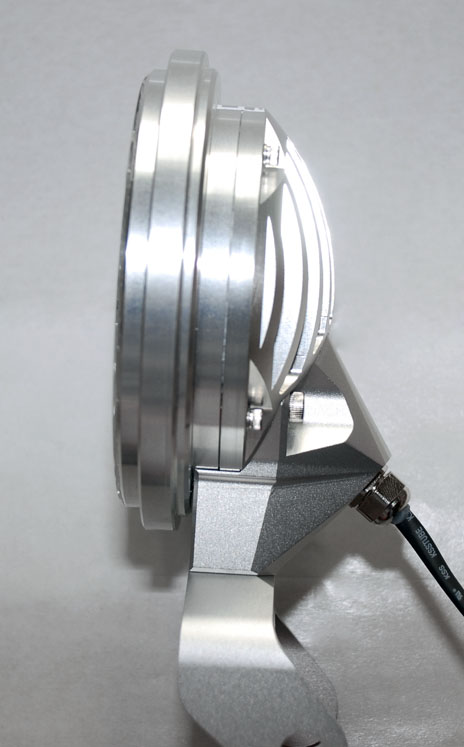

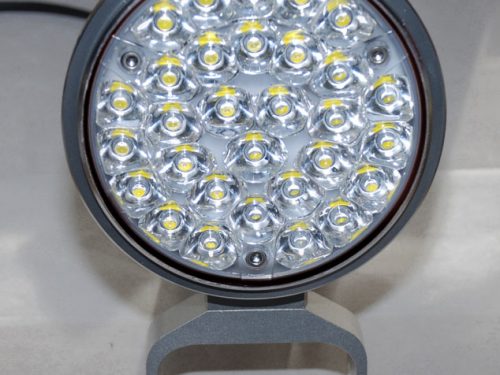

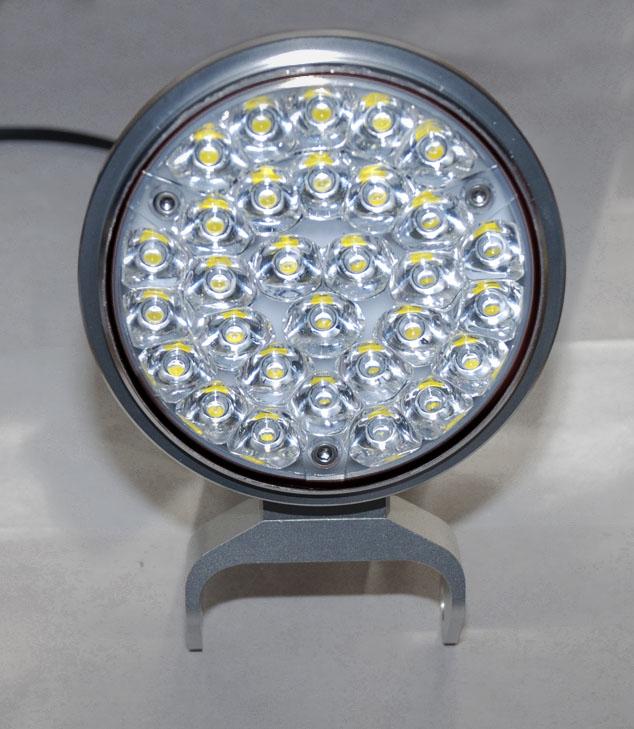

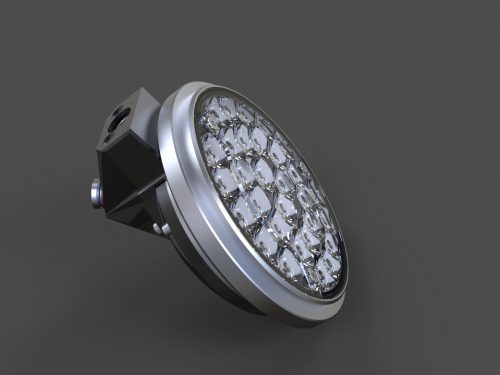

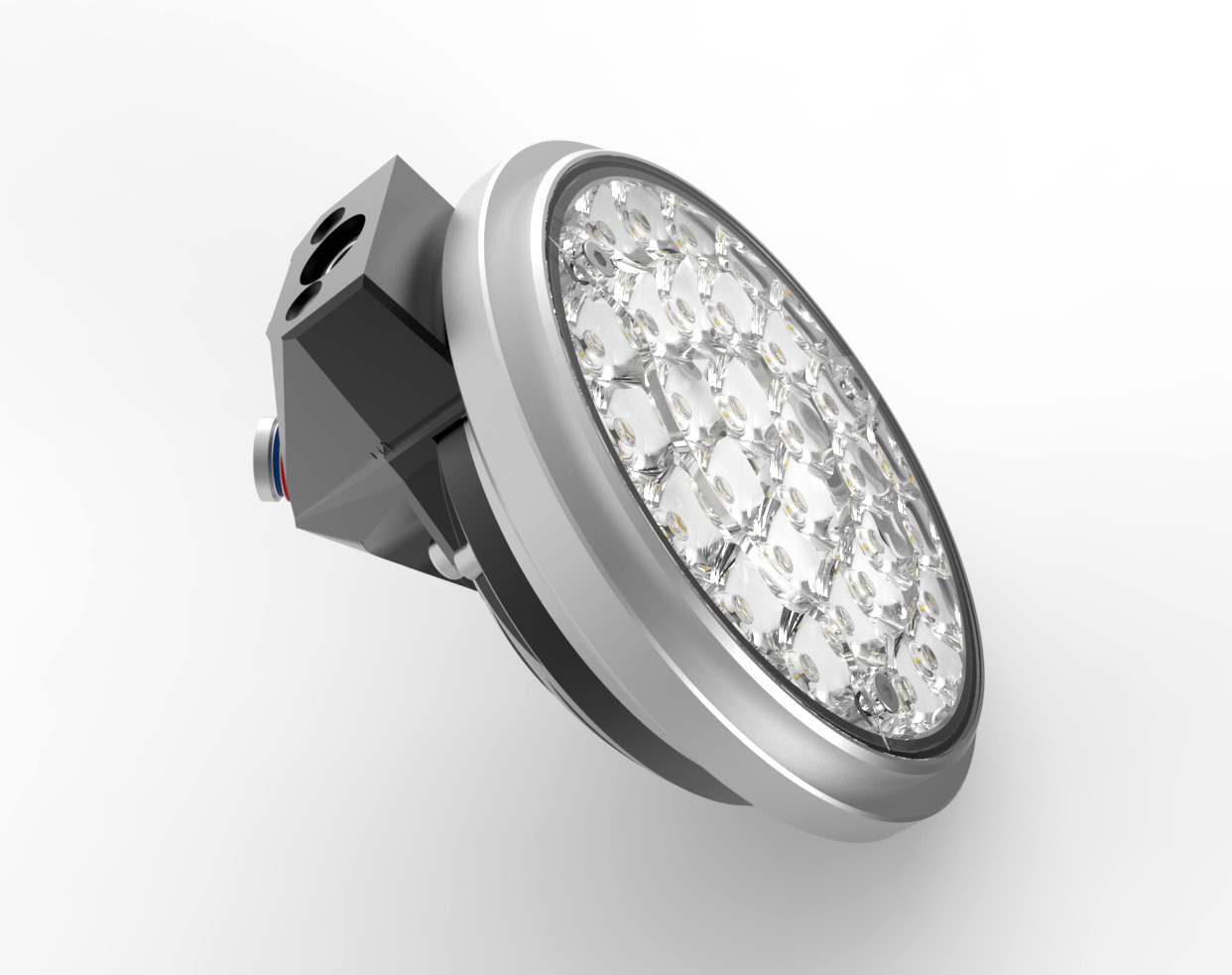

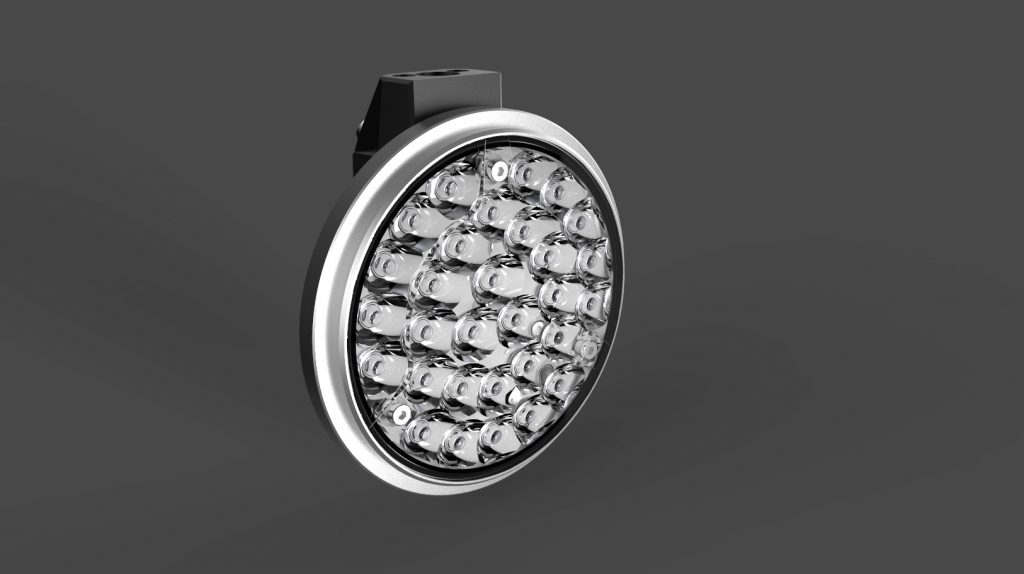

Hercules LLP

Drop-In replacement / Landing / Taxi LED light

AveoEngineering introduces the exclusive next-generation Hercules LLP™ -> Replacement for Legacy Lights. A PAR 36 drop-in with the legendary Hercules power!



Exceleron-diagram

Specification

Number of LED: 30
Input voltage: from +9 to +36 VDC
Input current: 3.2A at 28V ±10%
Output power: 90 W
Transcend voltage: 2 seconds +80V
Under-voltage lockout: 9 V DC, not more
Over-voltage lockout: 36 V DC, not less
Ambient temperature: from -40°C to +85°C
(from -40°F to +185°F)
Lens (Beam pattern):

Landing light version:
12° viewing angle - symmetrical beam

Taxi light version:
40°x 20° viewing angle - asymmetrical beam

P/N:

Hercules LLP Taxi
AVE-H30-W-001

Hercules LLP Landing
AVE-H30-W-002

Color and shade: white, 5700 - 6500 K
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: 510g / 1.124lb
Useful life: not less than 30.000,0 aircraft flight hours
Dimension: 4.39” Round x 2.557” (D = 111,5 mm, H = 64,9mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

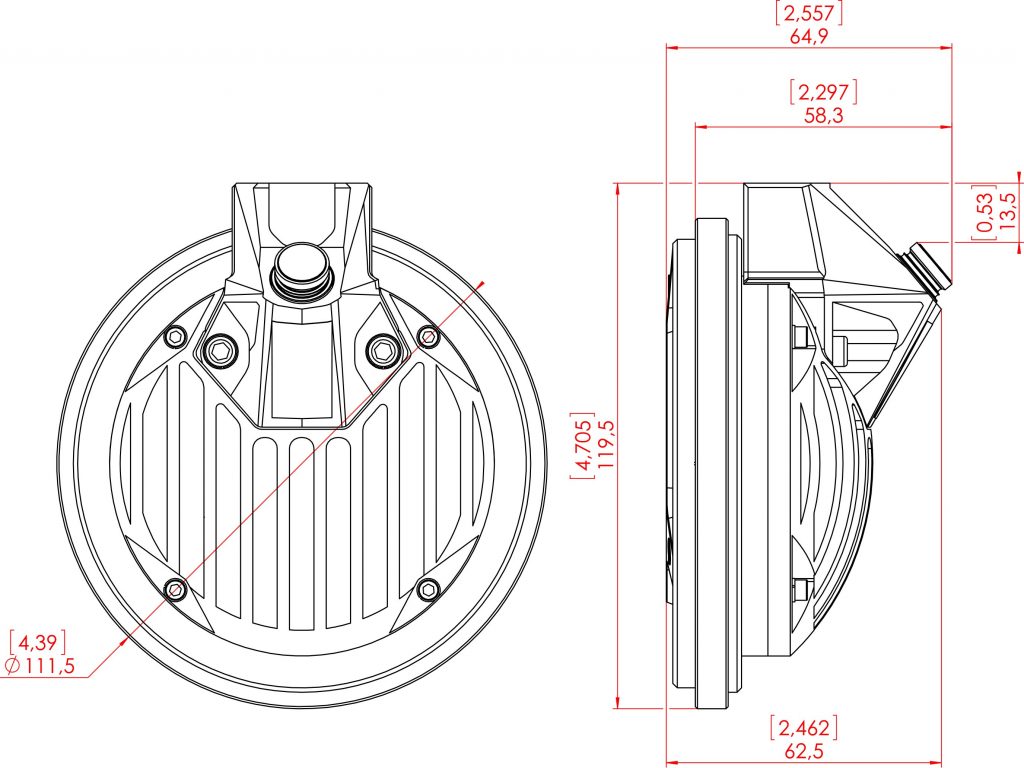

Drawing

Installation Manual

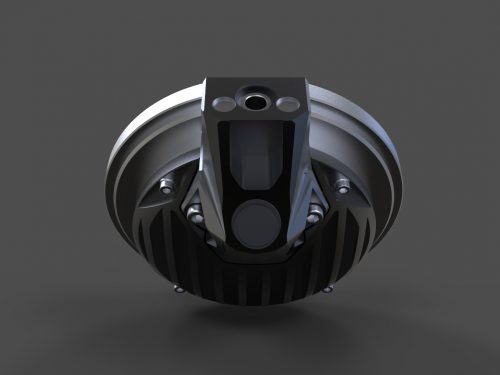

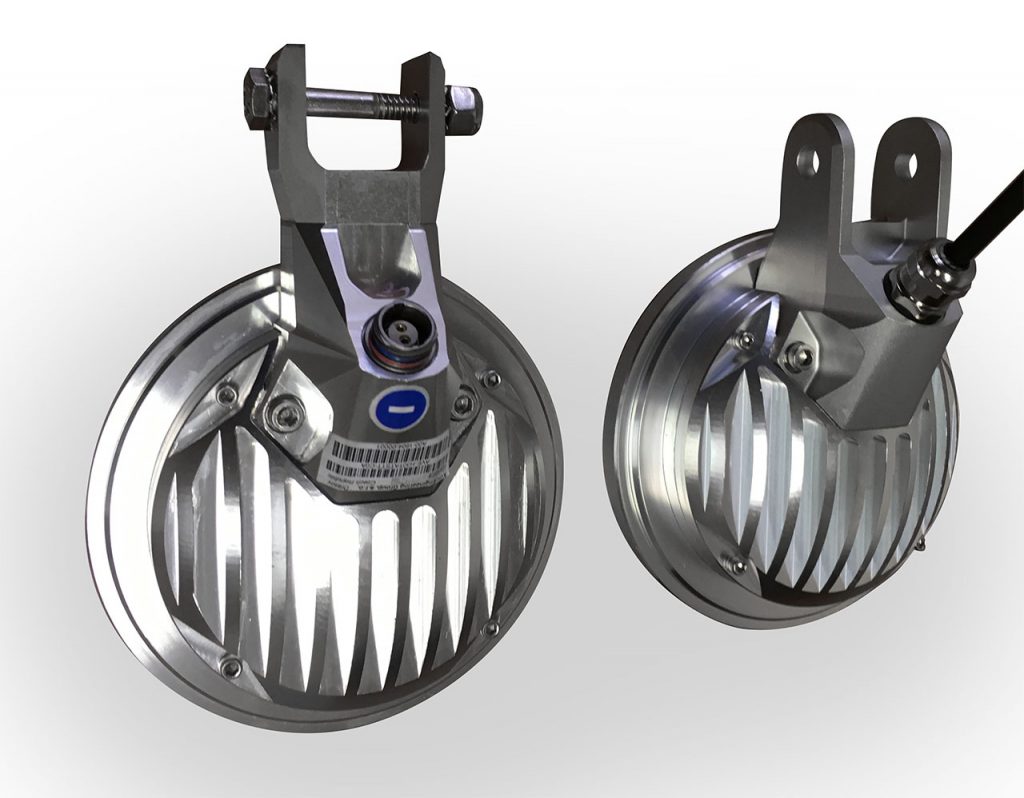

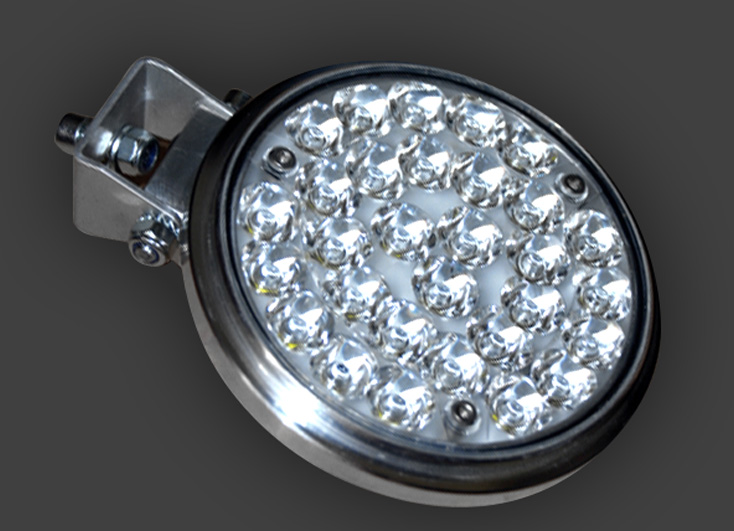

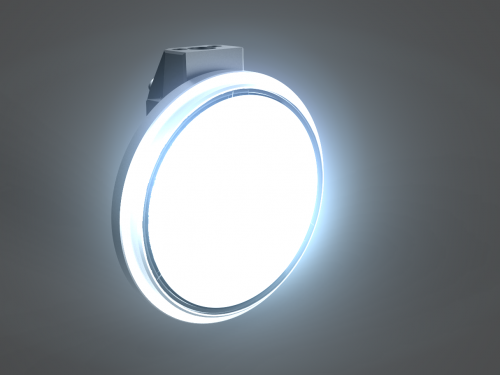

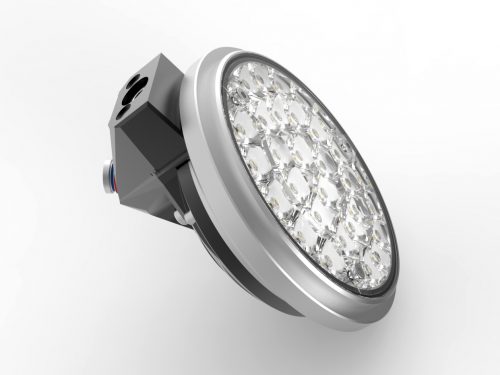

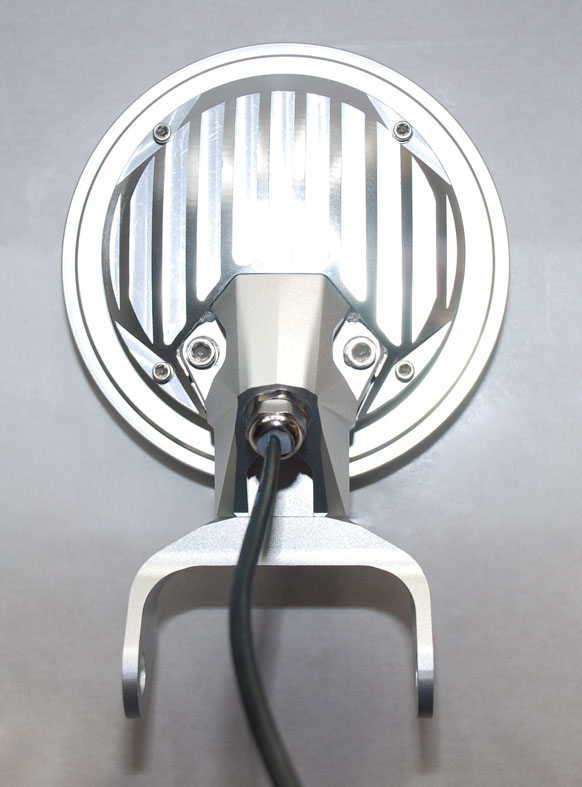

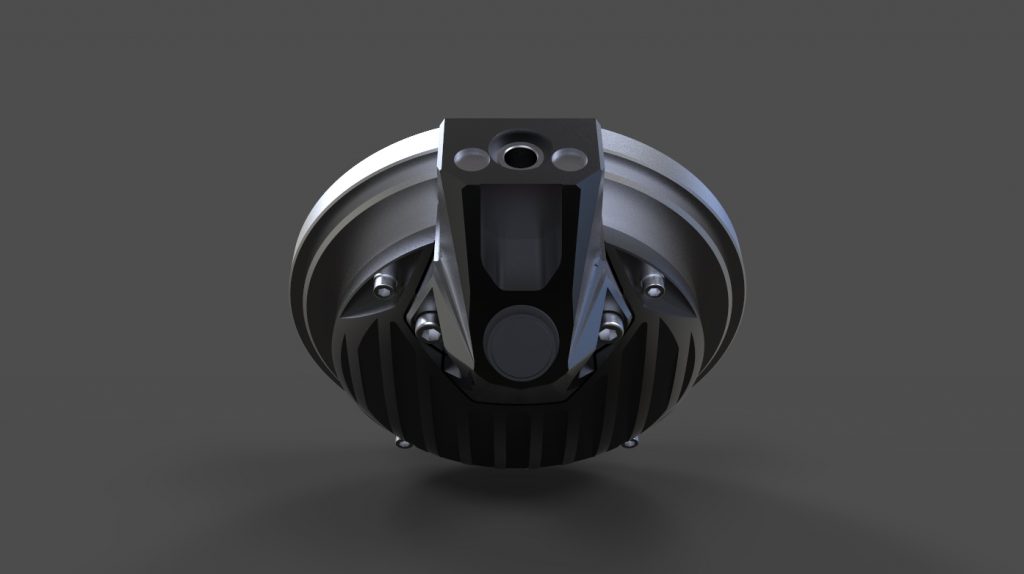

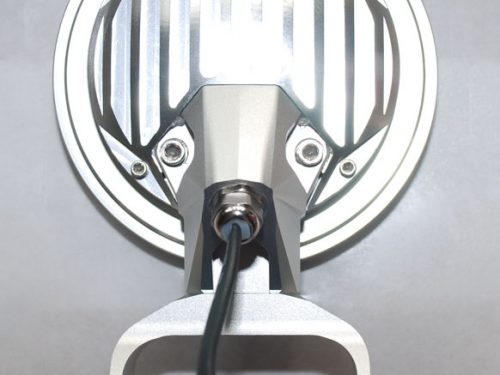

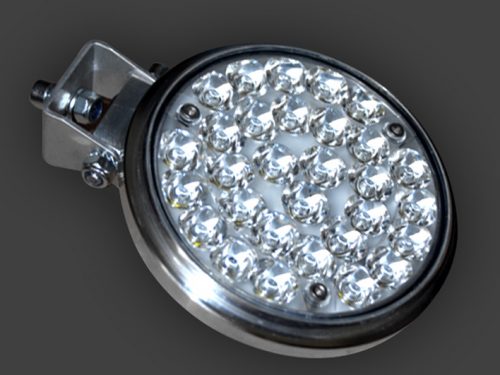

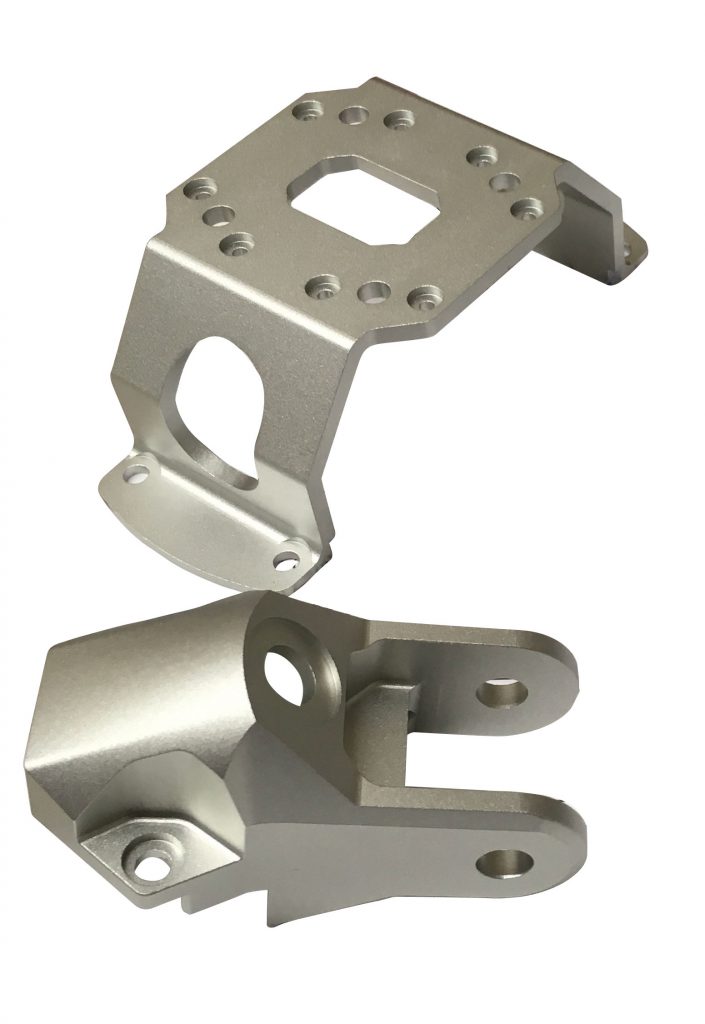

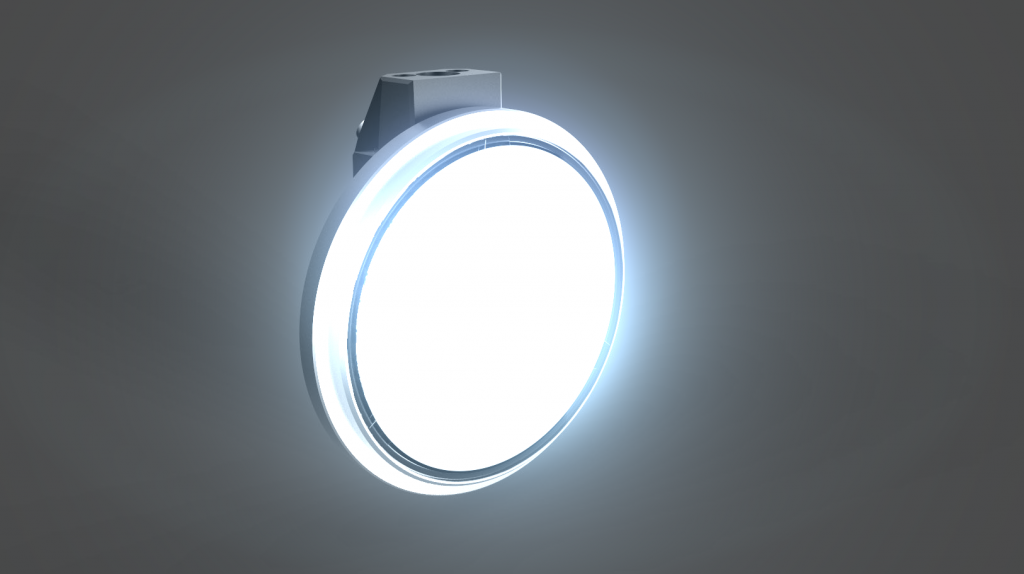

Gallery
