Hercules Lollipop

Hercules-lollipop

AveoEngineering introduces the exclusive next-generation Hercules™ Lollipop Drop-In ->Replacement for Legacy Lights. A PAR 36 drop-in with the legendary Hercules power!

Features

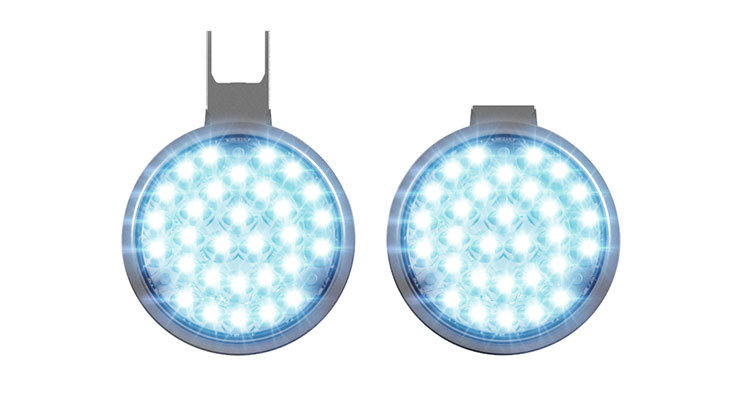

30 High brightness LEDs for LANDING or TAXI light coverage

Packed with 30 ultra high brightness CREE aviation white LEDs for LANDING or TAXI light coverage

Direct Bolt to BODY Mount

Horizontal Bolt Bracket

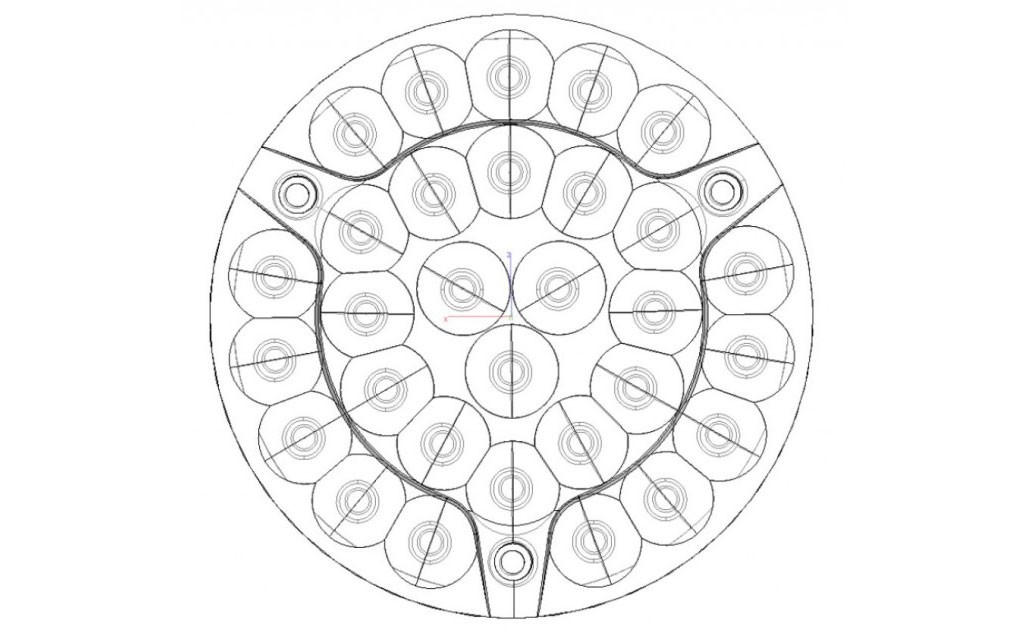

Lens with beam angle for LANDING light coverage

Lens with beam angle for TAXI light coverage

Easy to install

This light drops-in to existing PAR 36 legacy housings in seconds

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Environmentally Friendly

The Hercules™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

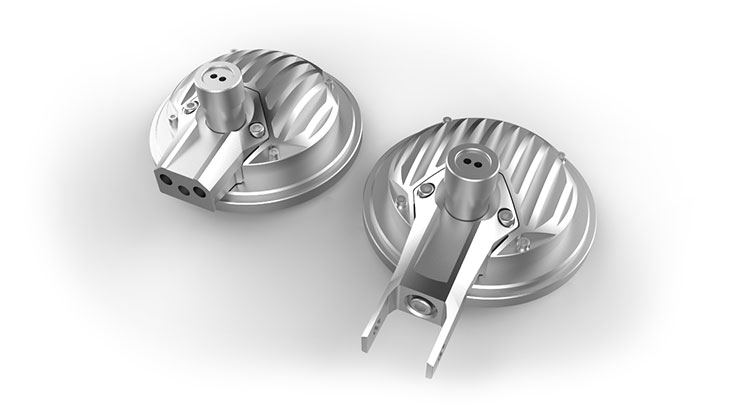

Direct bolt to body mount


Horizontal bolt bracket

Number of LED: 30
Input voltage: from +9 to +36 VDC
Input current: 3.2A at 28V ±10%
Output power:

90 W

Transcend voltage: 2 seconds +80V
Under-voltage lockout: 9 V DC, not more
Over-voltage lockout: 36 V DC, not less
Ambient temperature: from -40°C to +85°C
(from -40°F to +185°F)
Lens (Beam pattern):

Landing light version:
10° viewing angle - symmetrical beam

Taxi light version:
40° viewing angle - asymmetrical beam

Color and shade: cool white, 5000K – White
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: g / lb
Useful life: not less than 30.000,0 aircraft flight hours

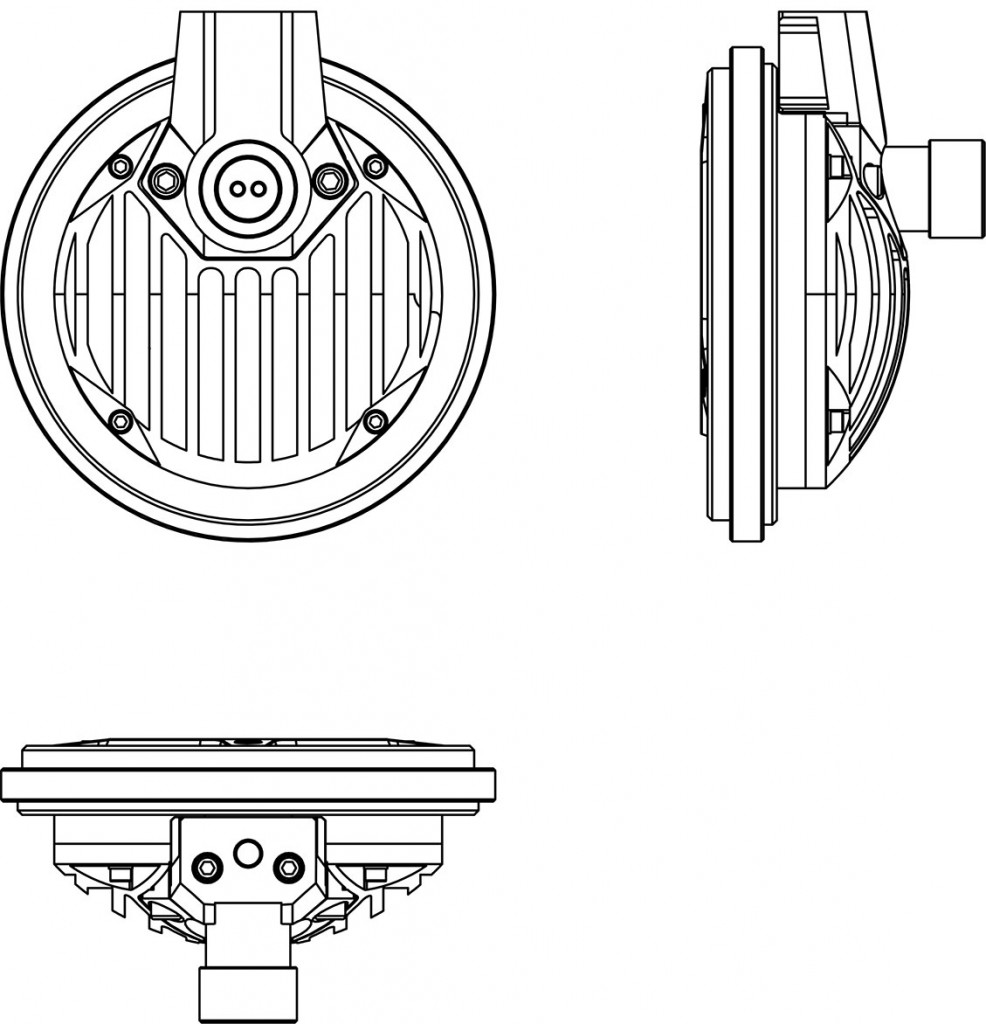

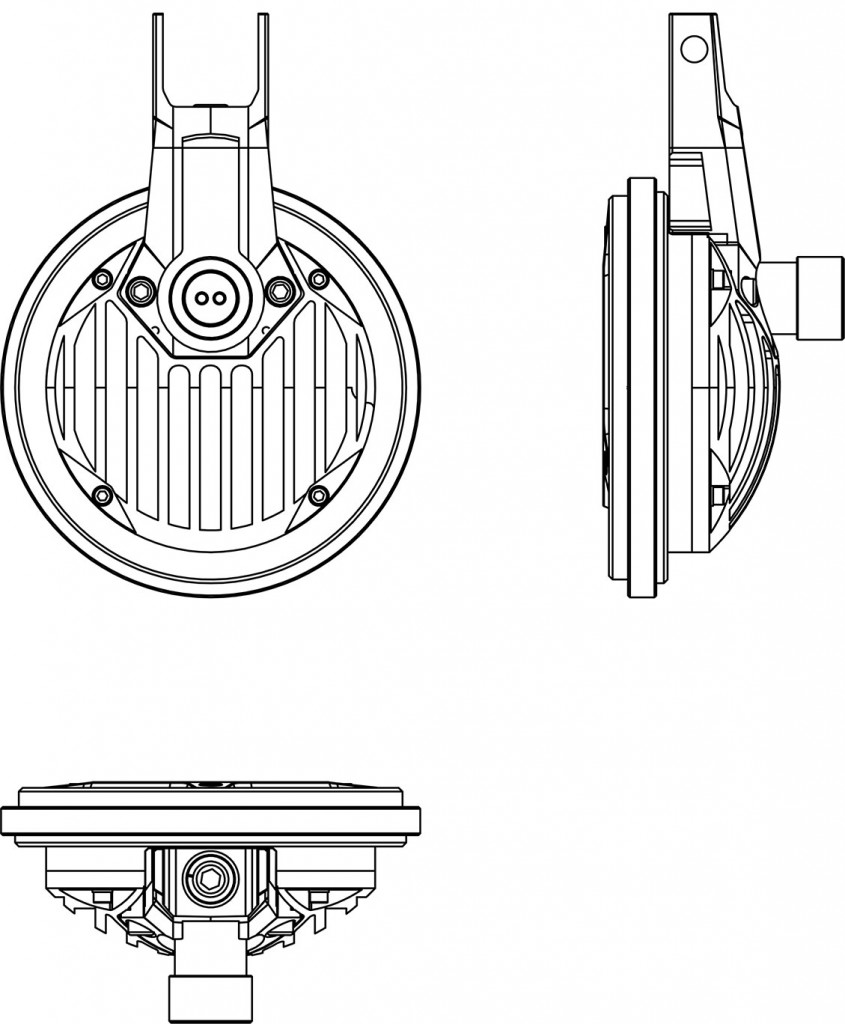

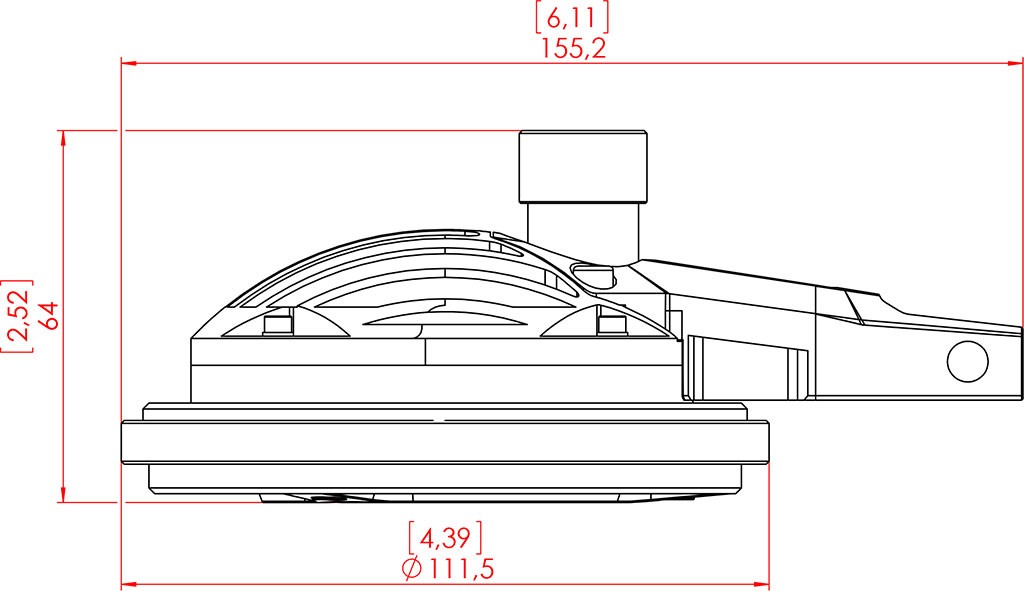

Dimension: see pictures on the left
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

Installation Manual

Coming soon

Patents Pending Worldwide
