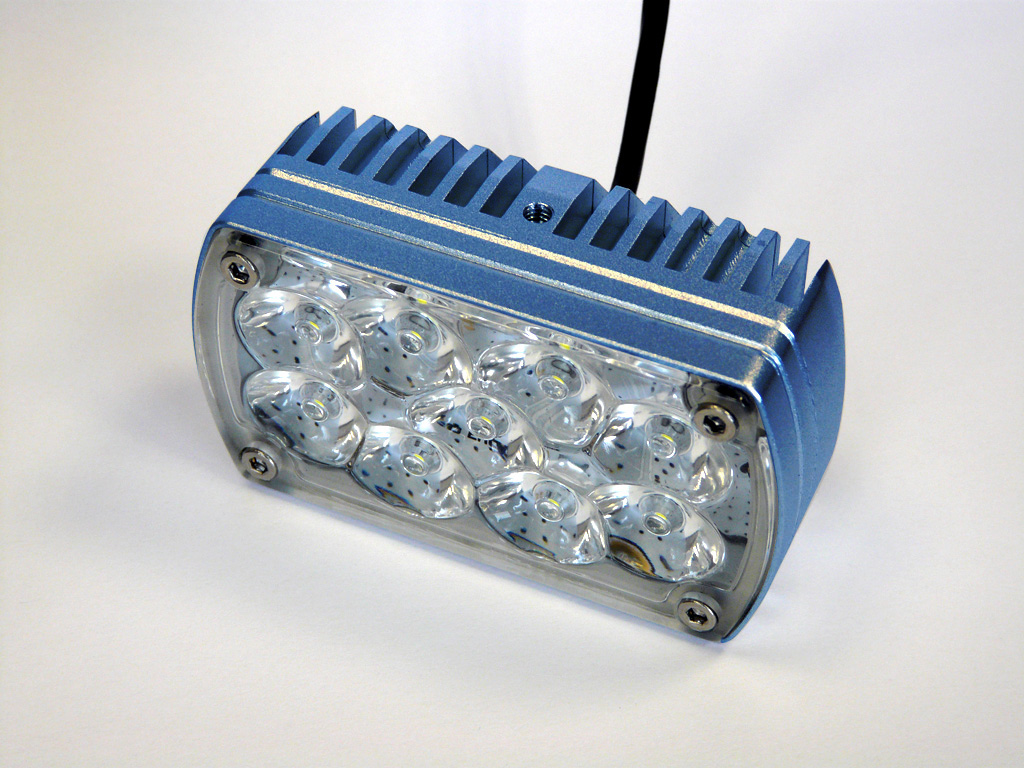

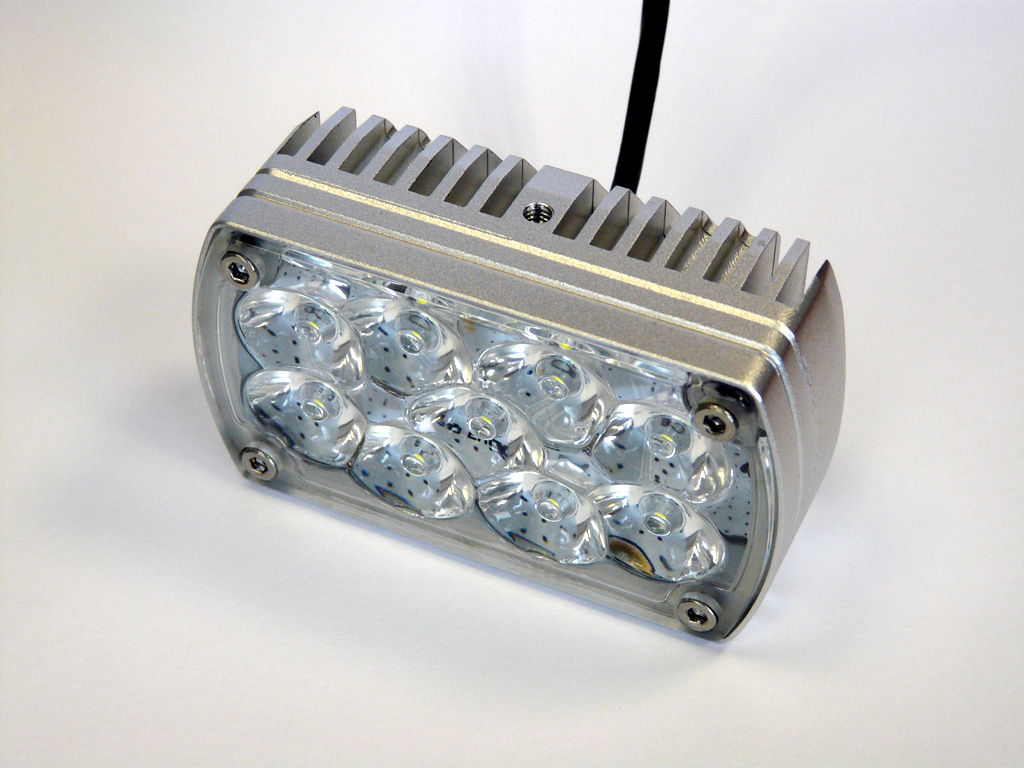

Exceleron DayLite

Landing / Taxi LED light

The new Exceleron DayLite™ is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics, our unmatched power and led management circuitry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Exceleron-diagram

Specification

Dimensions (mm): 83,3 mm x 47,2 mm x 37 mm
Dimensions (inches): 3.280“ x 1.860“ x 1.457“
Weight: 220g / 7.76 oz
Operating Voltage Range: 9 – 18 VDC
Input Current (@14V): 1.5 A (+/-5%)
Output Power: 18 W
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: YES
Taxi Lens – Viewing Angle: 40° x 20°
Landing Lens – Viewing Angle: 12°
Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES

Drawing

Installation Manual

Gallery
