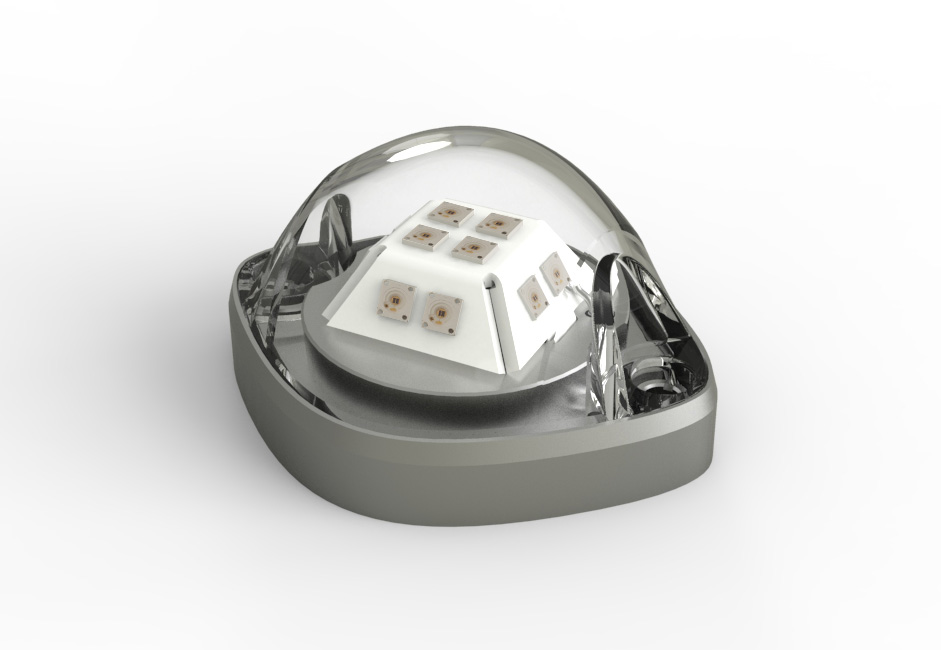

MiniMax TS

MiniMax TS - anti-collision light

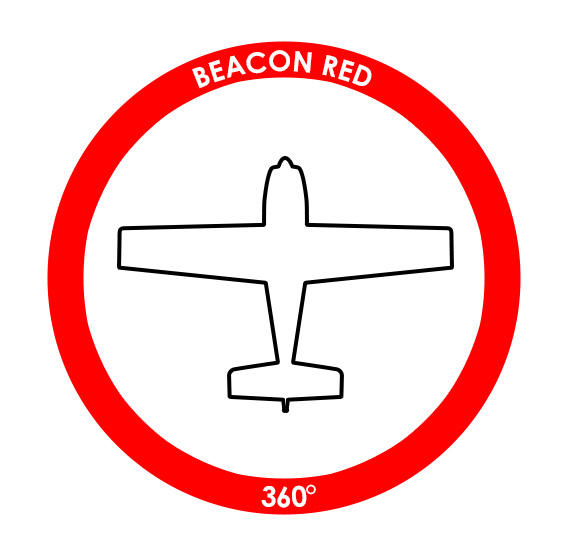

Beacon LED light (Steady and Strobe) – Red or White

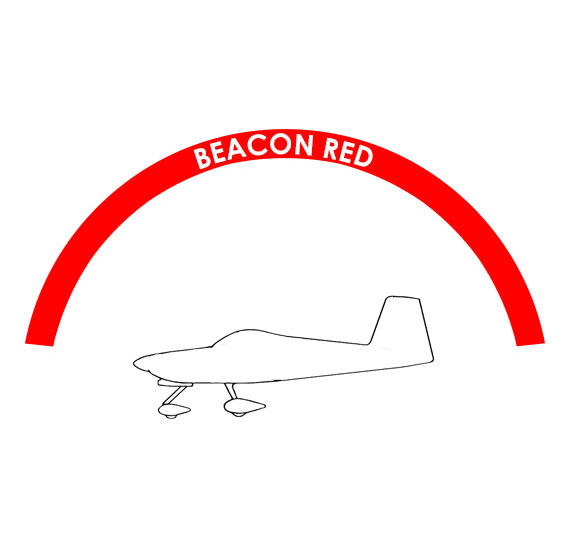

Developed originally at the request of the world’s leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax is a compact powerhouse of hemispheric light. It is also a great anti-collision light to use on upper and lower fuselage in combination with AveoFlash wing lights due to its incredibly small footprint.

MiniMax TS™ comes in either  red  or  white  color.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Specification

Dimensions (mm): 56 x 45 x 30
Dimensions (inches): 2.19” x 1.77” x 1.18"
Weight: 40 g / 1.411 oz
Transient voltage: 60V
Under-voltage lockout: 9V, not more
Over-voltage lockout: 36V, not less
Flash Rate: 100/50 + 50/50 + 50/950(mS)
Ambient Temperature: from -55°C to +75°C
from -67°F to +167°F
Overheat Protection: Yes (+85°C / +185°F)
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
MiniMax TS – RED – PN: AVE-PMMR-12A Mod(1)
Output current:     - strobe
                               - steady
0.6A /LED
0.1A /LED
Output power:       - strobe
                               - steady
16.6W
2.7W
Input power:          - strobe
                               - steady
19.6W @28V, 20.7W @14V, 17.6W @9V
3.1W @28V, 2.8W @14V, 2.8W @9V
Input current:        - strobe
                               - steady
0.7A @28V, 1.48A @14V, 1.95A @9V
0.11A @28V, 0.2A @14V, 0.31A @9V
MiniMax TS – WHITE – PN: AVE-PMMW-12A Mod(1)
Output current:     - strobe
                               - steady
0.6A /LED
0.1A /LED
Output power:       - strobe
                               - steady
21.2W
3.4W
Input power:          - strobe
                               - steady
26.6W @28V, 28.5W @14V, 28.1W @9V
4.8W @28V, 4.2W @14V, 4.3W @9V
Input current:        - strobe
                               - steady
0.93A @28V, 2.04A @14V, 3.12A @9V
0.17A @28V, 0.3A @14V, 0.48A @9V

Drawing

Installation Manual
