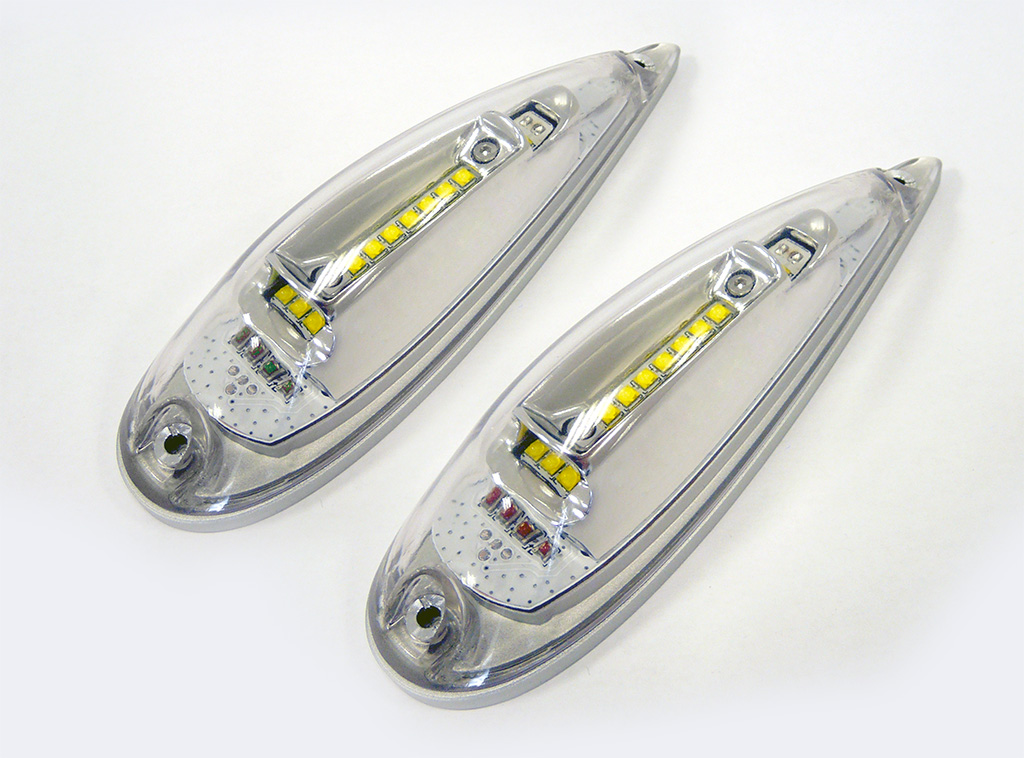

PowerBurst DayLite

Navigation / Position / Strobe LED light

At only 26 millimeters in height (1.024 inch) the new PowerBurst™ DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

nav-pos-strobe-daylite

Specification

Dimensions (mm): 115 mm x 33 mm x 26 mm
Dimensions (inches): 4.547” x 1.302” x 1.024”
Weight (g): 70 g
Weight (oz): 2.47 oz
Operating Voltage Range: 9 – 18 VDC
Input Current – Position / Nav - green (@14V): 0.28 A
Input Current – Position / Nav - red (@14V): 0.23 A
Input Current – Strobe (@14V): 2 A peak
Output Power - Position / Nav - green: 3.3 W
Output Power - Position / Nav - red: 2.5 W
Output Power - Strobe: 24 W peak
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M3, stainless steel recommended. Length depends upon placement location on wing tips.
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: NO
Reverse Polarity Protection: YES
Transient Voltage: N/A
Under-Voltage Protection (lockout): NO (N/A)
Over-Voltage Protection (lockout): NO (N/A)
Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES

Drawing

Installation Manual

Gallery
