The PosiStrobe CP™ is a new generation rudder white position and strobe light. It fits almost all the standard rudder mounts of aircraft and also features an optional aluminum adapter mount plate pictured in the installation page. An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any certified aircraft requiring a rear coverage light due to wingtip light coverage zone limits. The PosiStrobe series is the most imitated and copied light by our competitors, but there is ONLY one PosiStrobe™, don’t be fooled by competitive “clones”, we were the first and we are the only ones with our exclusive circuitry, advanced optics and reflectors and candela performance.

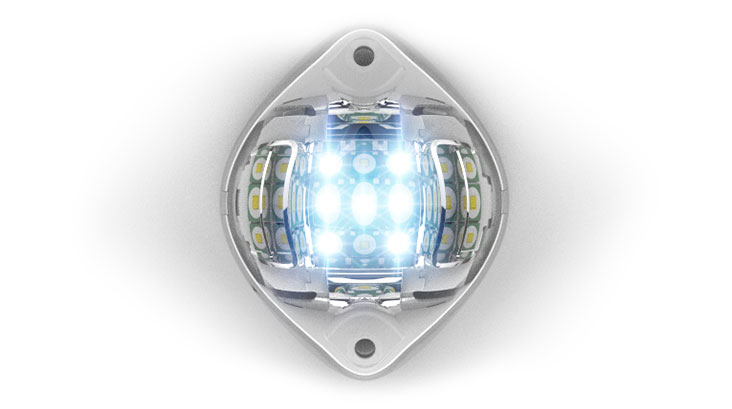

7 High brightness LEDs for POSITION light coverage (140°)
Packed with 7 ultra high brightness CREE LEDs for POSITION mode in white color that are the industry state-of-the-art in performance and output lumens, the PosiStrobes feature a significantly lower footprint than competitor lights.

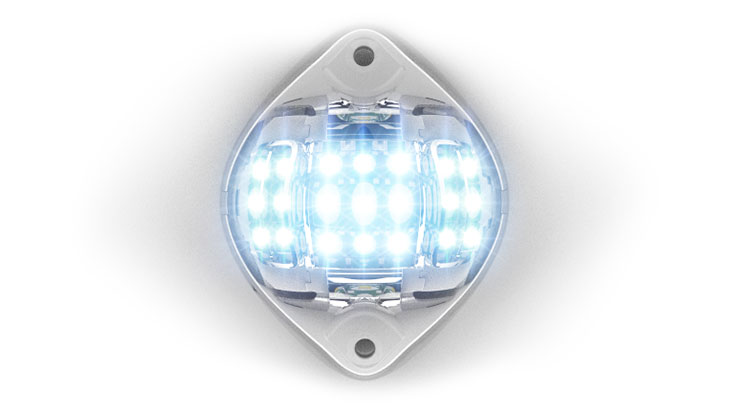

21 High brightness LEDs for STROBE light coverage (180°)
Packed with 21 ultra high brightness CREE aviation white LEDs for STROBE mode.

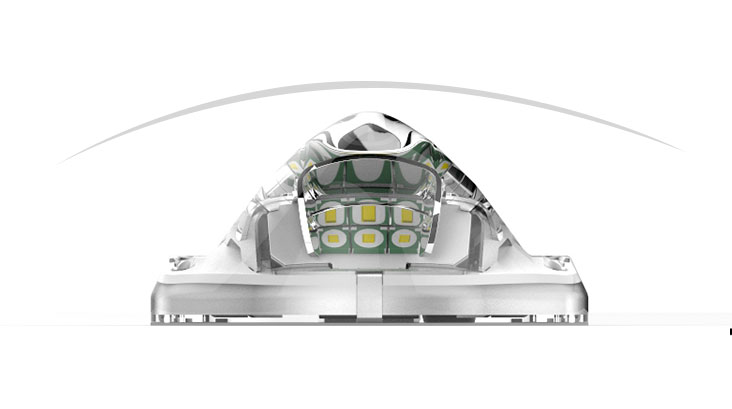

Low drag form factor & design
An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any certified aircraft requiring a rear coverage light due to wingtip light coverage zone limits.
No separate strobe power box needed
Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 9 to 32 volt input range too!
Waterproof / Shockproof / Dust-proof
All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

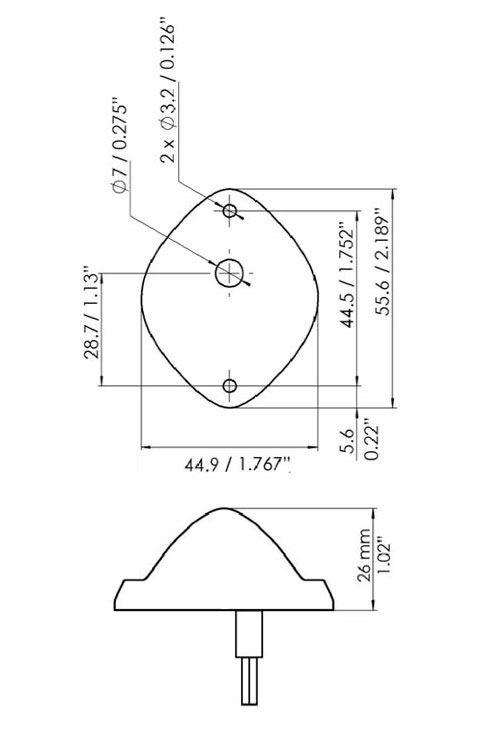

|Dimensions (mm):||56 mm x 44.9 mm x 26 mm|
|Dimensions (inches):||2.19” x 1.76” x 1.02”|
|Weight (g):||50 g|
|Weight (oz):||1.76 oz|
|Operating Voltage Range:||9 – 32 Vdc|
|Power – position (peak Watts):||4.2 W|
|Power – strobe (peak Watts):||6.5 W (32.5 W peak)|
|Current – position (@12V):||0.35 A|
|Current – strobe (@12V):||0.54 A (2.7 A peak)|
|Repetition Rate of Strobe:||50 cycles per minute|
|Recommended size of mounting screw:||M3|

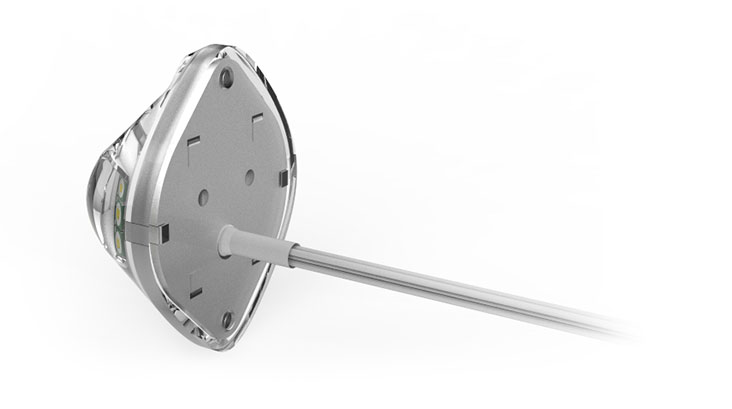

|Supplied cable:||Wire Type is AWG 20 / 0.812 mm
Lenght of pigtail wires is 7 inches / 177,8 mm
|Reverse polarity protected:||YES|
|Over voltage protected:||YES|
|Exceed requirements of:||- TSO C30c C96a
- SAE AS 8037 and AS8017a
