RedBaron Combo HISL Galactica

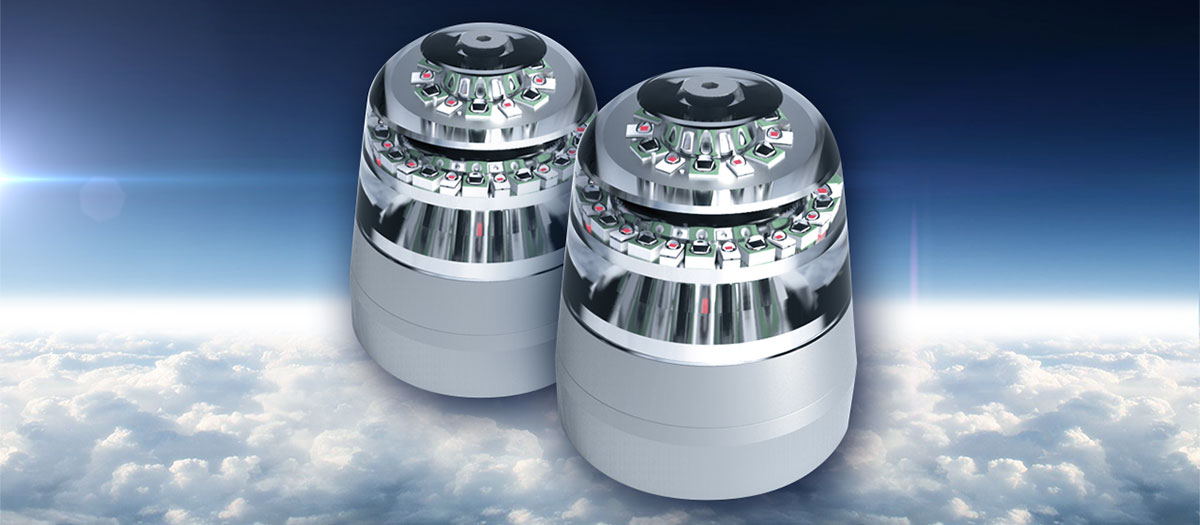

HISL-beforeHISL-after

TSO Certified

The incredible and unmatched performance of the RedBaron Combo dual-color HISL LED red and white anti-collision light makes it not only the world’s brightest but also the leader in all DO-160 environmental standards compliance.

Features

30 WHITE High brightness LEDs for ANTICOLLISION 360° coverage + 180° hemispheric coverage

The RedBaron Combo HISL™ dual mode version incorporates 30 of the brightest white LEDs available in the world today, with chromaticity and intensity compliant to all international aviation and safety standards. The optical performance is incredible, and these are the ideal replacement unit for any anticollision light system in existence and once again no external heavy power supply strobe boxes!

30 RED High brightness LEDs for ANTICOLLISION 360° coverage + 180° hemispheric coverage

The RedBaron Combo HISL™ dual mode version incorporates 30 of the brightest red LEDs available in the world today, with chromaticity and intensity compliant to all international aviation and safety standards. The optical performance is incredible, and these are the ideal replacement unit for any anticollision light system in existenceand once again no external heavy power supply strobe boxes!

Available in RED and WHITE led colors (custom order NVIS/IR)

This light features highly polished reflectors and is available in either red and white, custom order NVIS/IR.

RedBaron Combo HISL can be only operated in EITHER RED or WHITE MODE, not simultaneously or it will damage the unit.

No separate strobe power box needed

Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 18 to 36 volt input range too!

TSO Certified

RedBaron Combo Even Passes Zone 1B Direct Lightning Tests of DO-160G!

Yup, the toughest lightning test is no match for the RedBaron Combo, as you can see, the point of entry is obvious, but the light still operates normally!

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Dimensions (mm): 66 mm x 66 mm x 74.7 mm
Dimensions (inches): 2.6” x 2.6” x 2.94”
Light assembly weight: 0.333 kg / 0.734 lb
Overall assembly weight (with Ferrite chokes): 0.431 kg / 0.950 lb
Operating Voltage Range: 18 – 36V DC
Power – white strobe (Watts): 112 W (28V/4A) in pulse
Power – red strobe (Watts): 56 W (28V/2A) in pulse
Repetition Rate of Strobe: 48 cycles per minute
Reverse polarity protected YES
Over voltage protected YES
Waterproof YES
Vibration-proof YES
Shock-proof YES
Dust-proof YES

Installation Manual

Approvals
