RedBaron XP Galactica

RedBaronXP-beforeRedBaronXP-after

TSO Certified

The RedBaron series of anticollision lights were designed for certified aircraft requirements. They represent the cutting edge in optics design and the use of LED arrays that have been optimized for coverage patterns. This light features highly polished reflectors and is available in either red, white or custom order NVIS/IR.

Features

40 High brightness LEDs for ANTICOLLISION 360° coverage

The RedBaron XP Galactica™ version incorporates 40 of the brightest LEDs available in the world today, with chromacity and intensity compliant to all international aviation and safety standards. The optical performance is incredible, and these are the ideal replacement unit for any anticollision light system in existence. Unlike our competitors we continually introduce upgraded versions because of the rapidly changing LED technology, so you will never see old LEDs in Aveo lights as you do with other suppliers who are still using low efficiency, low output, less reliable LEDs from 5 to 7 years ago!

Available in RED or WHITE led colors (custom order NVIS/IR)

This light features highly polished reflectors and is available in either red, white or custom order NVIS/IR.

Low drag form factor & design

Lowest drag coefficient in the industry as proven in CFD analysis on the University of Michigan Cray Computer cluster.

No separate strobe power box needed

Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 9 to 36 volt input range too!

TSO Certified

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

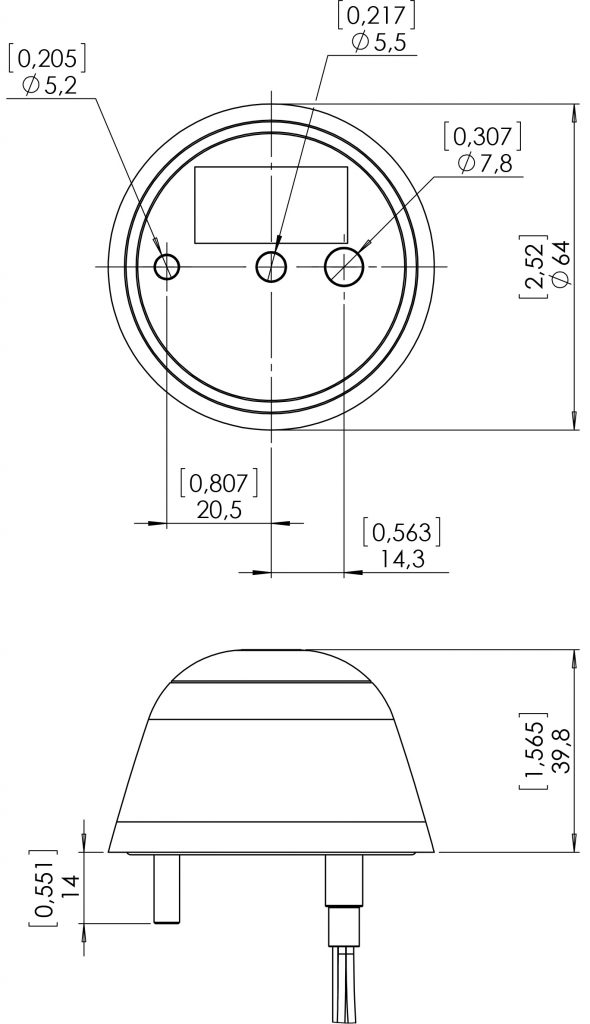

Dimensions (mm): 64 mm x 64 mm x 40 mm
Dimensions (inches): 2.52” x 2.52” x 1.57”
Weight (g): 150 g
Weight (oz): 5.29 oz
Operating Voltage Range: 9 – 36 Vdc
PERFORMANCE (WHITE):
Output current at 9..18VDC:0.4-0.6A/LED strobe
Output current at 18...36VDC:0.6A/LED strobe
Output power at 9..18VDC:52W (78W) in pulse
Output power at 18...36VDC: 78W in pulse
Input power at 12VDC:59.4W in pulse
Input power at 28VDC:87W in pulse
PERFORMANCE (RED):
Output current at 9..18VDC:0.4-0.6A/LED strobe
Output current at 18...36VDC:0.6A/LED strobe
Output power at 9..18VDC:35W (53W) in pulse
Output power at 18...36VDC:53W in pulse
Input power at 12VDC:59.4W in pulse
Input power at 24VDC:59.4W in pulse
VOLTAGE PROTECTION:
Transcend voltage: 60V
Under-voltage lockout:9V not more
Over-voltage lockout:36V not Less
Exceed requirements of:- ETSO C96a
- SAE AS8017a
- DO-160
Repetition Rate of Strobe: 48 cycles per minute
Recommended size of mounting screw: M5x45mm (DIN912) or equivalent
(Torque 3.0 Nm [2lb ft])
Waterproof YES
Vibration-proof YES
Shock-proof YES
Dust-proof YES

Installation Manual

Approvals

RedBaronXP-ETSO
FAA
