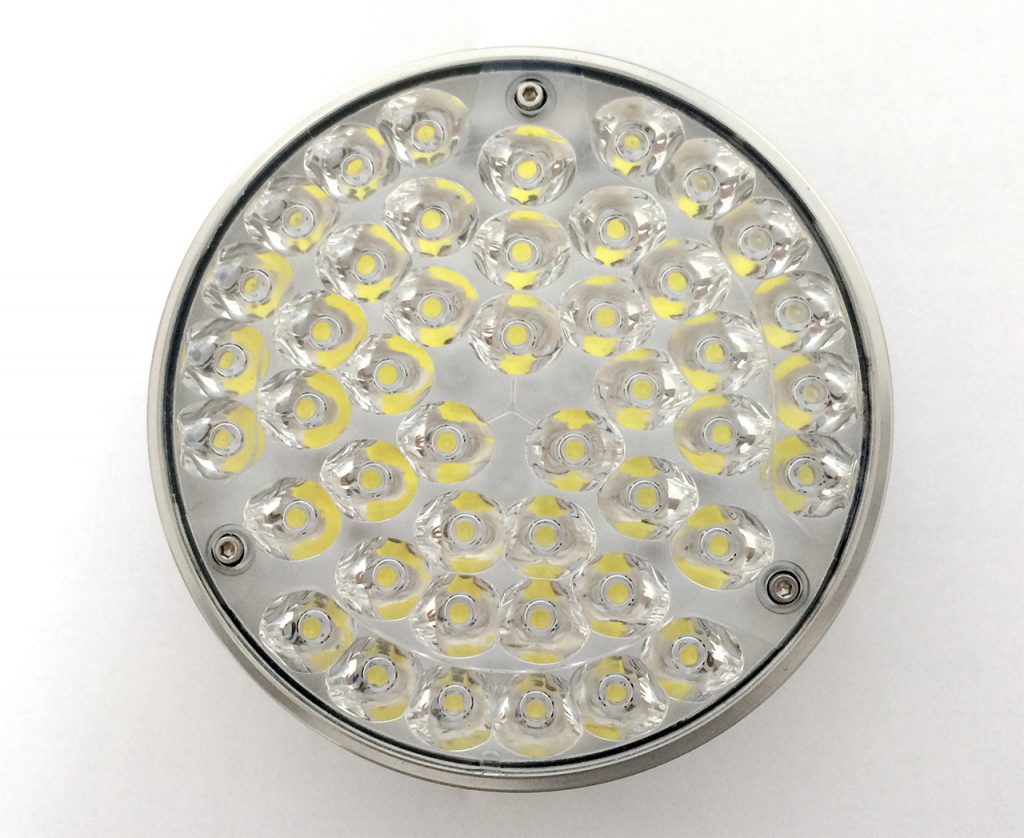

Samson Drop-In – Landing or Taxi Light

Samson-DropIn-beforeSamson-DropIn-after

AveoEngineering introduces the exclusive next-generation Samson™ Drop-In -> Replacement for Legacy Lights. A PAR 46 drop-in with the legendary Samson power!

Features

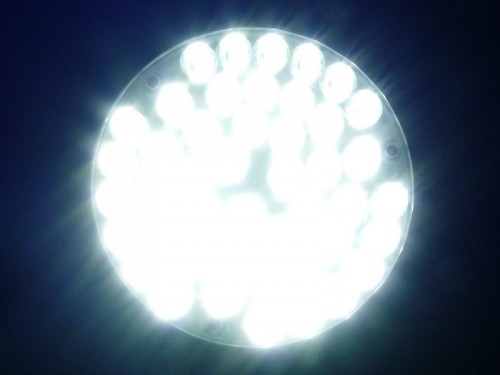

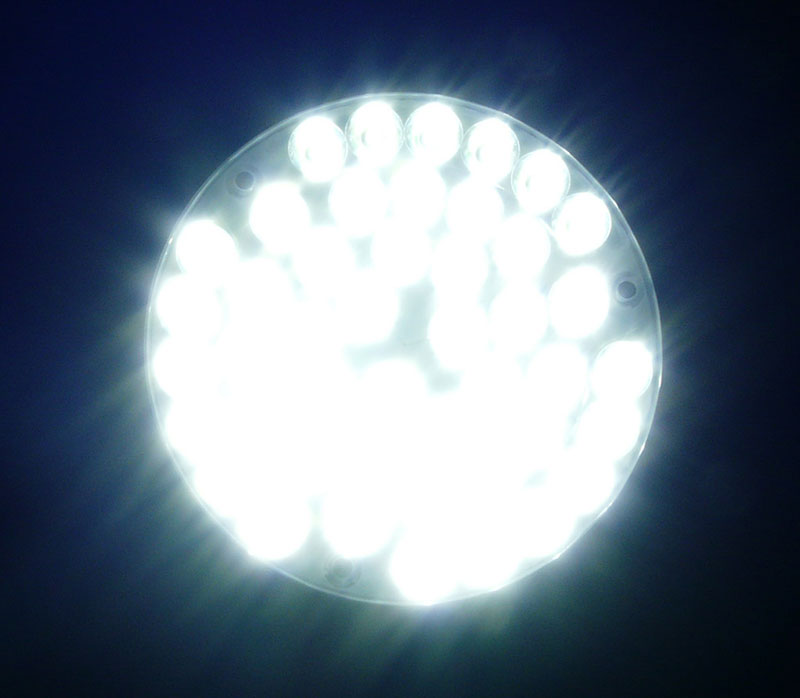

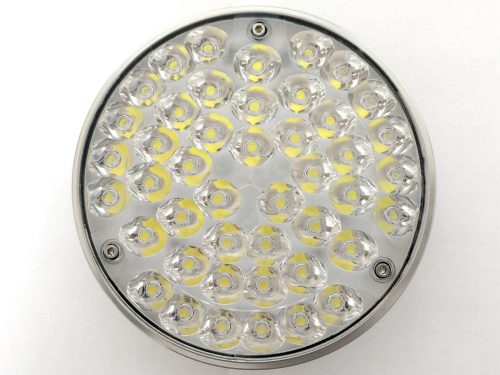

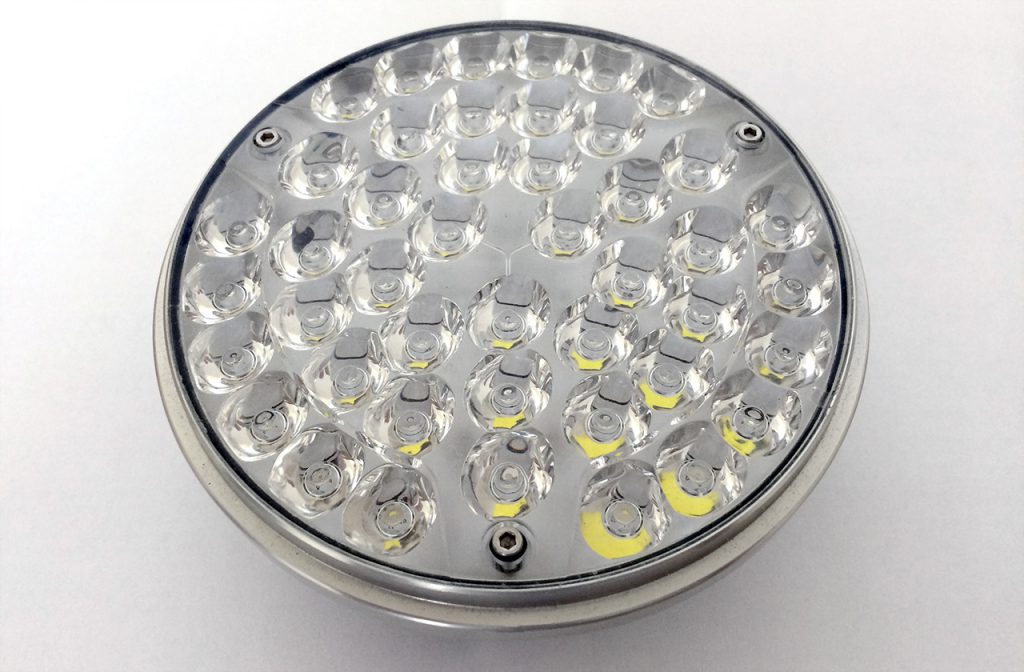

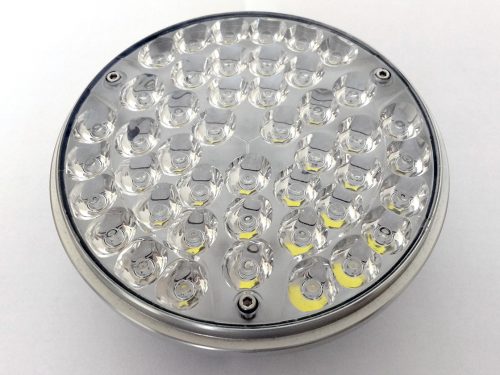

45 High brightness LEDs for LANDING or TAXI light coverage

Packed with 45 ultra high brightness CREE aviation white LEDs for LANDING or TAXI light coverage.

Easy to install / VAC or VDC

This light drops-in to existing PAR 46 legacy housings in seconds.

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Environmentally Friendly

The Samson™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

DC version

Number of LED: 45
Input voltage: from +18 to +36 V DC
Output current per LED: 1.25A
Output power: 168W
Input power: 200W +/- 5%
Input current: 7.15A @28V +/- 5%
11A @18V +/- 5%
5.5A @36V +/- 5%
Voltage protection: 2 seconds +80V
Under-voltage lockout: 18V, not more
Over-voltage lockout: 36V, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Low temperature slope start: -55°C (-67°F)
Intensity: 328.000 cd peak (see installation manual)
Beam Pattern: a. Landing: 12°
b. Taxi: 40° x 20°
Color and shade: cool white, color shade 1C0
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: less than 1.93 pounds (874 g)
Useful life: not less than 30.000,0 aircraft flight hours

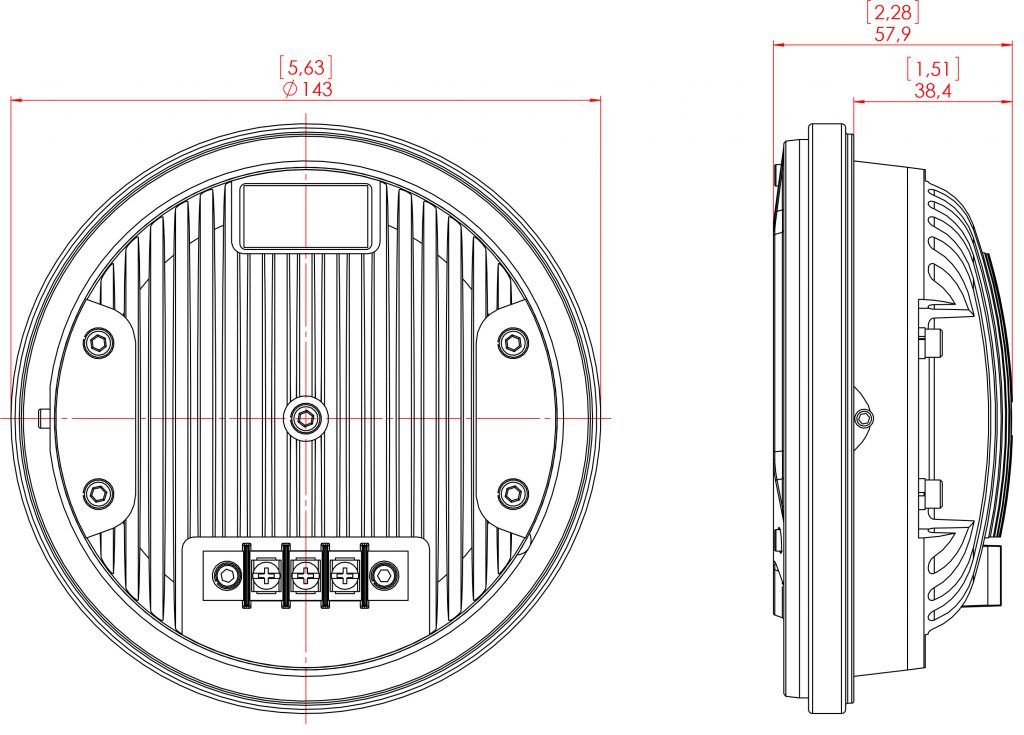

Dimension: 5.63” Round x 2.3” (D = 143mm, H = 58.4 mm)

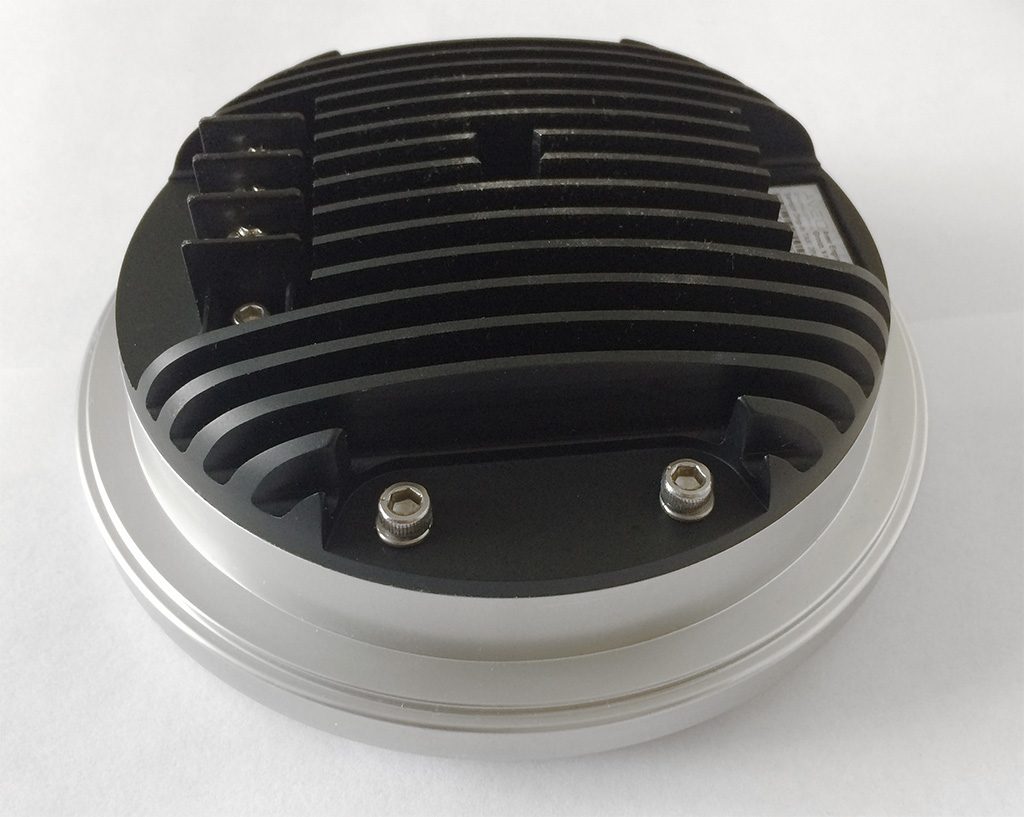

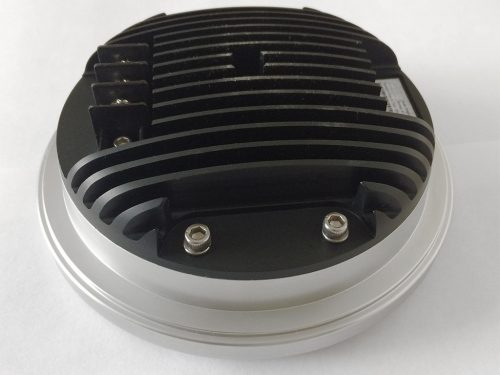

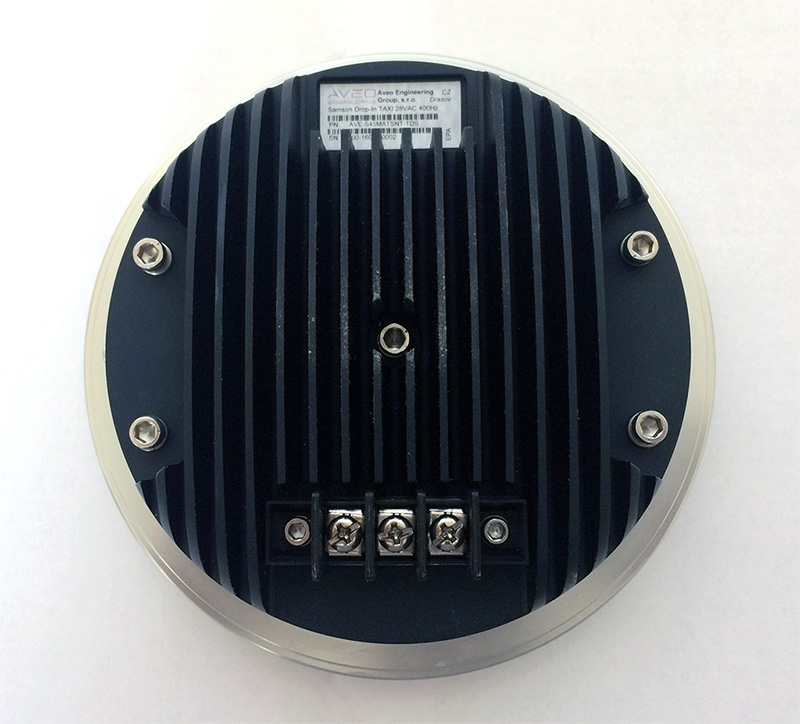

Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

AC version

Number of LED: 45
Input voltage: from +27 to +29 V AC @ 400Hz
Output current per LED: 0.85A
Output power: 113W
Input power: 147.5W +/- 5%
Voltage protection: 2 seconds +40V AC
Under-voltage lockout: 26VAC, not more
Over-voltage lockout: 30VAC, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Low temperature slope start: -55°C (-67°F)
Intensity: 240.000 cd peak (see installation manual)
Beam Pattern: a. Landing: 12°
b. Taxi: 40° x 20°
Color and shade: cool white, color shade 1C0
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: less than 1.93 pounds (874 g)
Useful life: not less than 30.000,0 aircraft flight hours
Dimension: 5.63” Round x 2.3” (D = 143mm, H = 58.4 mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

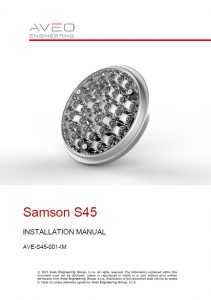

Installation Manual
