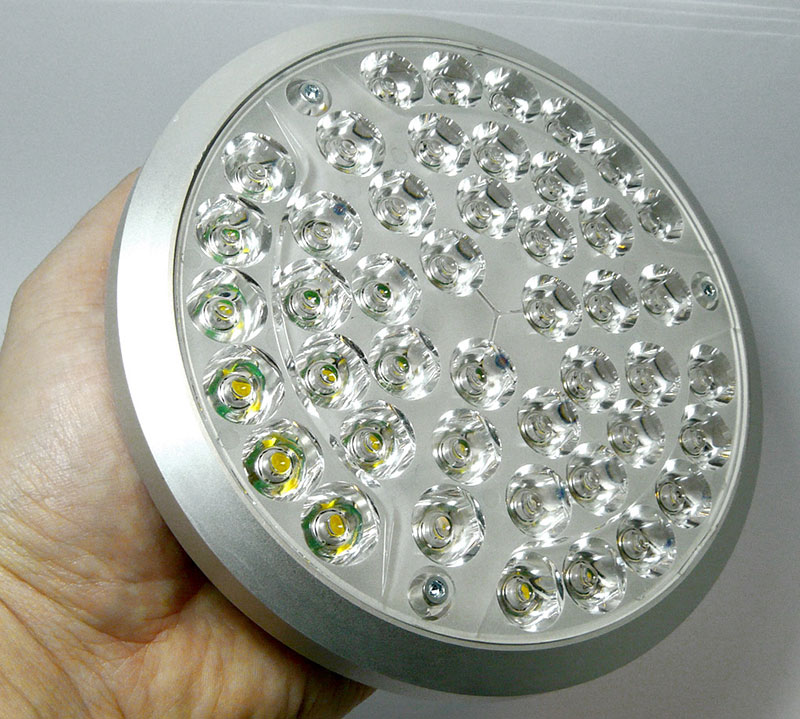

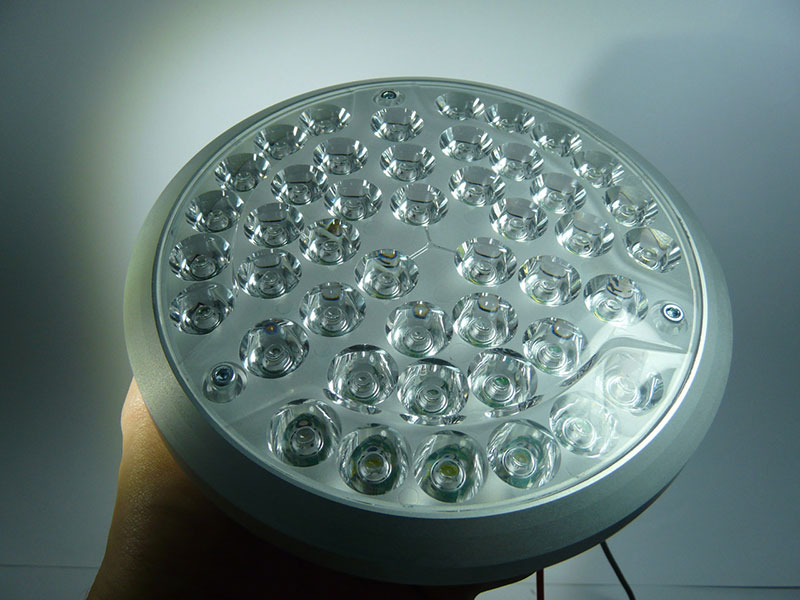

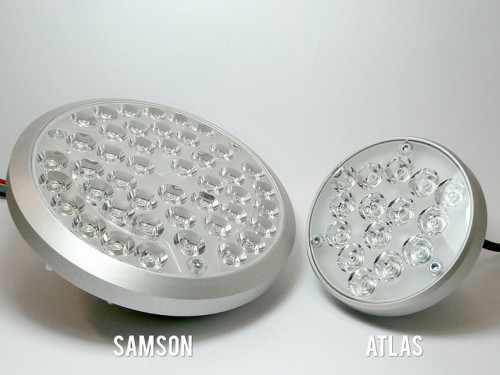

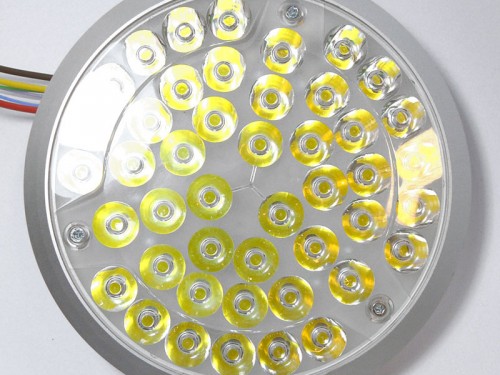

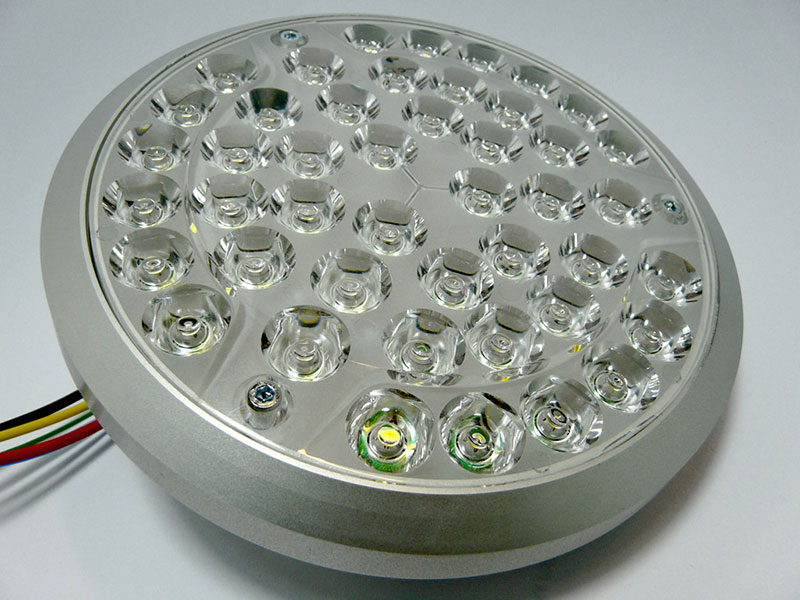

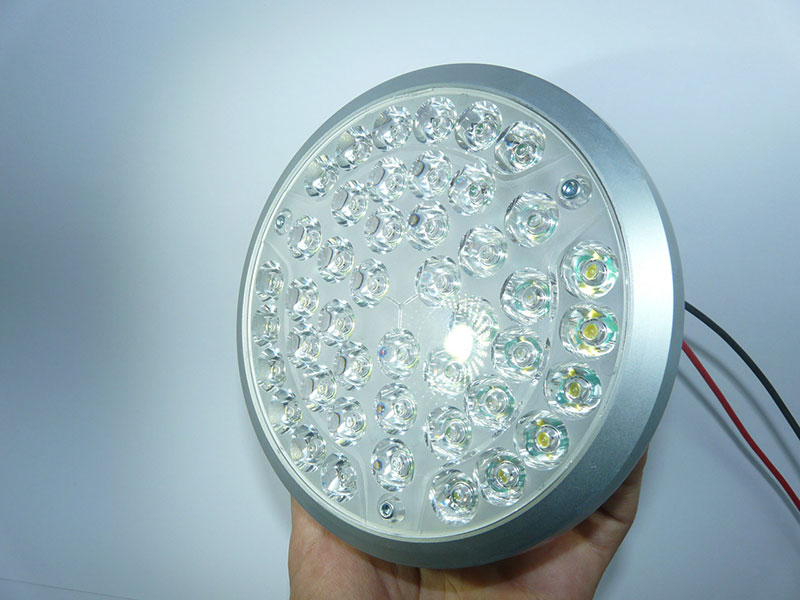

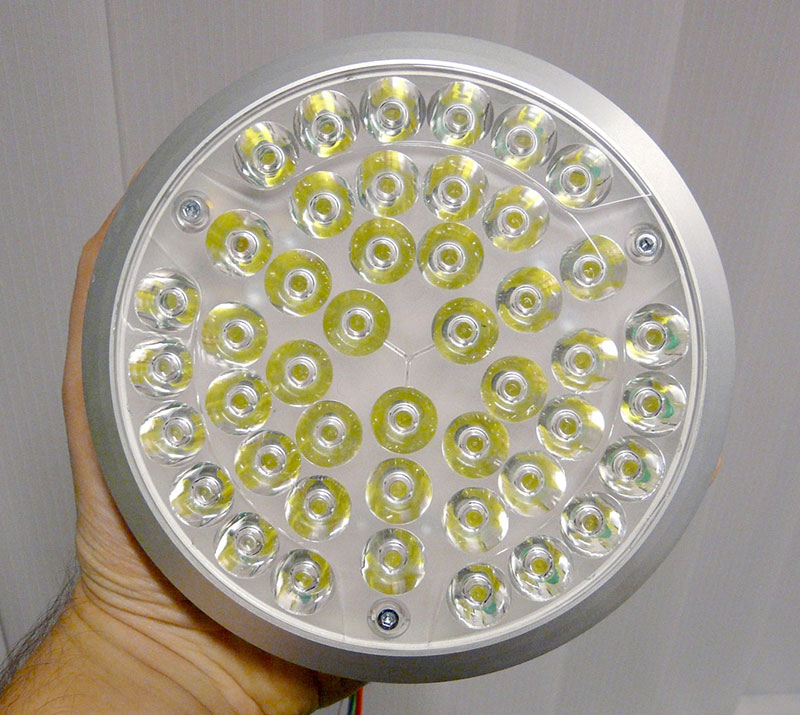

Samson – PAR 46 Landing, Taxi Light with WigWag Function

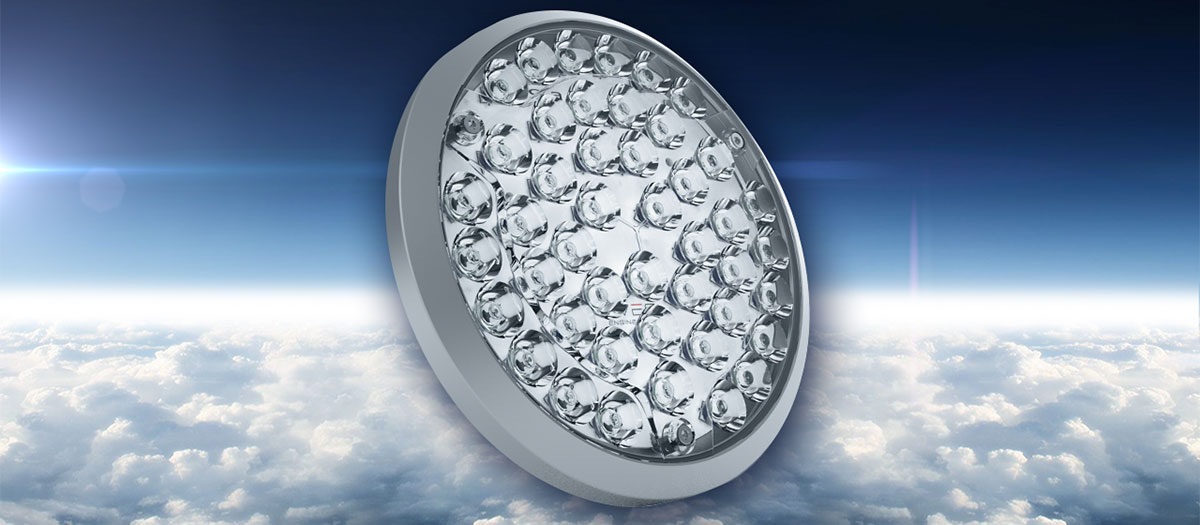

Samson-beforeSamson-after

An extremely powerful multi-fucntion landing, taxi and recognition wigwag light, the Samson is also used in search lights and scene lights by rescue and security and military helicopters.

Features

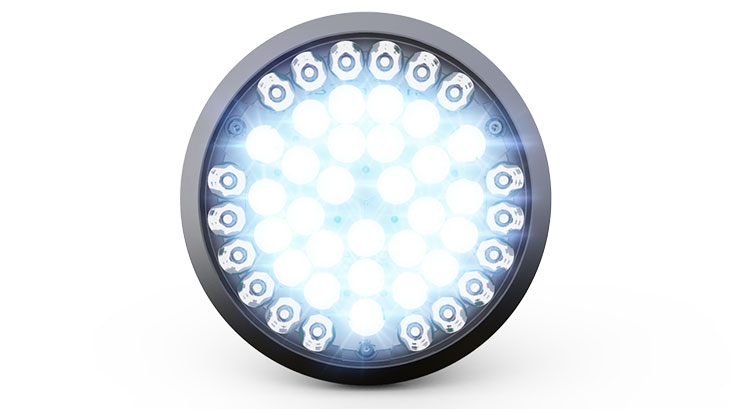

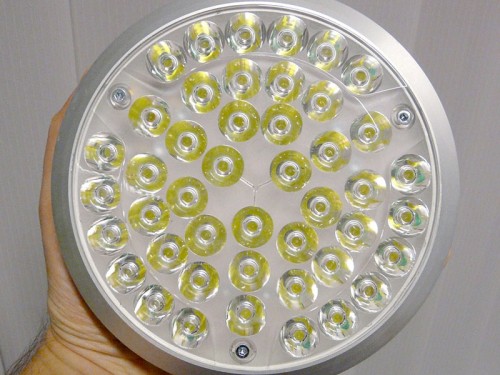

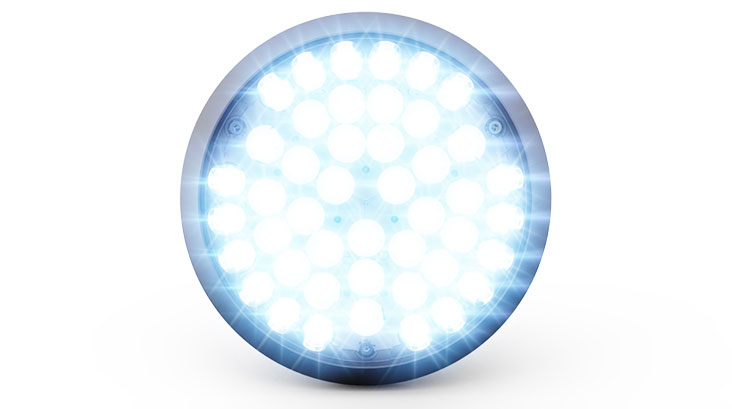

27 High brightness LEDs for LANDING light coverage

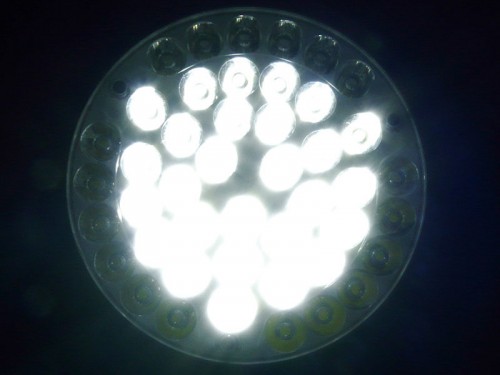

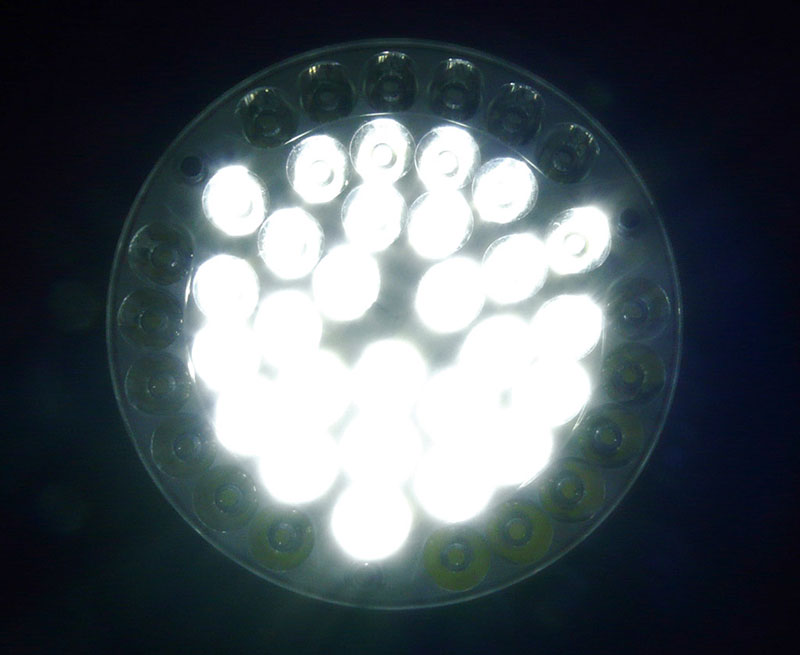

Packed with 27 ultra high brightness CREE aviation white LEDs for LANDING mode.

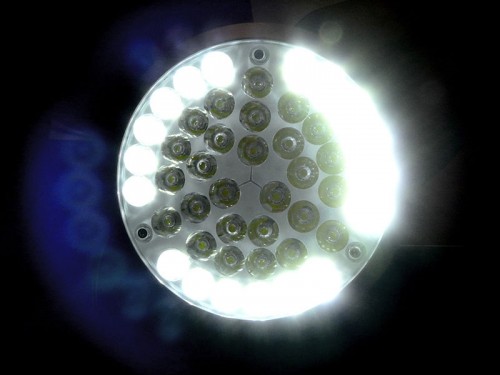

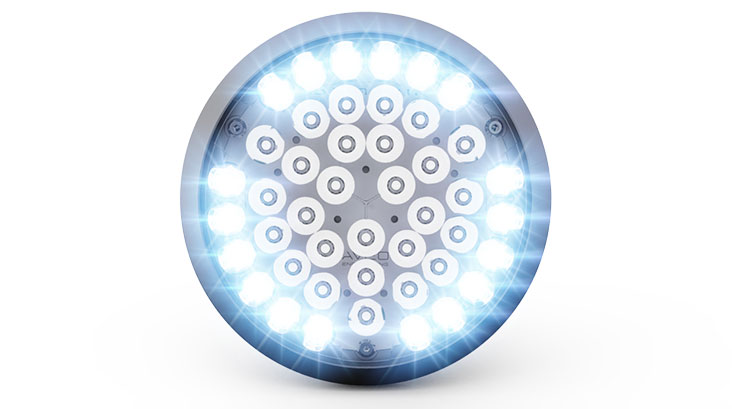

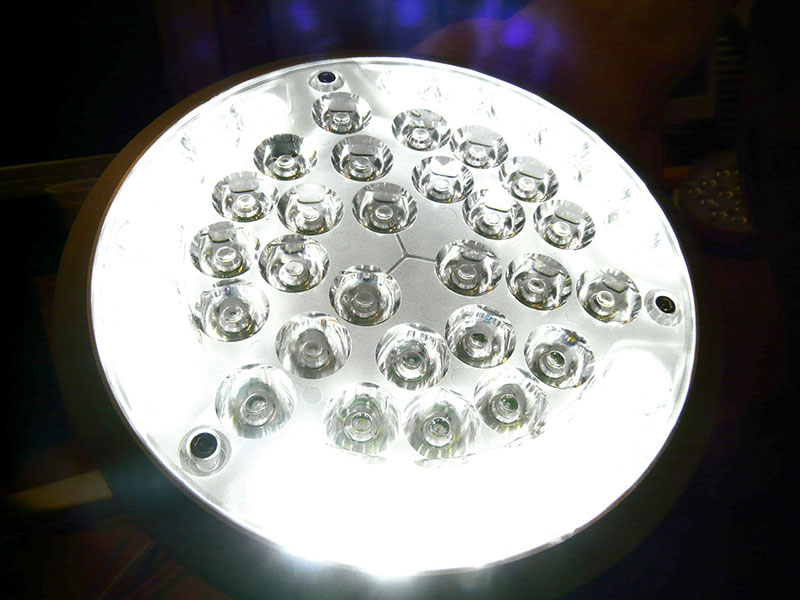

18 High brightness LEDs for TAXI and WIGWAG mode

Packed with 18 ultra high brightness CREE aviation white LEDs for TAXI and WIGWAG mode.

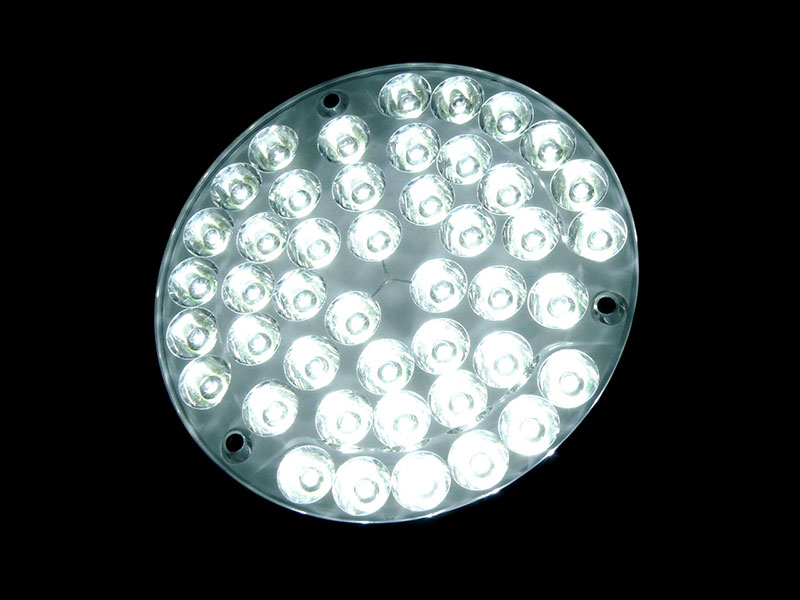

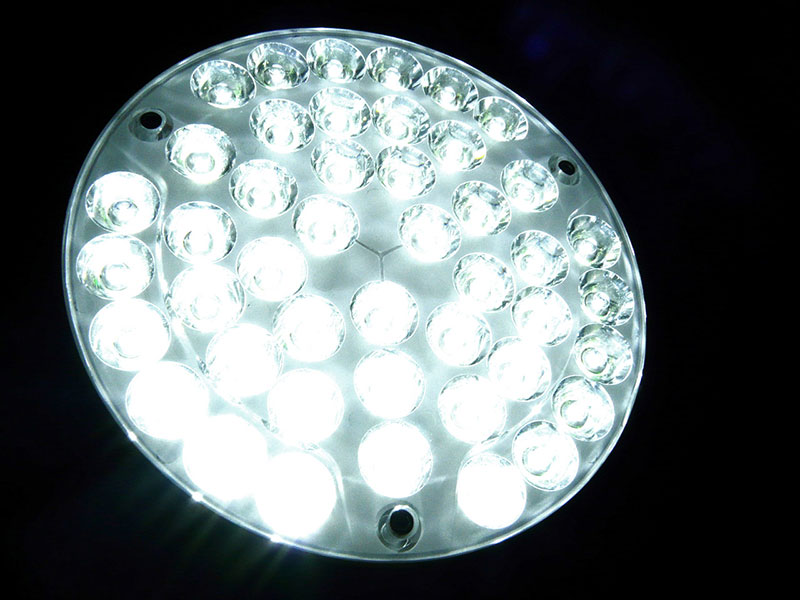

45 High brightness LEDs for FULL POWER with HIGH/LOW function

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Environmentally Friendly

The Samson™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

Multimode

Single function

Number of LED: 45
Input voltage: from +18 to +36 V DC
Output power [Hi/Low]- Full featured light version: a.  67W / 43W Taxi,
b.  101W / 64W Landing,
c.  168W / 107W Taxi+Landing
d.  170W Recognition
Output power - Plane light version: 168W
Output current [Hi/Low] - Full featured light version: a.  1.25A / 0.8A Taxi LED,
b.  1.25A / 0.8A Landing LED,
c.  1.25A per LED Recognition mode
Output current - Plane light version: 1.25A per LED
Transient voltage: 80V, 2 seconds
Under-voltage lockout: 18V, not more
Over-voltage lockout: 36V, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Function description - Full featured light version: a. Taxi, steady light - 18 LEDs
b. Landing, steady light - 27 LEDs
c. Taxi+Landing - 45 LEDs
d. Synchro Mastrer function, active – low

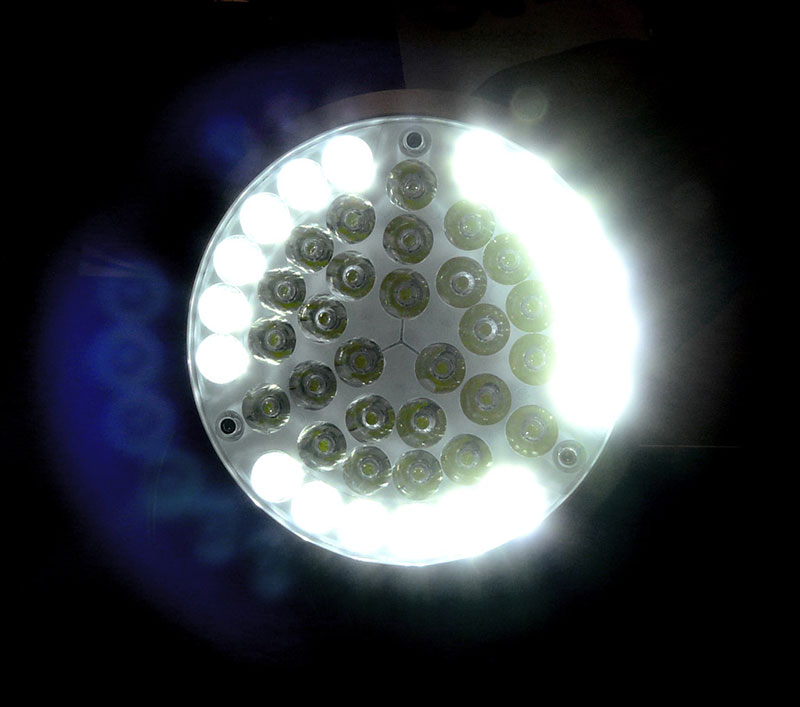

e. Wig-Wag – Taxi LEDs only
f. Master/Slave select sequential and simultaneous Wig-Wag mode
g. High/Low power select for Landing and Taxi
Function description - Plane light version: On / Off
Beam Pattern: 12°
Color: cool white
Overheat protection: temperature dependent decrement intensity
Weight: less than 1.76lbs (800 g)
Useful life: not less than 30.000,0 aircraft flight hours

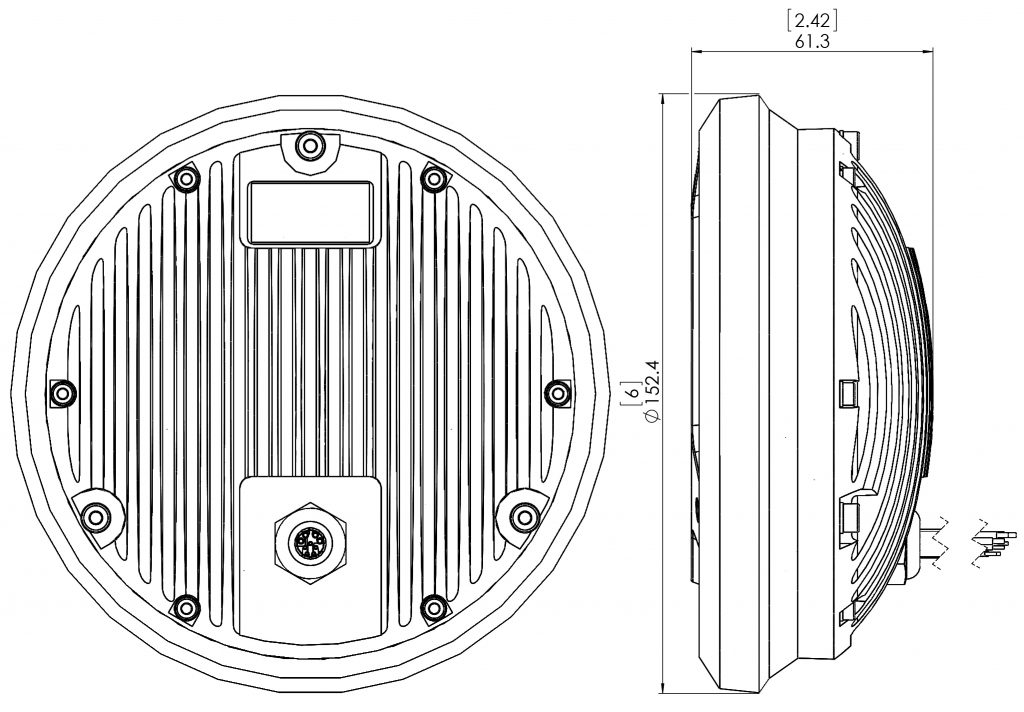

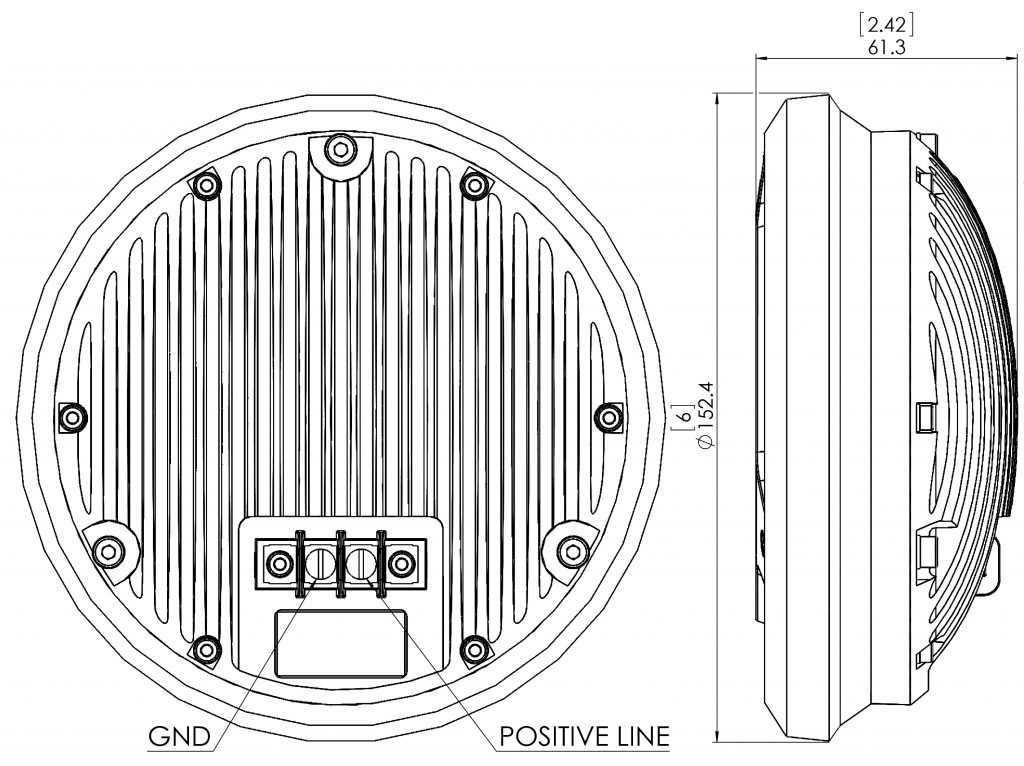

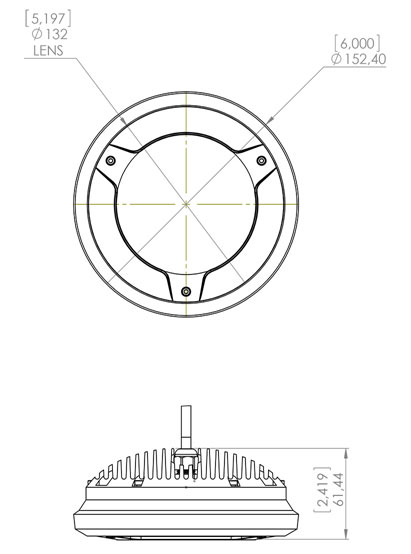

Dimension: 6” Round x 2.419” (D = 152mm, H = 61mm)

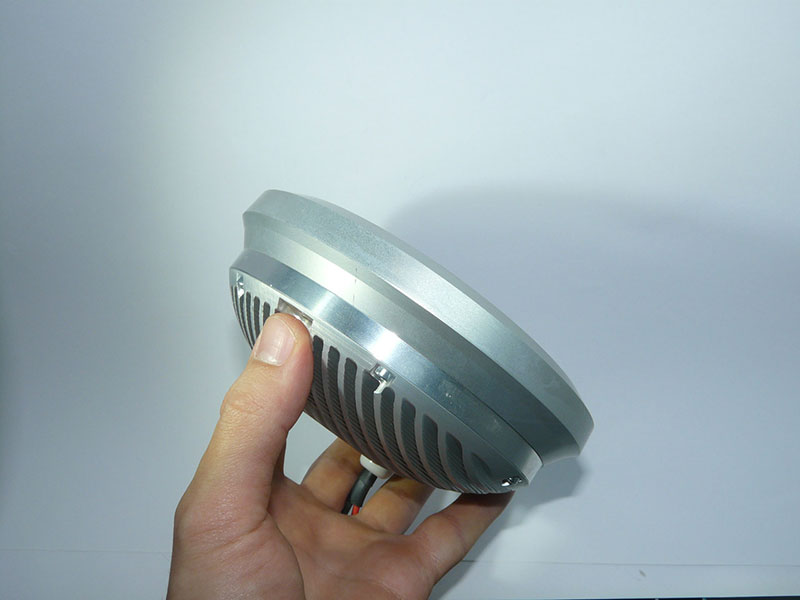

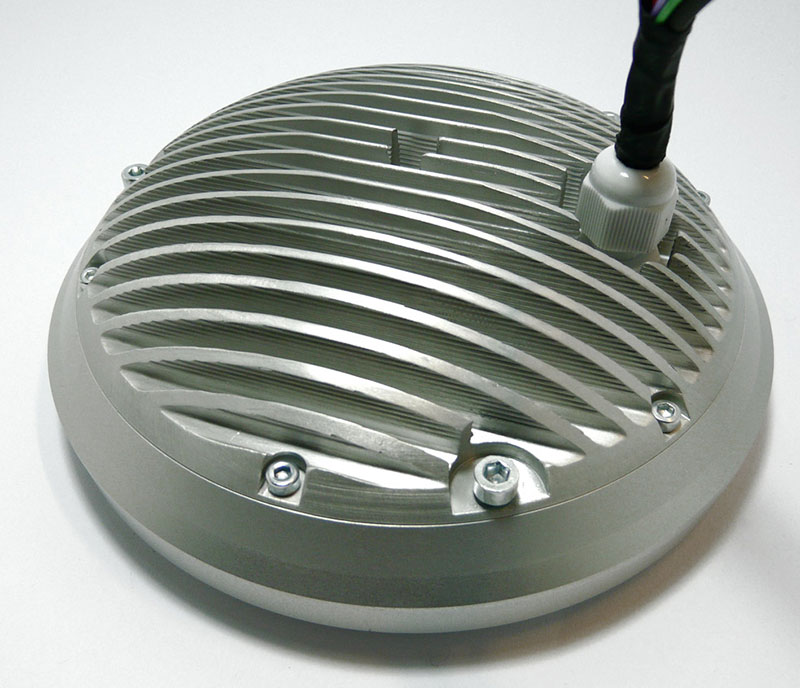

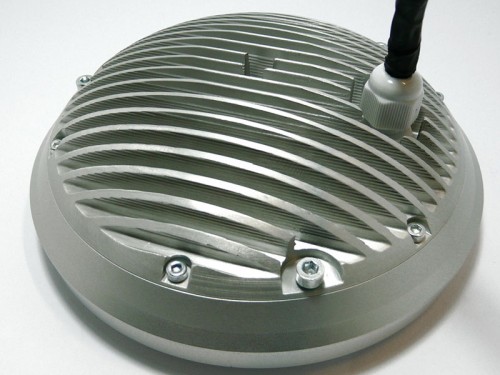

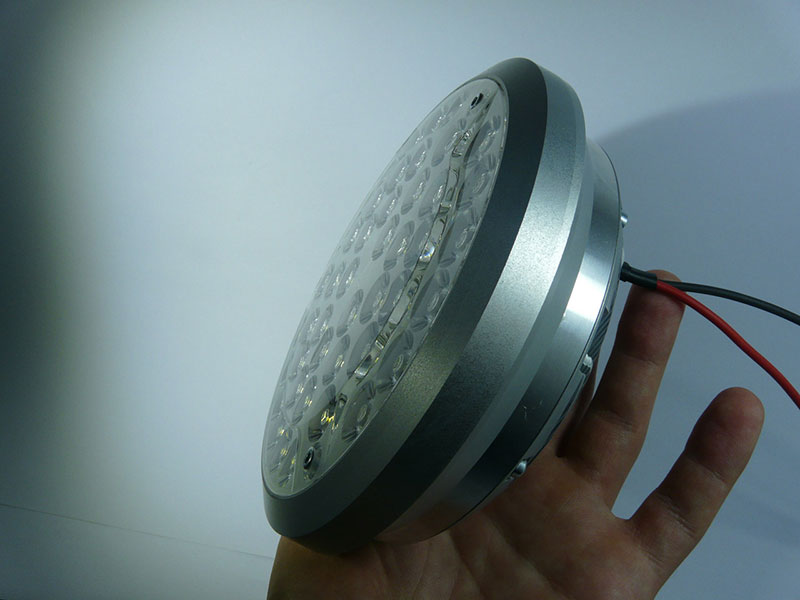

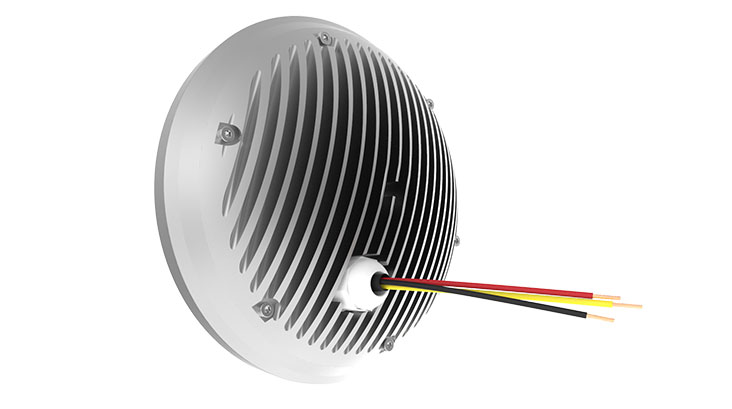

Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

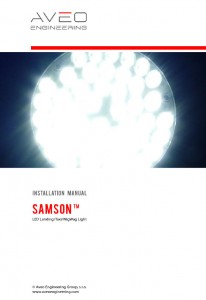

Installation Manual
