SmartStrobe

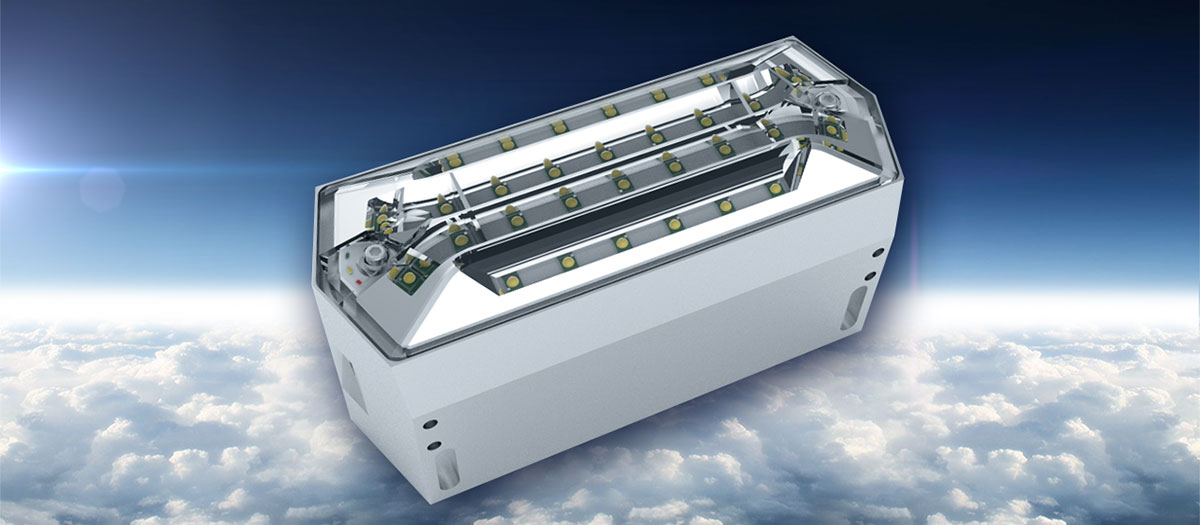

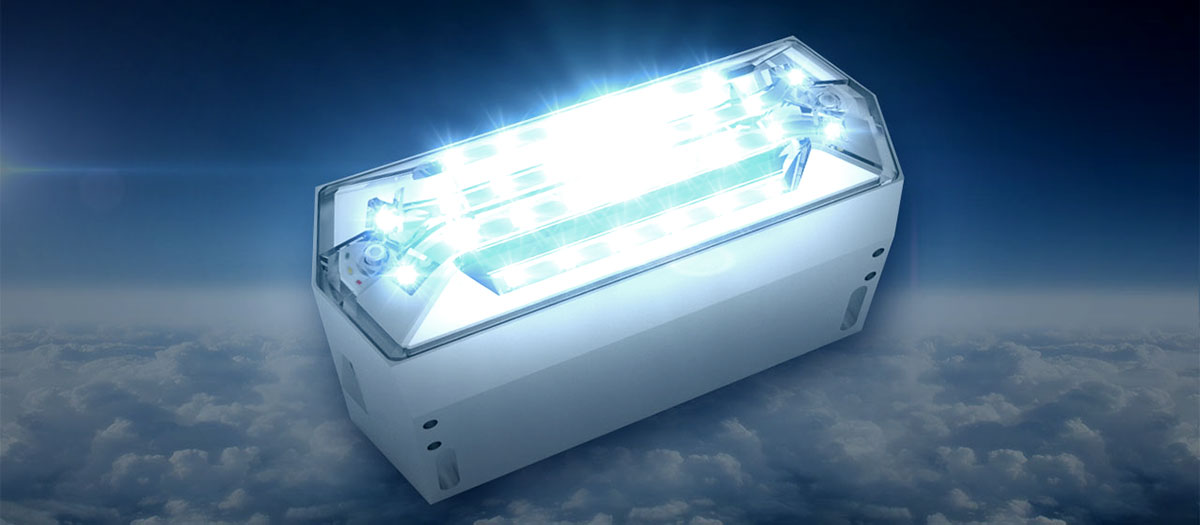

SmartStrobe-beforeSmartStrobe-after

TSO Certified

Replacing the problematic, unreliable and really ugly legacy strobe light in the wingtip of Gulfstream IV’s and V’s was one of the first requests. Of course, the entire project was limited by the drop-in replacement requirement, so making the trademark sleekest light designs was not possible on most of these retrofit lights, but still the result was a cool appearance, a lighter weight product, a brighter light, and more reliable strobe with the amazing live status indicators of Aveo’s built-in LEDCheck™ system

Features

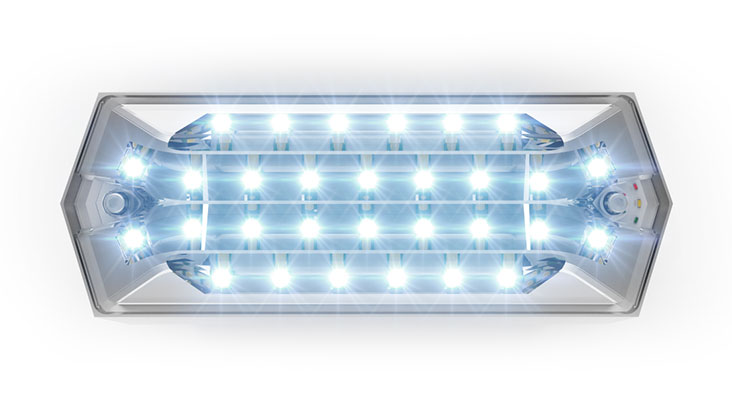

30 High brightness LEDs for STROBE (180°) coverage

Packed with 30 ultra high brightness CREE LEDs for STROBE mode in white color that are the industry state-of-the-art in performance and output lumens.

No separate strobe power box needed

Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry.

Gulfstream Drop-In Replacement STC for GIV and GV

SmartStrobe™ is a solid-state, hermetically sealed strobe LED light that is TSO’d and simple drop-in replacements for those old legacy lights – Honeywell 30-2446 (Strobe light) and Honeywell 60-4943 (Strobe power supply).

Aveo Engineering SmartStrobe vs. Honeywell strobe light comparison

Only three multiple-generations old low-power LEDs vs. SmartStrobe high power output means being seen from 5 times the distance.

New LED check system

LEDcheck-logo

TSO Certified

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Dimensions: see drawing on the left
Output power: 45W peak
Weight (g): 580g
Weight (lbs): 1.278 lbs
Operating Voltage Range: 90-130V AC, 360-440 Hz
Input current: 0.75A
Certification: ETSO and STC pending
Operating temperature: -40°C to +85°C
Over-Temperature protection: YES
Waterproof: YES
Vibration-proof: YES
Shock-proof: YES
Dust-proof: YES

Gulfstream Replacement

Approvals
