StrobeTail Nano

StrobeTailNano-beforeStrobeTailNano-after

If your aircraft has an extremely thin and streamlined empennage, the StrobeTail Nano is the ultimate solution!  As the world’s smallest strobe light assemblies that meet all DO-160F and FAR requirements, this light will make your aircraft legal for night flying if your wing lights are not parallel to your aircraft centerline due to wingtip shapes.

Features

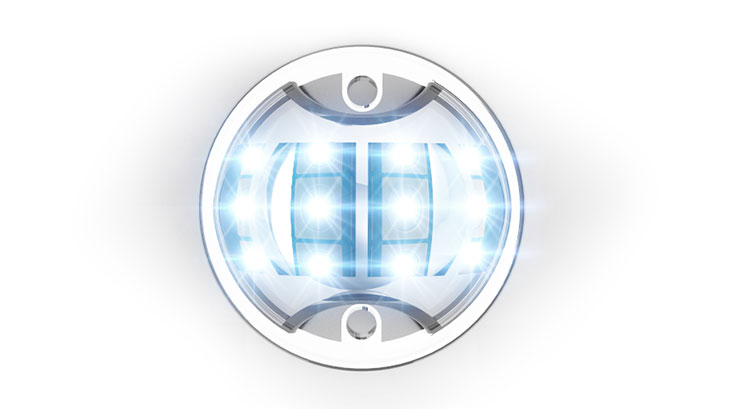

12 High brightness LEDs for STROBE light coverage (180°)

Packed with 12 ultra high brightness CREE LEDs for STROBE mode in white color that are the industry state-of-the-art in performance and output lumens, the StrobeTails feature a significantly lower footprint than competitor lights.

Lowest drag form factor & design in the industry

An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any aircraft requiring a rear coverage light due to wingtip light coverage zone limits.

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

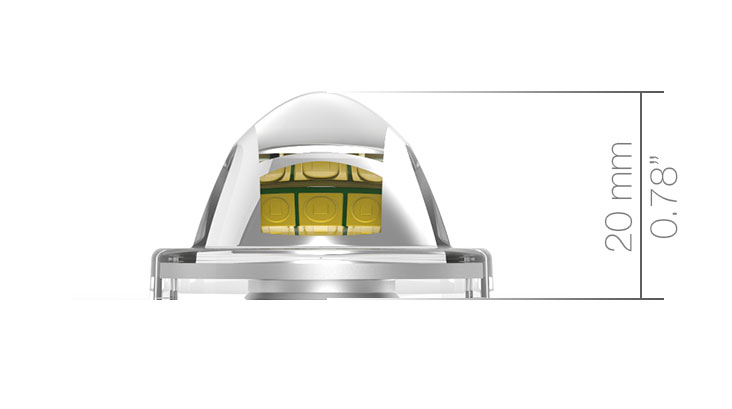

Dimensions (mm): see picture on the left
Dimensions (inches): see picture on the left
Weight (g): 95 g
Weight (oz): 3.35 oz
Operating Voltage Range: 9 – 36 Vdc
Output power – white pulse strobe: 27.5 W
Output current: 0.735A/LED
Warm up time: less than 3sec
Transcend voltage: 60V, both polarities
Under-voltage lockout: 9V , not more
Over-voltage lockout: 36V, not less
Ambient temperature: from -40°C to +85°C (from -40°F to +185°F)
Overheat protection: +85°C / +185°F
Waterproof: YES
Vibration-proof: YES
Shock-proof: YES
Dust-proof: YES

Installation Manual
