SuperNova Titania

Titania-logo

Anti-collision LED light combo White/Red or White/IR

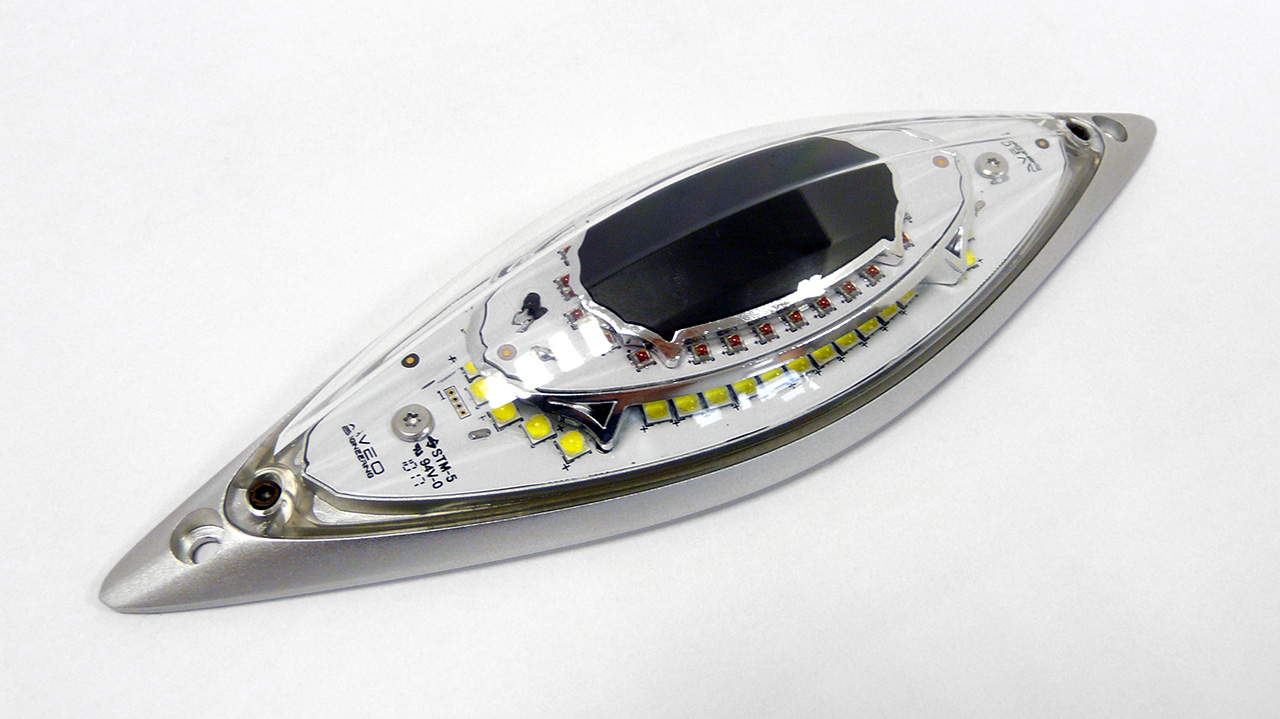

The SuperNova Titania – White/Red anti-collision light is a high powered LED light use in GA and transport category aircraft. It have been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all certified aircraft. It contains of red and white LEDs. SuperNova Titania – White/IR is available in white and infrared LEDs.



Specification

Dimensions (mm): 199.5 mm x 57.4 mm x 29 mm
Dimensions (inches): 7.854“ x 2.260“ x 1.144“
Weight: 250g / 0.55lb
Operating Voltage Range: 18-36 V DC
Performance at 18-36 V DC, 25°C and 82% DC-DC efficiency:
Output current, not less (High mode – H, Low mode – L):White strobe:
Red strobe:
IR strobe:

0.8A/LED – H; 0.4A/LED – L
0.6A/LED – H; 0.3A/LED – L
0.8A/LED – H; 0.4A/LED – L
Output power, not less:
White strobe:
Red strobe:
IR strobe:

86.4W
30.3W
25.6W
Input power, not more:
White strobe:
Red strobe:
IR strobe:

100W
35W
30W
Input current:
White strobe branch:
Red strobe branch:

3.6 A (28 V)
1.2 A (28 V)
Wavelength (IR): IR 850nm
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M4 (DIN912) or SHCS #8-32
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Overheat Protection: Yes (+85°C)
Reverse Polarity Protection: Yes
Transient Voltage: 60V at 2sec max, both polarities
Under-Voltage Protection (lockout): Yes (18V)
Over-Voltage Protection (lockout): Yes (36V)
Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes

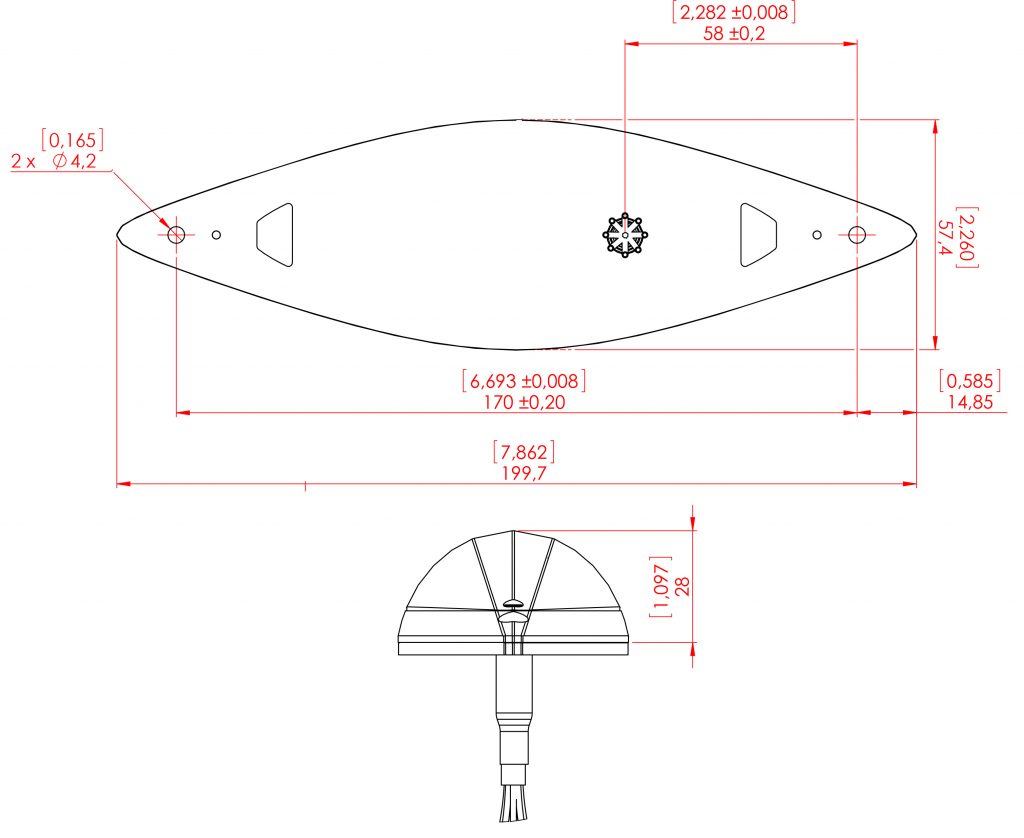

Drawing

Installation Manual

Gallery
