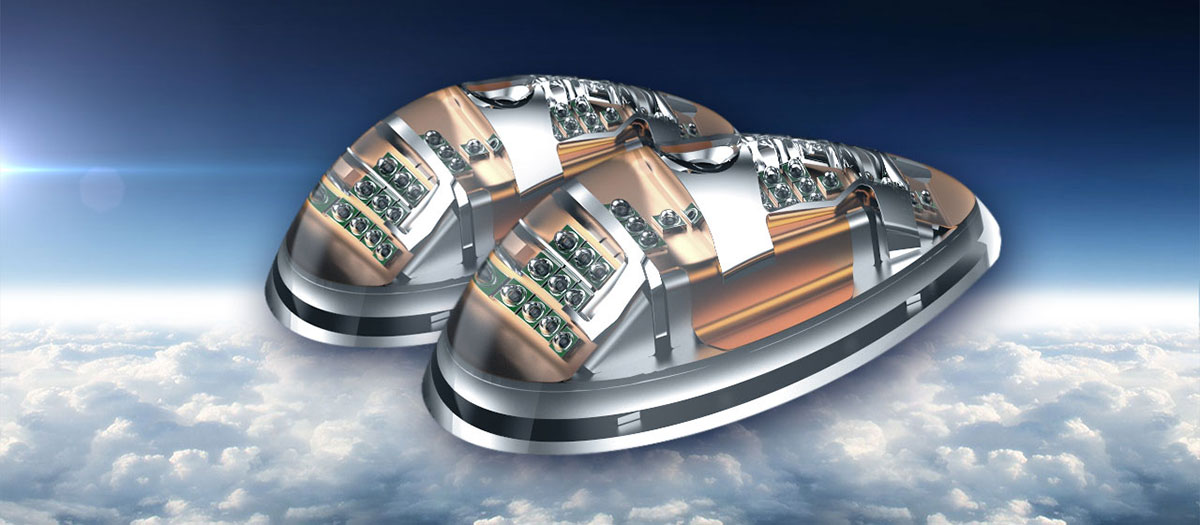

Ultra Galactica


TSO Certified

The Ultra Galactica™ Series lights are a very popular choice for certified and general aviation aircraft of any size, due to their compact design and easy installation. The Ultra has also become the leading nav-position-strobe all-in-one solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with OEM aircraft manufacturers. The lowest profile, lowest drag certified light in the aviation world.


6 High brightness LEDs for NAVIGATION coverage

Packed with 6 ultra high brightness CREE LEDs for NAVIGATION mode in red or green color that are the industry state-of-the-art in performance and output lumens, the Ultras feature a significantly lower footprint than competitor lights.

21 High brightness LEDs for STROBE coverage

Packed with 21 ultra high brightness CREE aviation white LEDs for STROBE mode

3 High brightness LEDs for POSITION coverage

Packed with 3 ultra high brightness white LEDs for Rear Position mode

No separate strobe power box needed

Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 9 to 36 volt input range too!

Low drag form factor & design

Lowest drag coefficient in the industry as proven in CFD analysis on the University of Michigan Cray Computer cluster.

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

TSO Certified

4 year warranty

4 year warranty on materials and workmanship when registered to the Aircraft Tail Number.

Dimensions (mm): 100 mm x 45 mm x 30 mm
Dimensions (inches): 3.94” x 1.77” x 1.18”
Weight (g): 83 g
Weight (oz): 2.93 oz
Operating Voltage Range: 9 – 36 Vdc
Input Power – position (@28V): 8.8 W max (peak)
Input Power – strobe (@28V): 41 W max (peak)
Input Current – position -red (@28V): 0.31 A
Input Current – position - green (@28V): 0.38 A
Input Current – strobe (@28V): 1.45 A
Repetition Rate of Strobe: 50 cycles per minute
Ambient Temperature: from -55°C to +85°C / from -67°F to +185°F
Recommended size of mounting screw: M5
Reverse polarity protected YES
Over voltage protected YES
Waterproof YES
Vibration-proof YES
Shock-proof YES
Dust-proof YES

Installation Manual
