Vega TL & TLR

Vega-beforeVega-after

Vega Under-Wing/Under Cowling Taxi Light

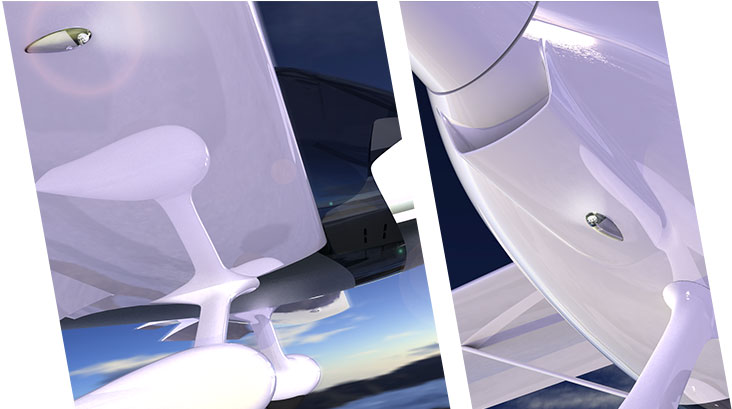

If you don’t have space in your wing or on your gear for a taxi light, the simplest and most aerodynamic solution is the Vega™.  Whether mounted under your wing or under your cowling, this light is designed to give you the best visibility for taxi in a very small and streamlined profile. It should be used one under each wing and one under nose cowling for situations where drag is to be minimized.

4 High brightness LEDs for FULL POWER with HIGH/LOW function

2 High brightness LEDs for TAXI, WIGWAG and RECOGNITION (TLR only) light coverage

Easy to install

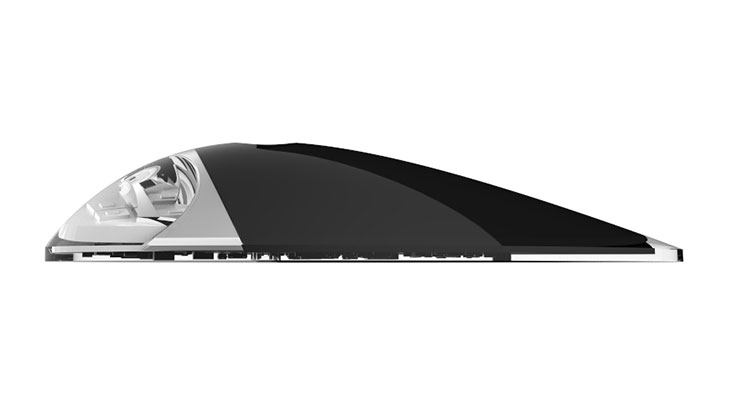

The simplest and most aerodynamic solution

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Environmentally Friendly

The Vega™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

Number of LEDs: 4
Operating voltage: from +9 to +36 VDC
Output power:

- Taxi 6W
- Landing 12W
- WigWag (TLR only) 12W peak
- Recognition (TLR only) 24W peak

Input currents:

- Taxi:
0.3A/28V (+/- 5%)
0.62/12V (+/- 5%)
- Landing:
0.6A/28V (+/- 5%)
1.35/12V (+/- 5%)
- Recognition (TLR only):
1.2A/28V peak
2.8A/12V

Voltage protection: 60V
Under-voltage lockout: 8.5V , not more
Over-voltage lockout: 38.5V, not less
Ambient temperature: from -40°C to +85°C
(from -40°F to +185°F)
Function description:

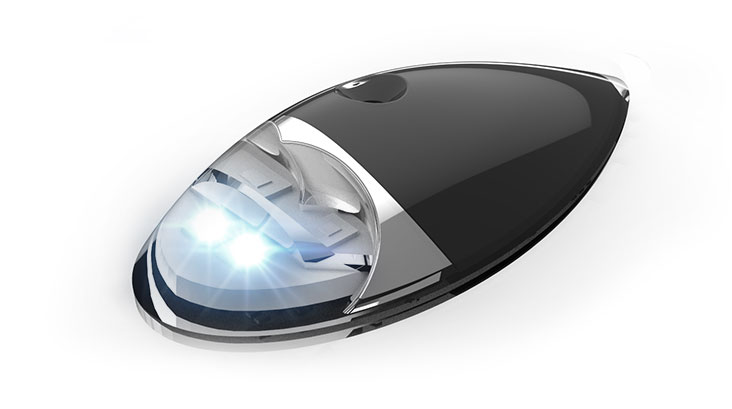

a. Taxi, steady light - 2 LEDs
b. Landing, steady light - 2 LEDs

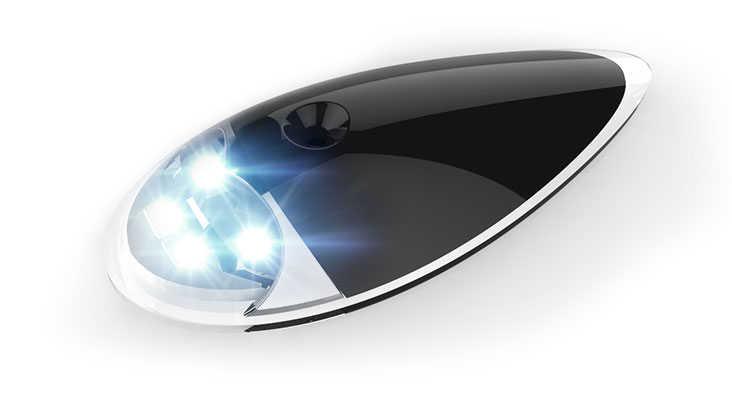

c. Taxi+Landing - 4 LEDs
d. Synchro Mastrer function, active – low
e. Wig-Wag – Taxi LEDs only
f. Master/Slave select sequential and simultaneous Wig-Wag mode
g. High/Low power select for Landing and Taxi.

Color and shade: cool white, 5000K – White
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Useful life: not less than 30.000,0 aircraft flight hours.

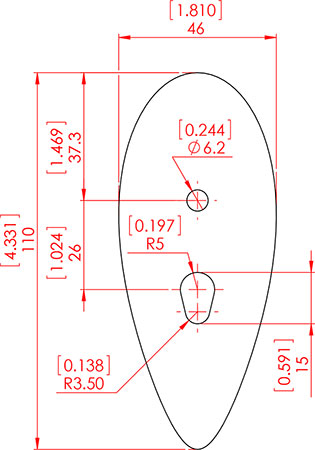

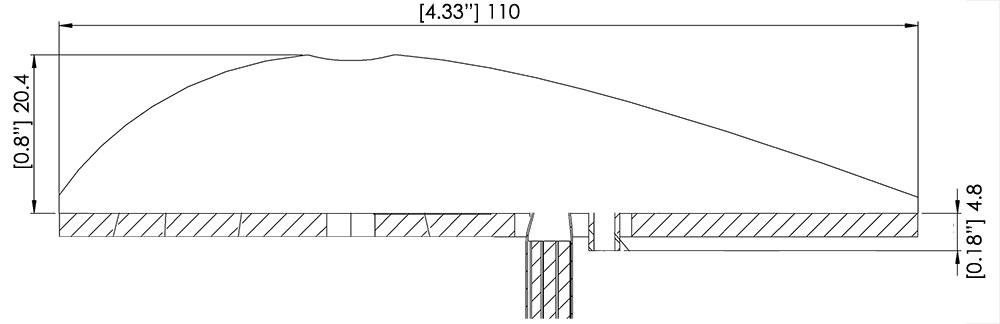

Dimension: see drawing on the left
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

Installation Manual

Coming soon
