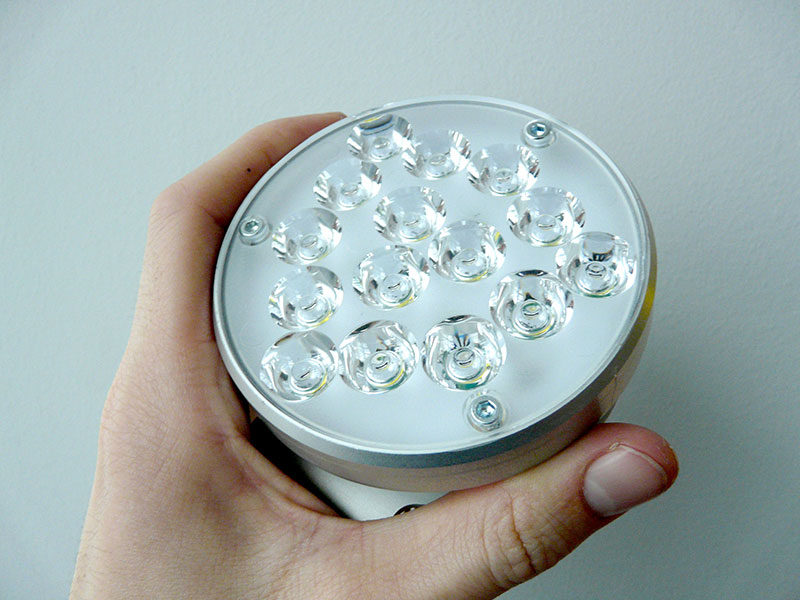

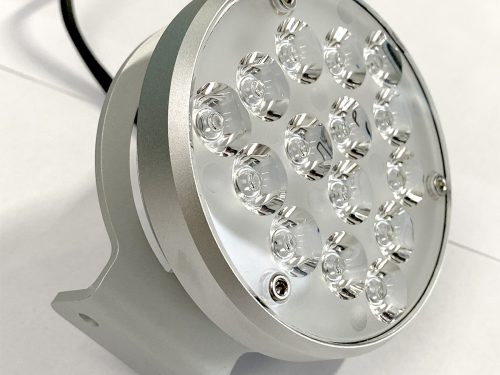

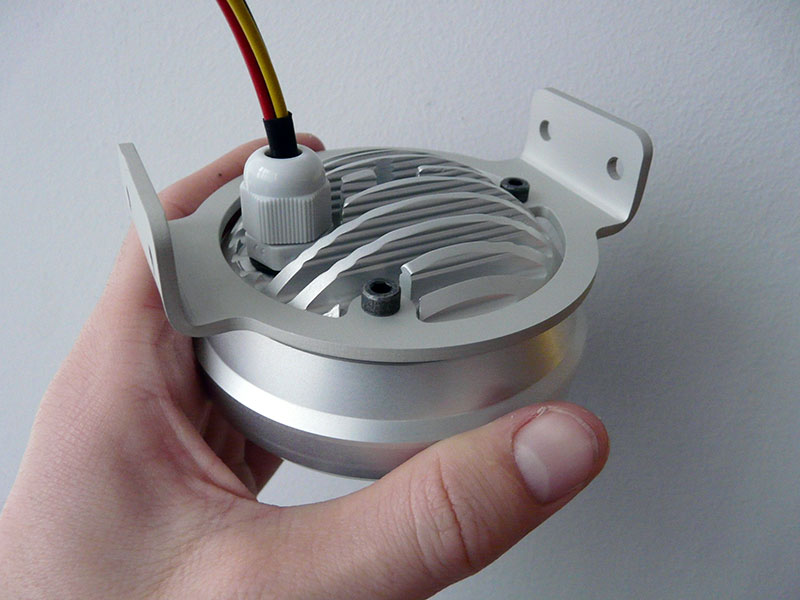

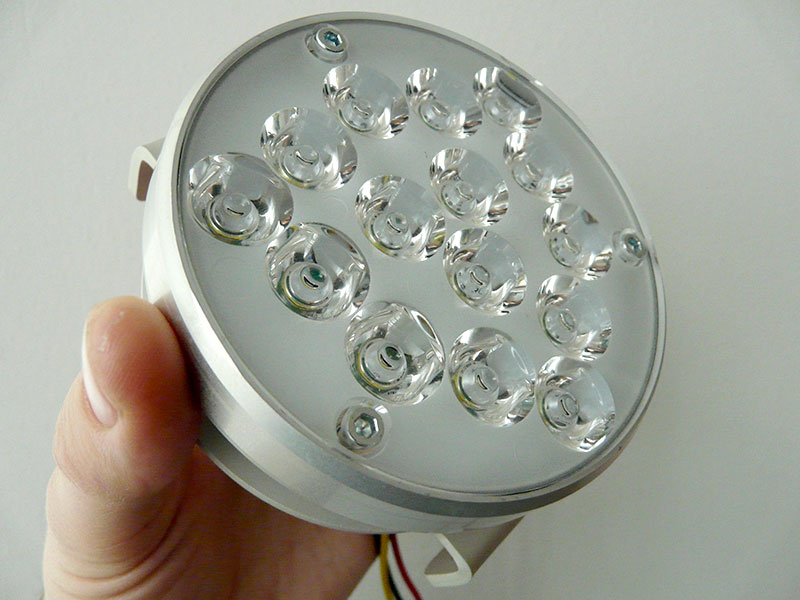

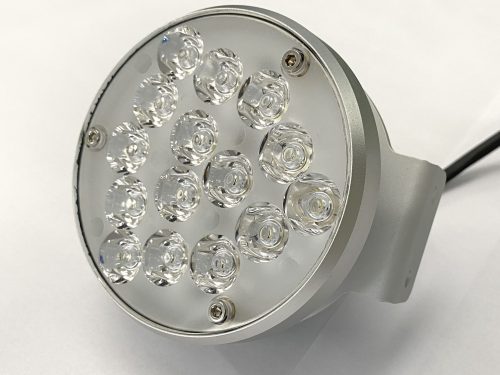

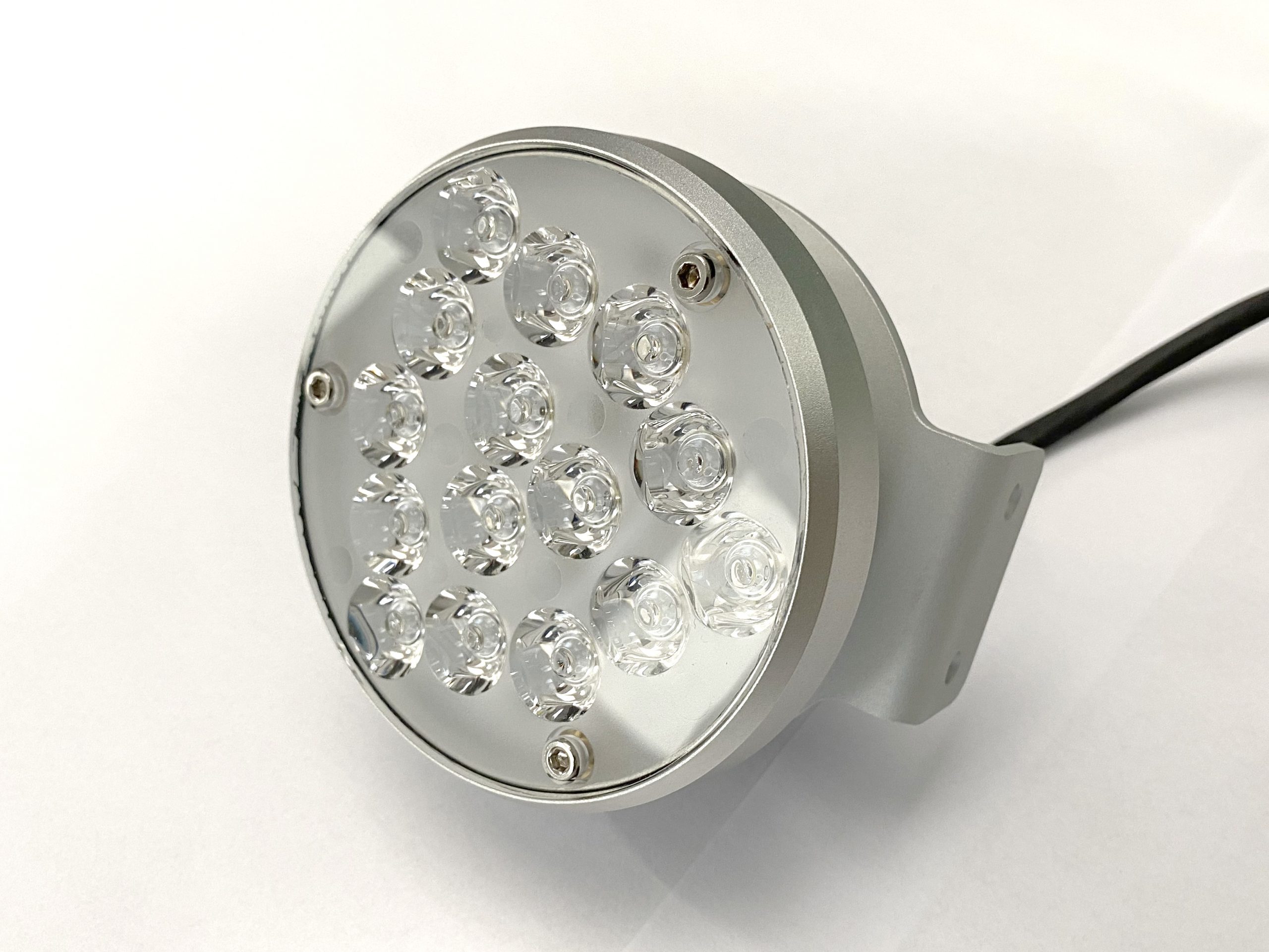

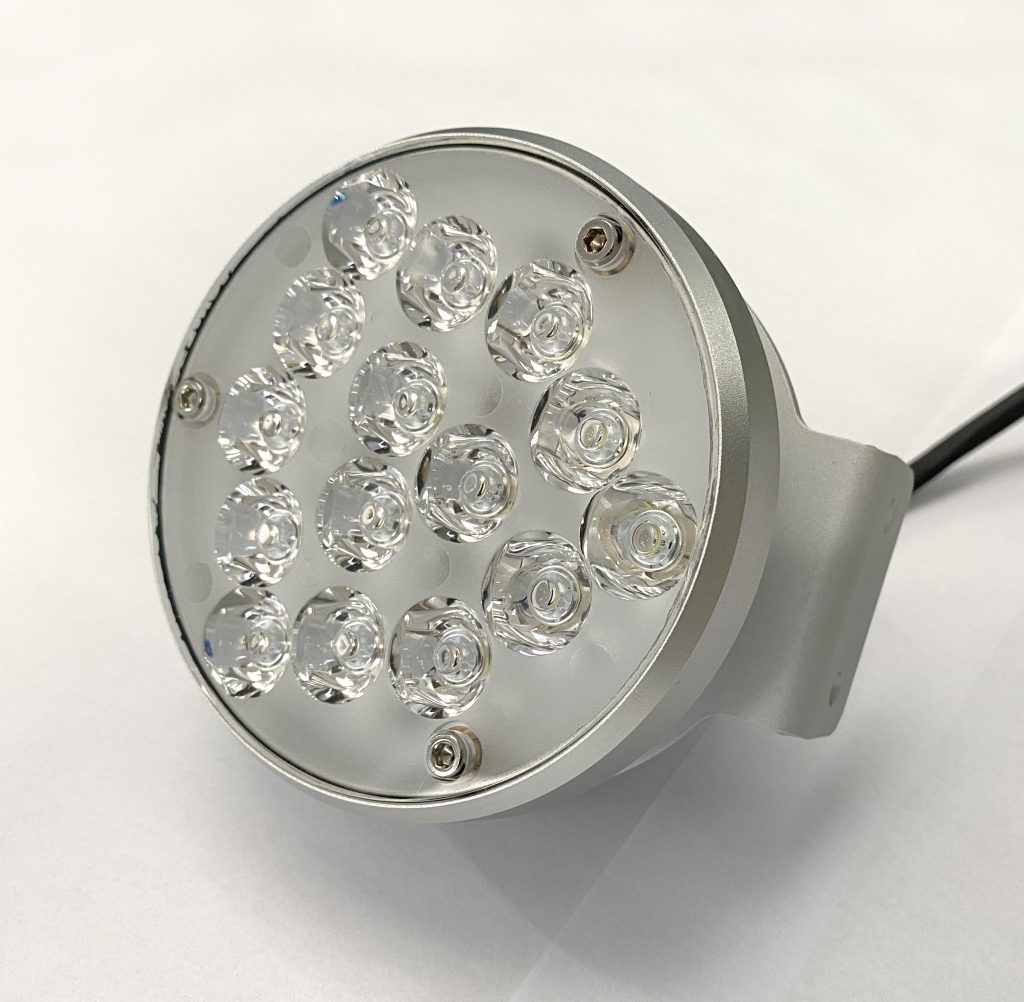

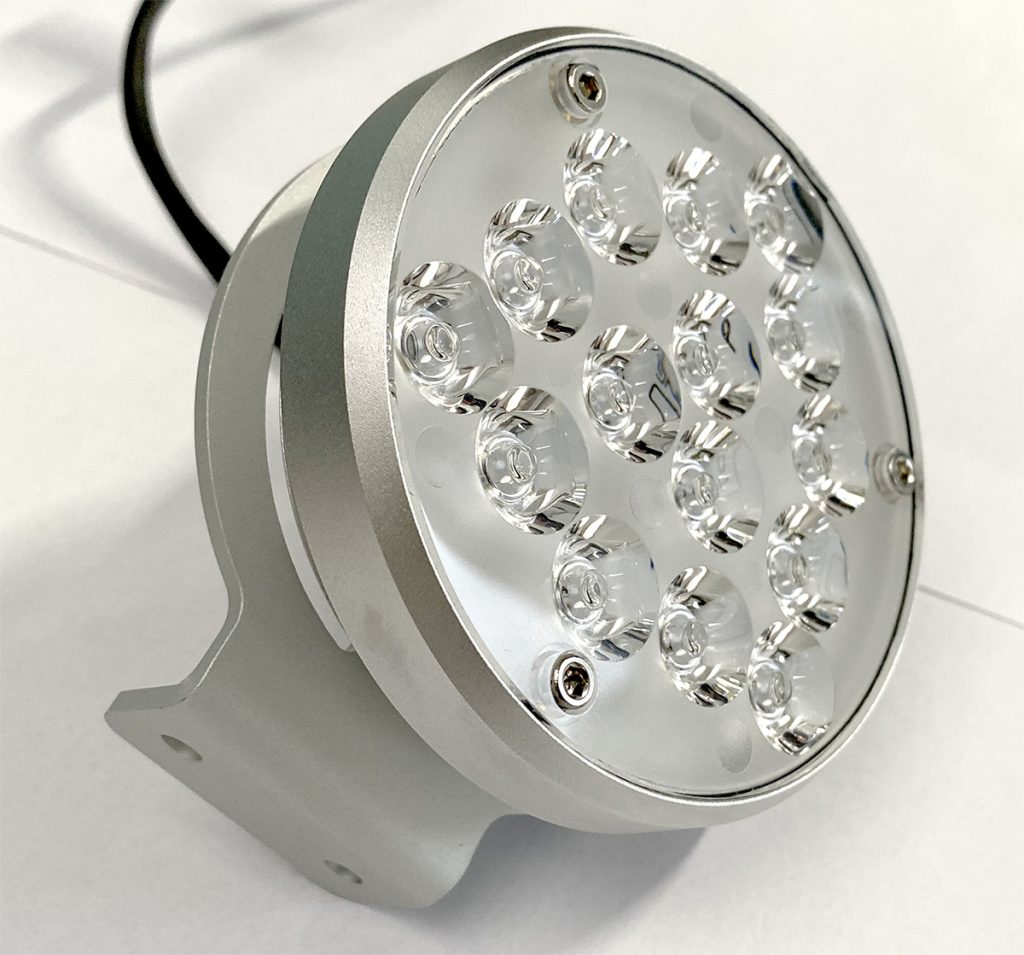

Atlas – Landing, Taxi, WigWag Light

Affordable Hi-Performance Landing or Taxi Light

Stunning Performance at an Amazing Price Point!

• Taxi + Landing Light
• Wig-Wag – Taxi LEDs only
• Master/Slave select sequential and simultaneous Wig-Wag mode
• High/Low power select for Landing and Taxi.

Specification

Weight: 353 g / 12.45 oz
Operating Voltage Range: 9 – 36 V DC
Landing Branch: Current (Hi/Lo): 5.97 A / 2.76 A (14V)
Current (Hi/Lo): 3.03 A / 1.41 A (28V)
Power (Hi/Lo): 83.5 W / 38.6 W (14V)
Power (Hi/Lo): 84.8 W / 39.4 W (28V)
Taxi Branch: Current (Hi/Lo): 1.65 A / 0.81 A (14V)
Current (Hi/Lo): 0.86 A / 0.41 A (28V)
Power (Hi/Lo): 23.1 W / 11.3 W (14V)
Power (Hi/Lo): 24.2 W / 11.5 W (28V)
Taxi + Landing Branch: Current (Hi/Lo): 7.66 A / 3.6 A (14V)
Current (Hi/Lo): 3.87 A / 1.82 A (28V)
Power (Hi/Lo): 107.3 W / 50.4 W (14V)
Power (Hi/Lo): 108.5 W / 50.9 W (28V)
WigWag Branch: Current (Hi/Lo): 1.64 A / 0.81 A (14V)
Current (Hi/Lo): 0.85 A / 0.41 A (28V)
Power (Hi/Lo): 23.0 W / 11.3 W (14V)
Power (Hi/Lo): 23.9 W / 11.5 W (28V)
Function Descripton: • 1x4 LEDs - Taxi, steady light
• 1x6 LEDs - Landing, steady light
• 1x4 + 1x6 - Taxi+Landing
• Synchro Mastrer function, active – low
• Wig-Wag – Taxi LEDs only
• Master/Slave select sequential and simultaneous Wig-Wag mode
• High/Low power select for Landing and Taxi
Beam angle: 12°
Color: Cool White
Ambient Temperature: from -55°C to +80°C
from -67°F to +176°F
Overheat Protection: Yes (temperature dependent decrement of intensity)
Transient Voltage: 80 V, both polarities
Under-Voltage Protection (lockout): 8.5 V, not more
Over-Voltage Protection (lockout): 37 V, not less
Waterproof, Dust-proof, Vibration-proof: Yes

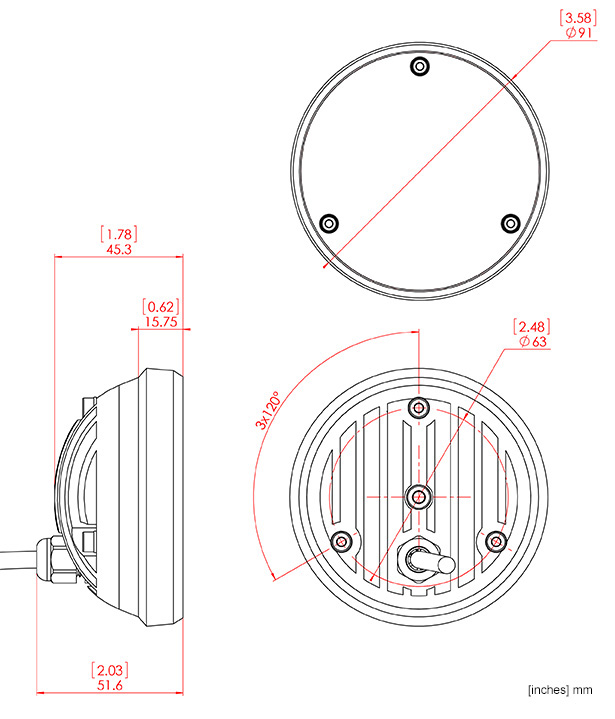

Drawing

Intensity

Landing Hi – 85,000 cd
Landing Lo – 48,000 cd
Taxi Hi – 25,000 cd
Taxi Lo – 14,000 cd
Landing + Taxi Hi – 110,400 cd
Landing + Taxi Lo – 62,000 cd

Installation Manual
