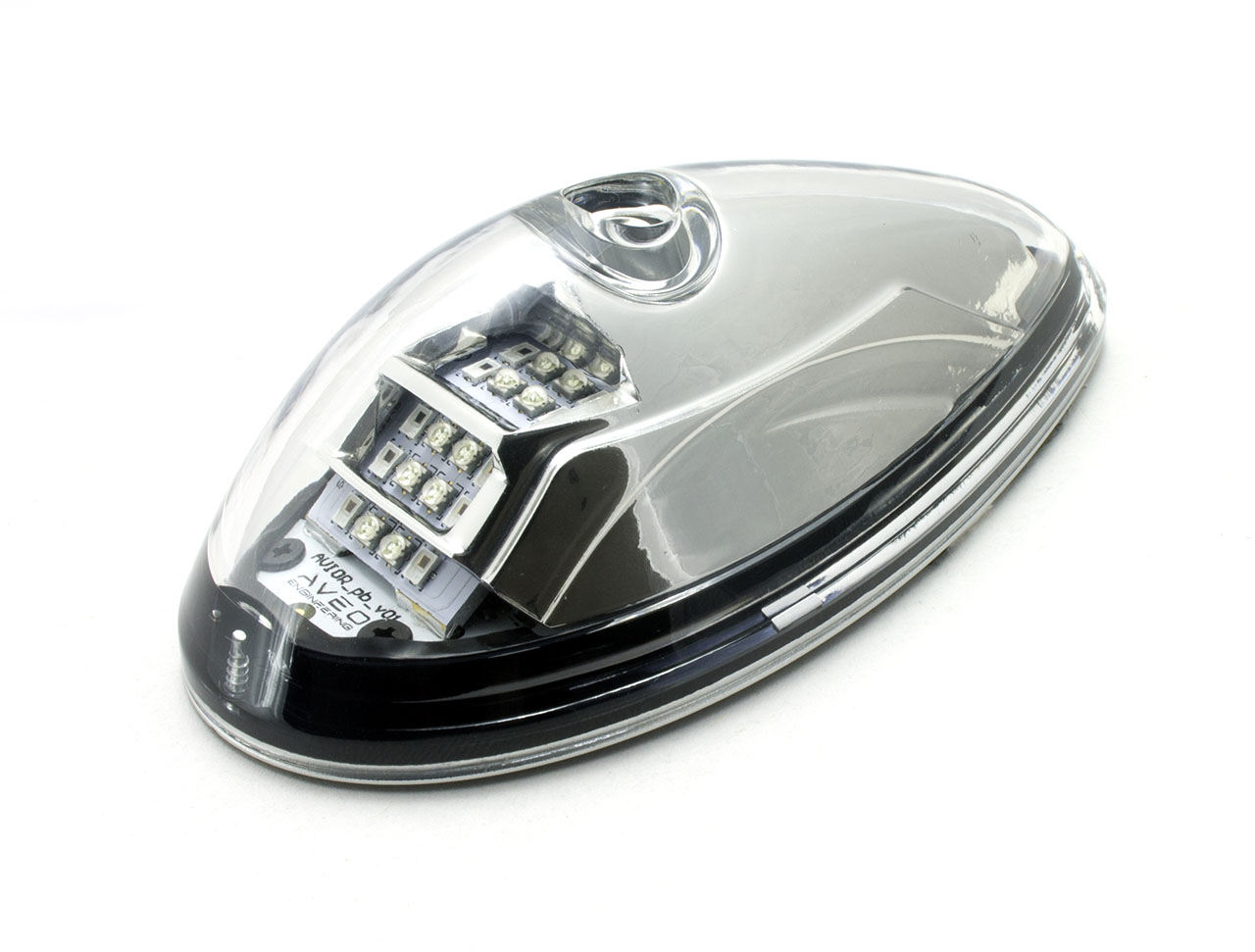

Avior

Position Dual Light

• Dual Position Light Green/IR or Red/IR
• Extremely lightweight at 112 grams (max) / 3.95 oz
• 18-36 V DC input range
• No external power supply
• Light dimming feature for IR
• Light dimming feature for visible section
(PN: AVE-WPRI-M22, AVE-WPGI-M22)
• Unmatched circuit technology
• Advanced computer and goniophotometer engineered optics

• Avior – with connector (Red/IR) AVE-WPRI-M01
• Avior – with connector (Green/IR) AVE-WPGI-M01
• Avior – flying leads (Red/IR) AVE-WPRI-M02
• Avior – flying leads (Green/IR) AVE-WPGI-M02
• Avior DoubleDual – flying leads (Red/IR) AVE-WPRI-M22
• Avior DoubleDual – flying leads (Green/IR) AVE-WPGI-M22

Avior - diagram

Specification

Dimensions: See technical drawing
Weight:
PN: AVE-WPGI-M01, AVE-WPRI-M01
112 g / 3.95 oz
Weight:
PN: AVE-WPGI-M02, AVE-WPRI-M02,
AVE-WPGI-M22, AVE-WPRI-M22
105 g / 3.7 oz
Operating Voltage Range: 18 – 36 VDC
Input Current
Red:
Green:
IR:

0.18 A @28V
0.28 A @28V
0.25 A @28V
Input Power
Red:
Green:
IR:

5.1 W @28V
7.7 W @28V
6.8 W @28V
Fuse (Circuit Breaker) Recommendation: 1.0A per wire from Red, Orange, Purple, White
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Recommended size of mounting screw: M5x40 mm (DIN7984) or equivalent
Reverse Polarity Protection: Yes
Transient Voltage: 80V at 2sec max, both polarities
Under-Voltage Protection (lockout): Yes
Over-Voltage Protection (lockout): Yes
Waterproof, Dust-proof, Vibration-proof: Yes
Meets and exceeds requirements of: • ETSO C30c
• SAE AS8037
• DO-160G

Drawing

PN: AVE-WPRI-M01, AVE-WPGI-M01

PN: AVE-WPRI-M02, AVE-WPGI-M02, AVE-WPRI-M22, AVE-WPGI-M22
