Capella – Landing and Taxi Light

Affordable Hi-Performance Landing and Taxi Light

Stunning Performance at an Amazing Price Point!

Landing Lens Angle:
Taxi Lens: 12° x 30° Taxi – AVE-ACL7THZC-M01
9° Taxi – AVE-ACL7THZC-M02
14° Taxi – AVE-ACL7THZC-M03
21° Taxi – AVE-ACL7THZC-M04

Specification

Operating Voltage Range: 9 – 36 V DC
Input Current (at 25°C) - TAXI: 0.51A @ 14VDC, 0.25A @ 28VDC
Input Current (at 25°C) - LANDING: 1.27A @14VDC, 0.64A @28VDC
Input Power (at 25°C) - TAXI: 7.1W @14VDC, 7.0W @28VDC
Input Power (at 25°C) - LANDING: 17.8W @14VDC, 17.9W @28VDC
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Transient Voltage: 80V, 2 seconds
Landing Lens Angle:
Taxi Lens: 12° x 30° Taxi - AVE-ACL7THZC-M01
9° Taxi - AVE-ACL7THZC-M02
14° Taxi - AVE-ACL7THZC-M03
21° Taxi - AVE-ACL7THZC-M04
Overheat Protection: Yes (temperature dependent decrement of intensity)
Waterproof, Dust-proof, Vibration-proof: Yes
Useful Life: not less than 30,000 aircraft flight hours

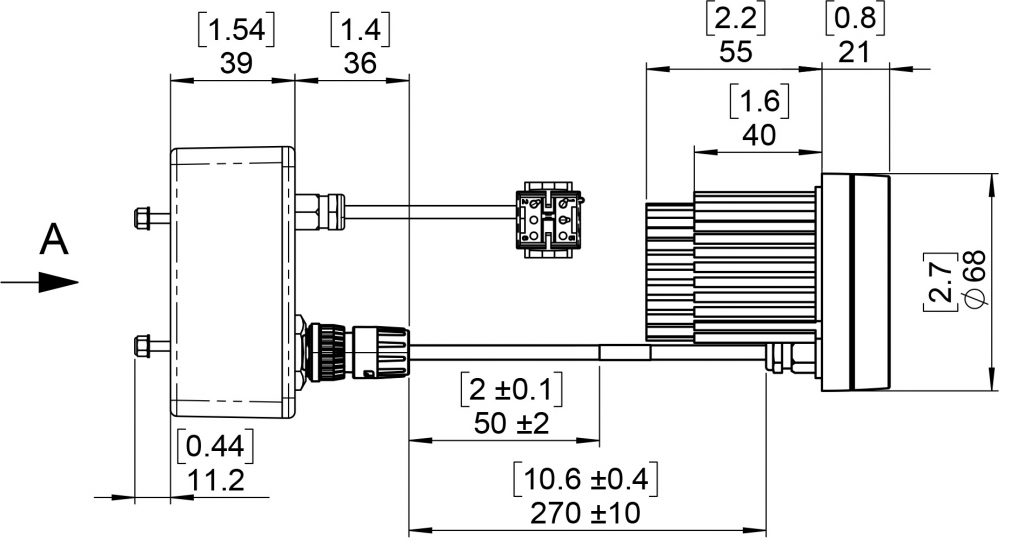

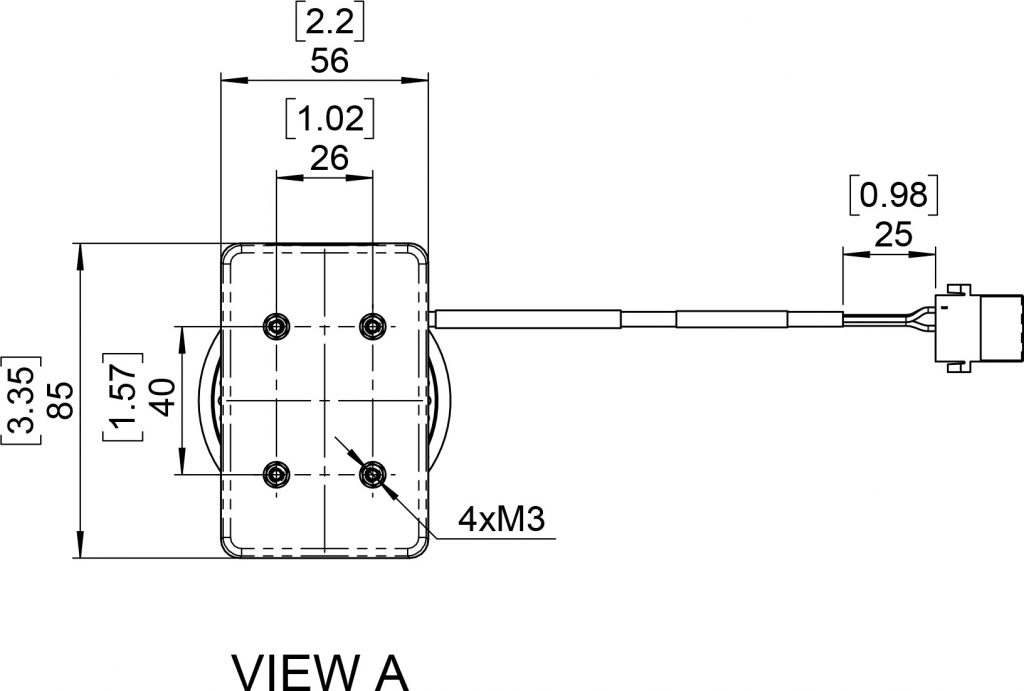

Drawing

Capella - drawing
drawing-A

Intensity

Landing Lens – 9°:  62.550 cd

Taxi Mode – AVE-ACL7THZC-M01 – 12×30°:  5.500 cd

Taxi Mode – AVE-ACL7THZC-M02 – 9°:  25.000 cd

Taxi Mode – AVE-ACL7THZC-M03 – 14°:  11.300 cd

Taxi Mode – AVE-ACL7THZC-M04 – 21°:  5.800 cd

Specification Sheet
