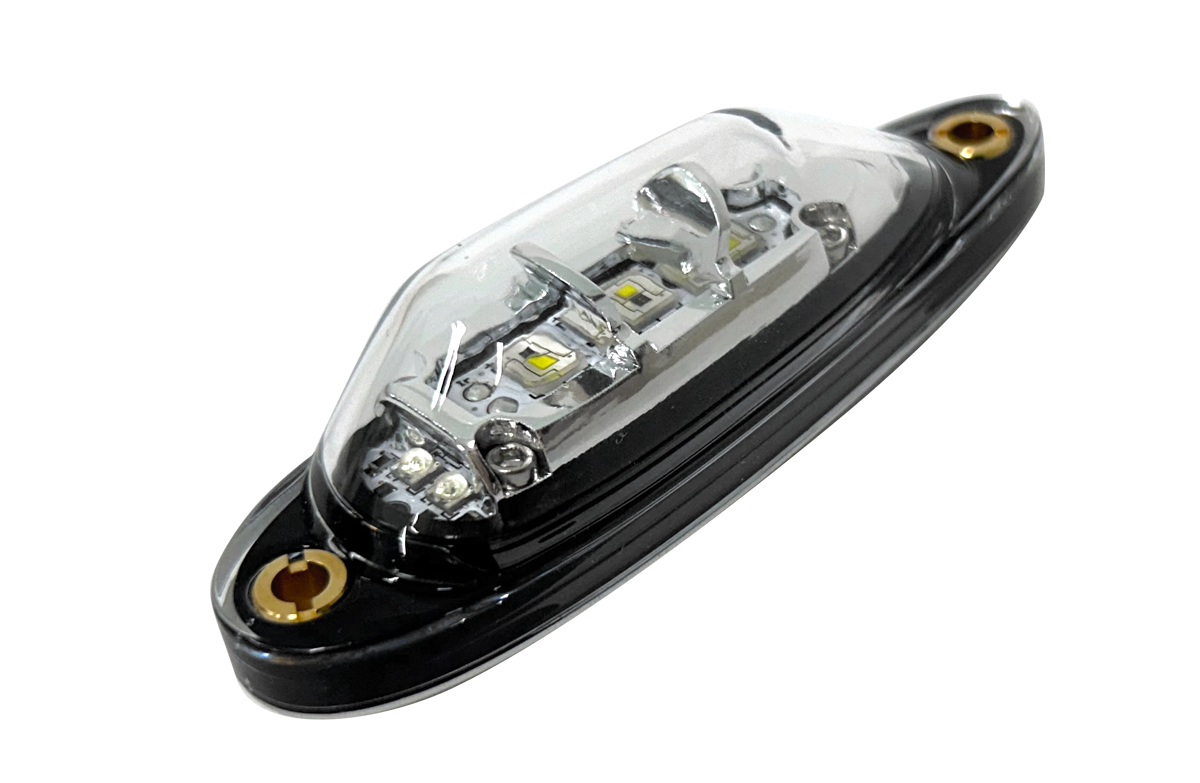

DroneV™ 4-in-1 – Wingtip navigation / strobe / position lights for drones and UAVs
World’s Smallest, Lightest and Brightest 4-in-1 Light for UAVs and Larger Drone
Incredibly tiny micro-circuitry featuring all the proprietary advantages of Aveo technology are packed into an extremely light aerodynamic form factor. Featuring 2019 CREE latest highest efficiency LEDs.
EU Drone Compliant
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification

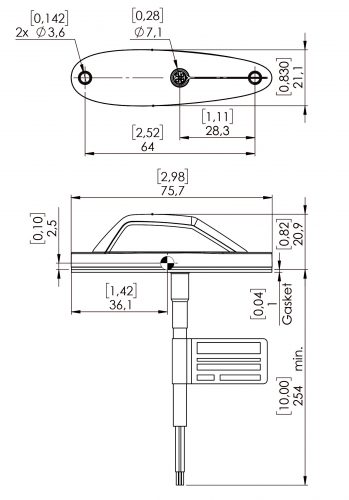

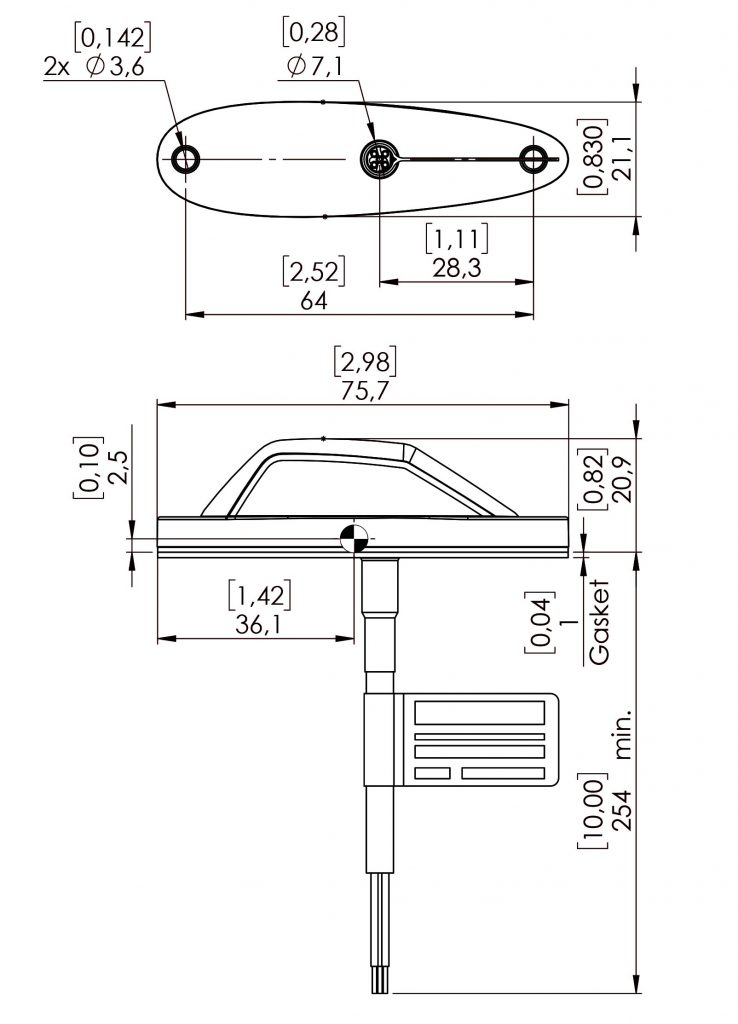

| Dimensions (mm): | 75.7 mm x 20.9 mm x 21.1 mm |
|---|---|
| Dimensions (inches): | 2.98” x 0.82” x 0.83” |
| Weight: | TBD |
| Operating Voltage Range: | 9 – 36 V DC |
| Input Current – Nav/Position: | 0.17 A @14V 0.1 A @28V |
| Input Current – Strobe VIS(peak): | 0.4 A @14V 0.25 A @28V |
| Input Current – Strobe IR(peak): | 0.2 A @14V 0.1 A @28V |
| Input Power– Nav/Position: | 2.38 W @14V 2.8 W @28V |
| Input Power – Strobe VIS(peak): | 5.6 W @14V 7 W @28V |
| Input Power – Strobe IR(peak): | 2.8 W @14V 2.8 W @28V |
| Average Current Consumption per Frame – Strobe: | 0.06 A |
| Input Power - Nav/Position: | 2.8 W @14V |
| Input Power - Strobe: | 5.04 W peak |
| Repetition Rate of Strobe: | 48 cycles per minute |
| Fuse (Circuit Breaker) Recommendation: | 2.5 A for position 2.5 A for strobe |
| Operating Temperature: | from -40°C to +85°C from -40°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Recommended Size of Mounting Screw: | M3, #6-32 |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 50V/1s |
| Under-Voltage Protection: | No |
| Over-Voltage Protection: | No |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
