DroneV - wing position strobe anti collision lights for drones and uavs

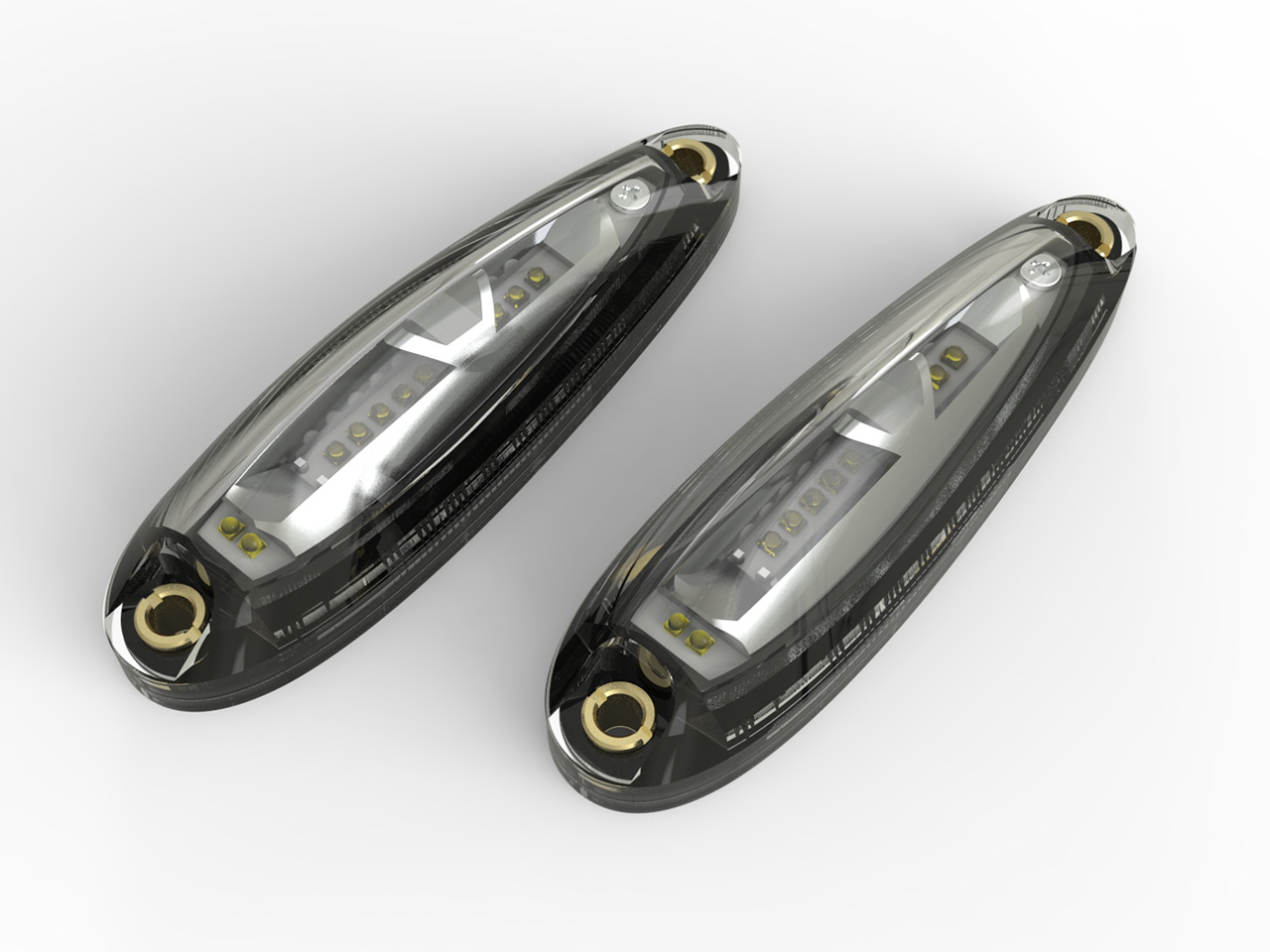

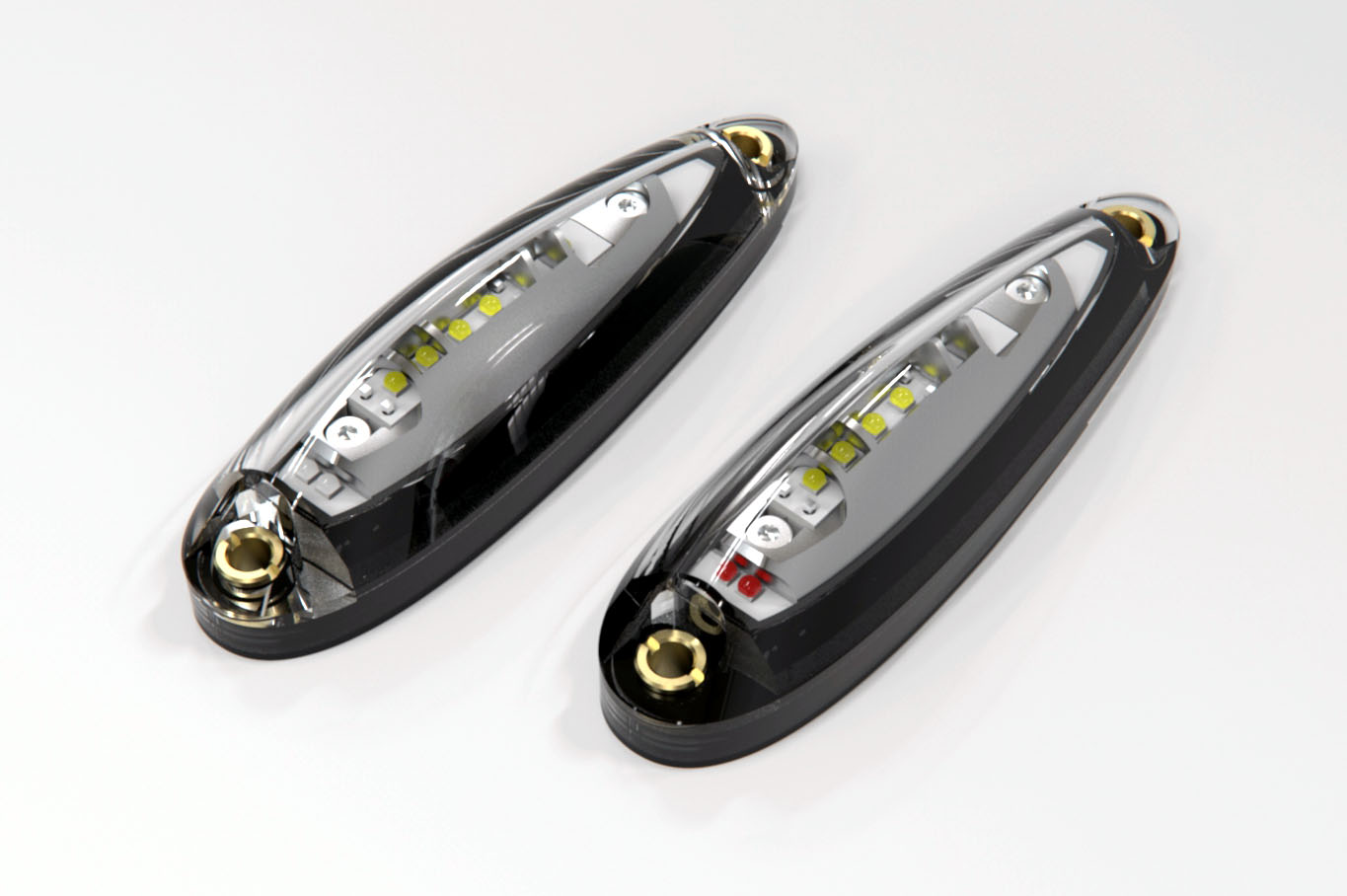

World’s Smallest, Lightest and Brightest 3-in-1 Light for UAVs and Larger Drone

Incredibly tiny micro-circuitry featuring all the proprietary advantages of Aveo technology are packed into an extremely light aerodynamic form factor. Featuring 2019 CREE latest highest efficiency LEDs.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

3-in-1

Specification

Dimensions (mm): 75.5 mm x 21.1 mm x 19 mm
Dimensions (inches): 2.973” x 0.830” x 0.744”
Weight: 34 g / 1.199 oz
Operating Voltage Range: 9 – 18 V DC
Input Current – Nav/Position: 0.2 A @14V
Input Current – Strobe: 0.36 A @14V (peak)
Average Current Consumption per Frame – Strobe: 0.06 A
Input Power - Nav/Position: 2.8 W @14V
Input Power - Strobe: 5.04 W peak
Repetition Rate of Strobe: 48 cycles per minute
Fuse (Circuit Breaker) Recommendation: 2.5 A for position
2.5 A for strobe
Operating Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Recommended Size of Mounting Screw: M3, #6-32
Reverse Polarity Protection: Yes
Transient Voltage: 50V/1s
Under-Voltage Protection: No
Over-Voltage Protection: No
Waterproof, Dust-proof, Vibration-proof: Yes

Drawing

DroneV-drawing

Installation Manual
