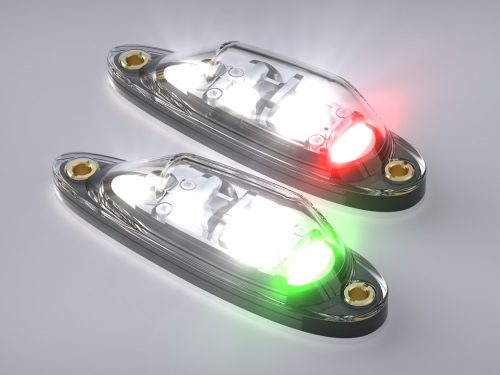

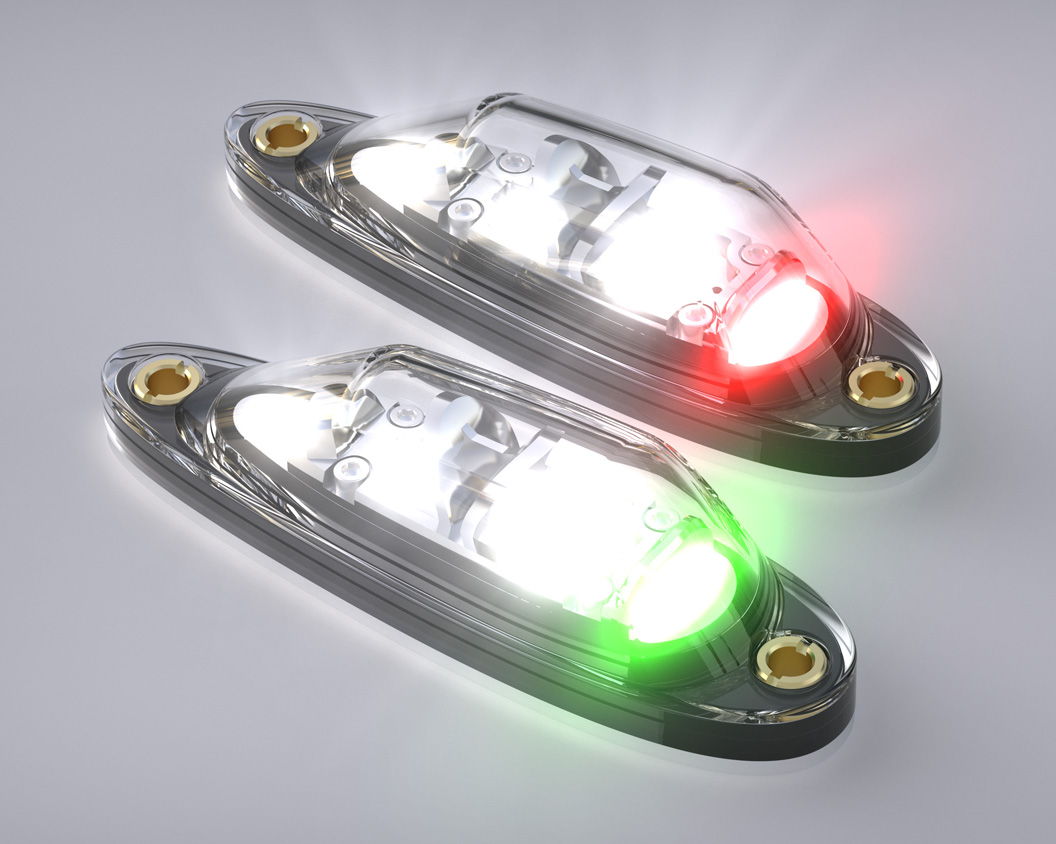

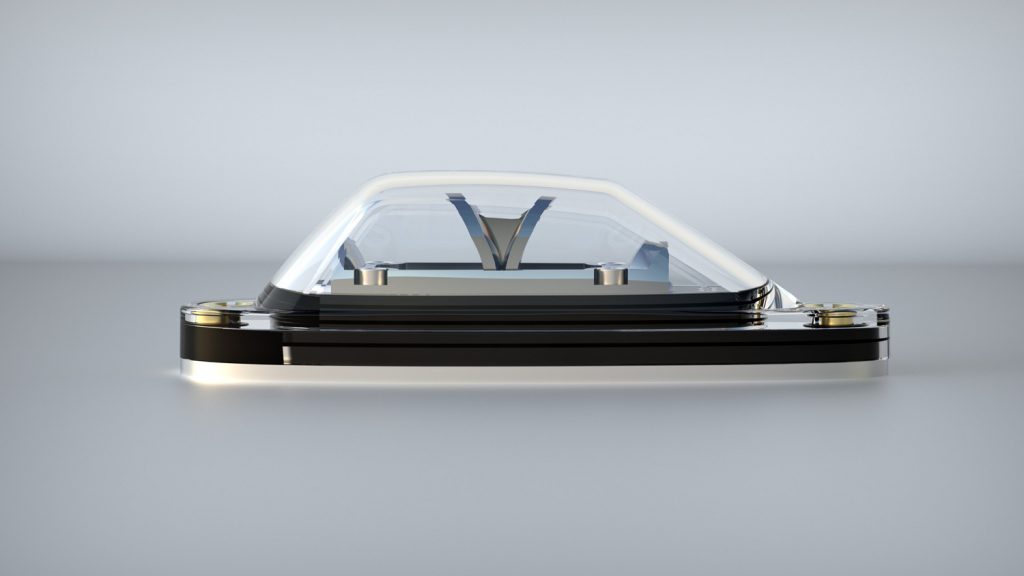

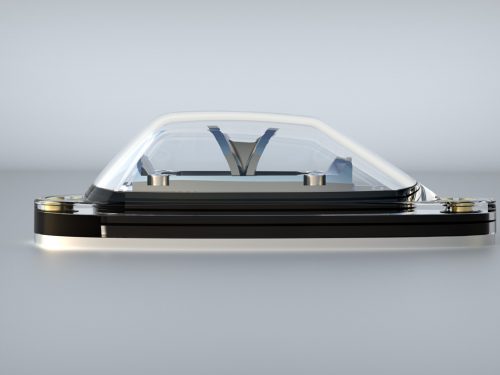

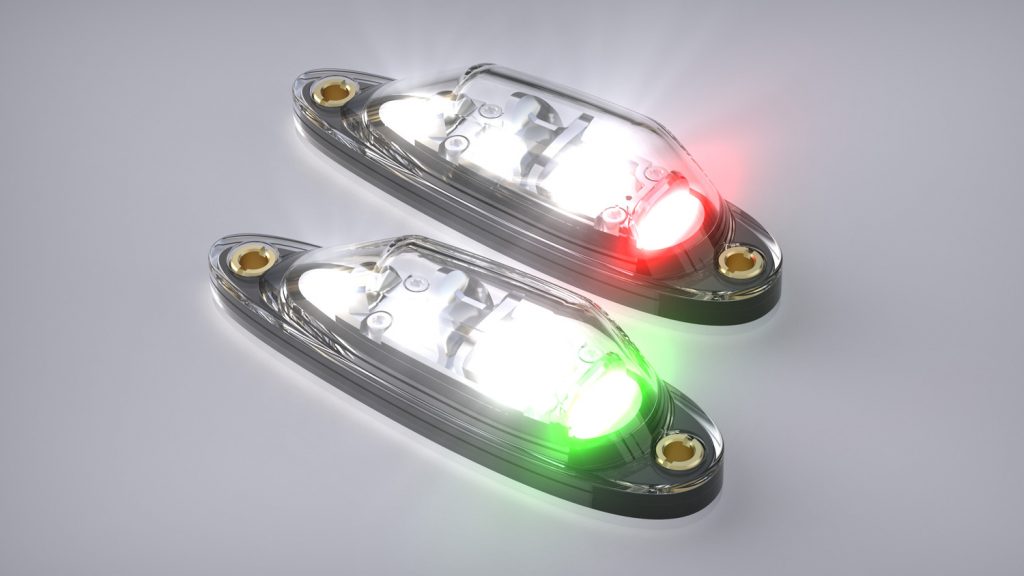

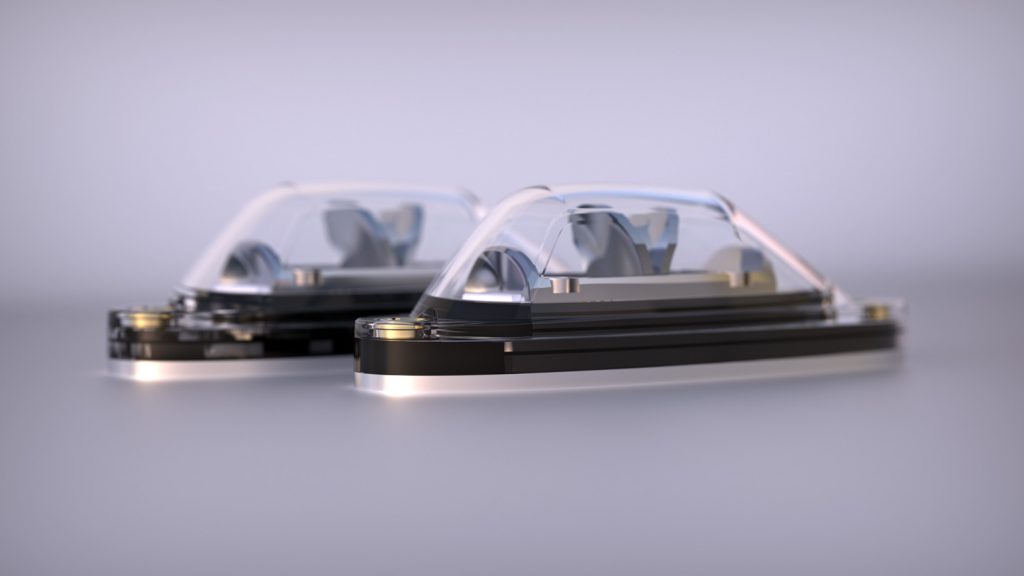

DroneV NXT™ – Wingtip navigation / strobe / position lights for drones and UAVs

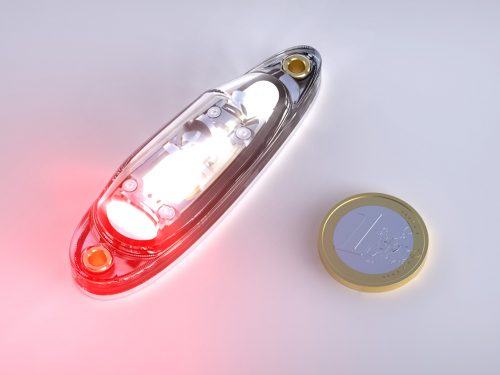

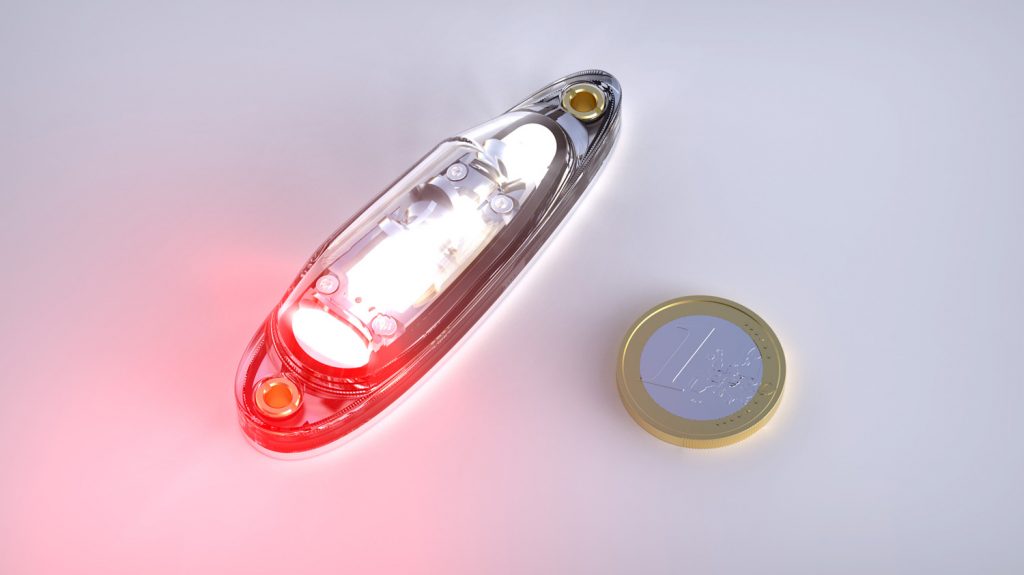

World’s Smallest, Lightest and Brightest 3-in-1 Light for UAVs and Larger Drone

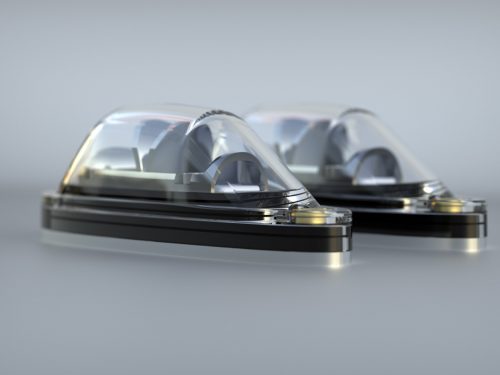

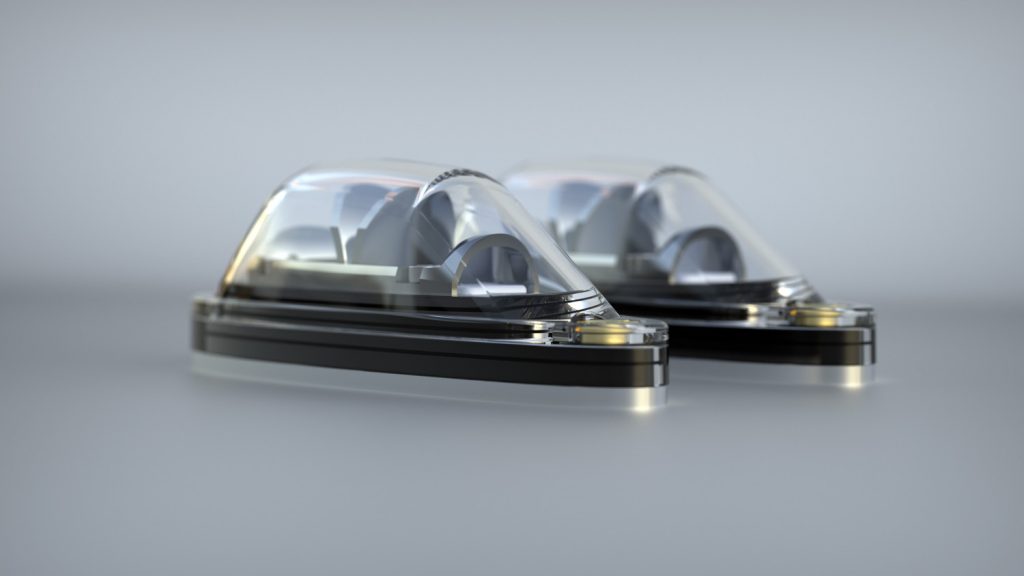

Incredibly tiny micro-circuitry featuring all the proprietary advantages of Aveo technology are packed into an extremely light aerodynamic form factor.
EU Drone Compliant
NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT
Specification

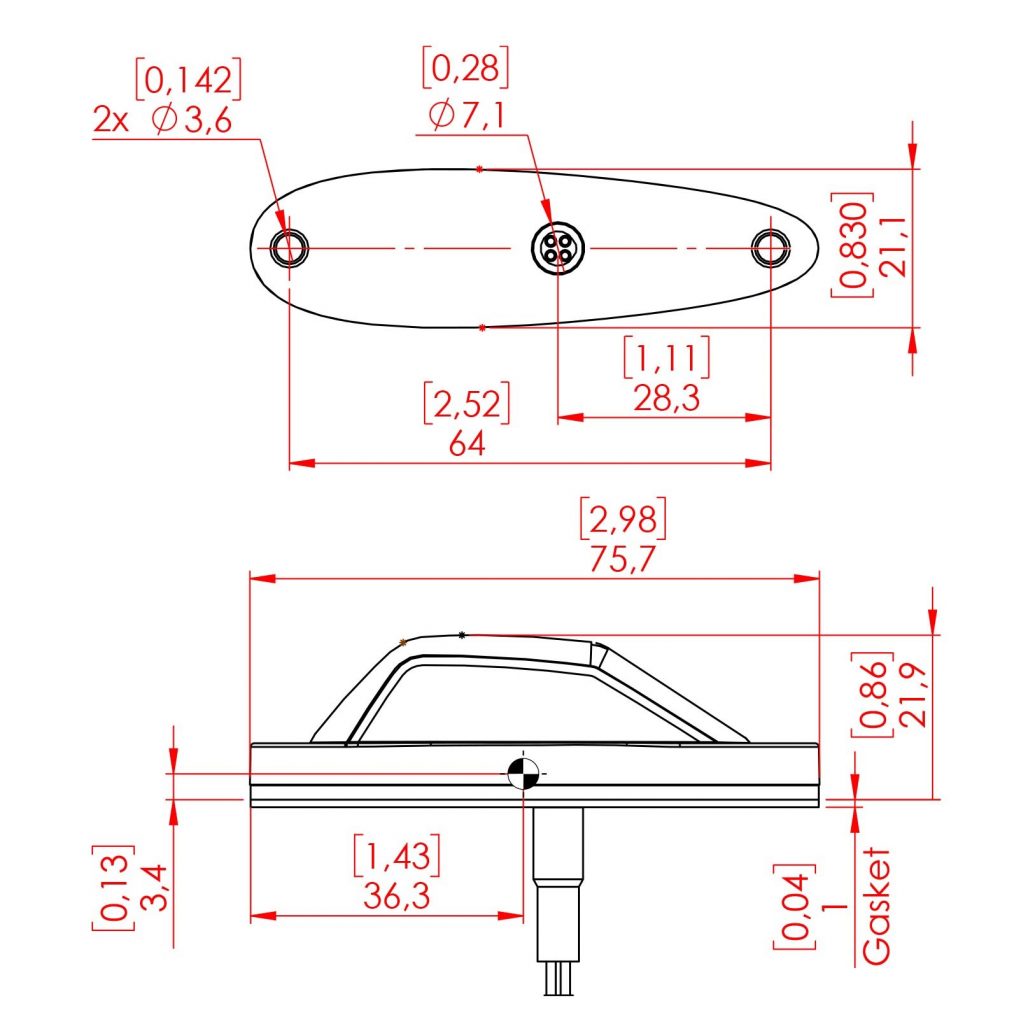

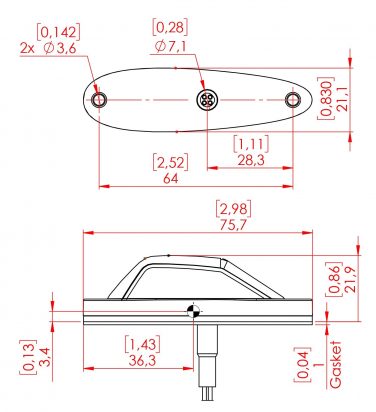

| Dimensions (mm): | 75.7 mm x 21.1 mm x 21.9 mm |
|---|---|
| Dimensions (inches): | 2.98” x 0.83” x 0.86” |
| Weight: | 30 g / 1.06 oz |
| Operating Voltage Range: | 9 – 36 V DC |
| Input Current – Nav/Position: | 0.13 A @14V 0.08 A @28V |
| Input Current – Strobe (peak): | 0.74 A @14V 0.42 A @28V |
| Input Power - Nav/Position: | 1.82 W @14V 2.24 W @28V |
| Input Power - Strobe (peak): | 10.36 W @14V 11.76 W @28V |
| Recommended Size of Mounting Screw: | M3x16 / DIN 7984 or #6-32x5/8" Low-Profile SHCS |
| Torque requirement for screw: | 1.0 Nm for M3x16 / DIN 7984 8.85 in-Ib for # 6-32x5/8" |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 90V/1s |
| Over-Voltage Protection: | Yes |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
