HeliHover – Hover Illumination Light

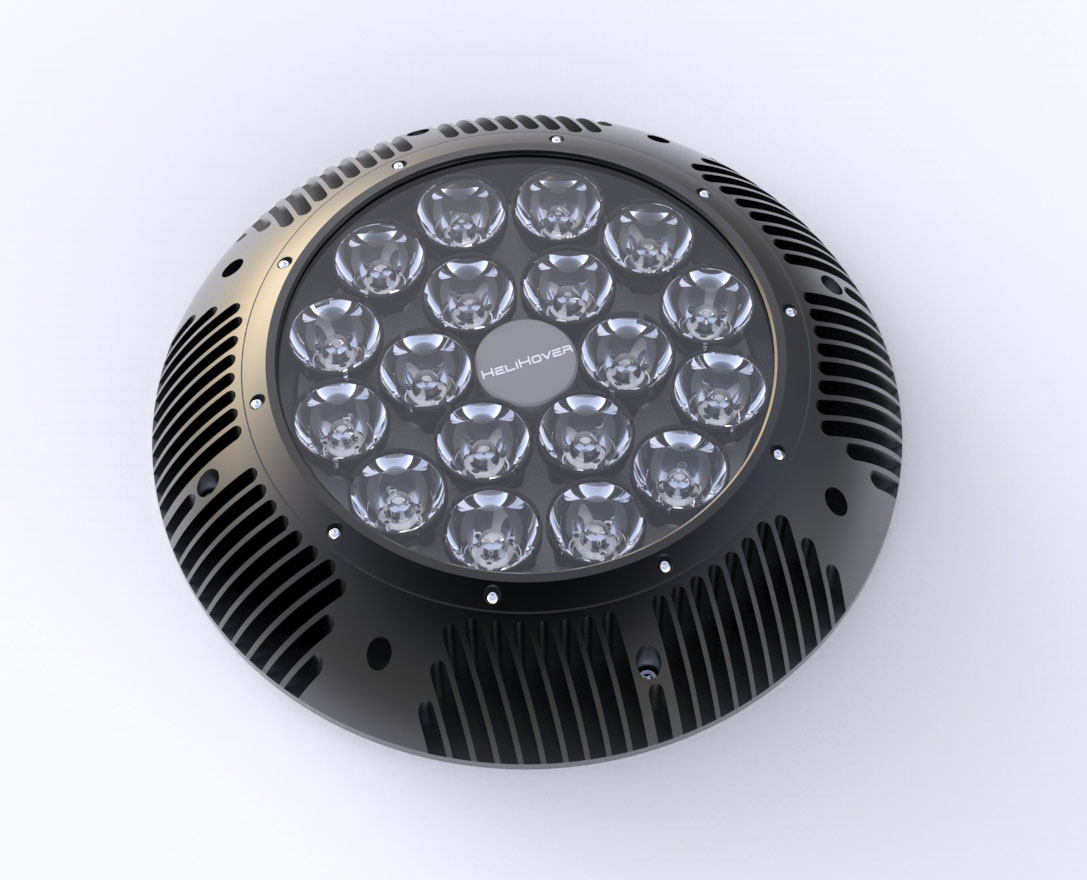

HeliHover - Helicopter hover illumination light

Hover Illumination

AveoEngineering introduces the exclusive hover illumination light for helicopters.

Available in different sizes, anodizing colors and lenses.



Specification

Input voltage: from +18 to +36 VDC
Input current: 8.2A @ 28V DC
Input power: 230W @ 28V DC typ.
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Lens (Beam pattern): Ultra Narrow: 7°
Narrow: 12°
Medium: 27°
Color and shade: Cool White
Overheat protection: Yes (temperature dependent decrement of intensity)
Weight: 3.42 kg / 7.54 lb
Useful life: not less than 30.000 aircraft flight hours
Waterproof, Dust-proof, Vibration-proof: Yes

Drawing

HeliHover - drawing

Intensity

7° – Ultra Narrow: 880,000 cd

12° – Narrow: 335,000 cd

27° – Medium: 73,000 cd

Installation Manual
