AveoEngineering introduces the exclusive next-generation landing/taxi/wigwag light module. The undeniable favorite in all global side-by-side comparison tests, the Hercules features 3 modes in its standard build…. Landing, Taxi or WigWag.

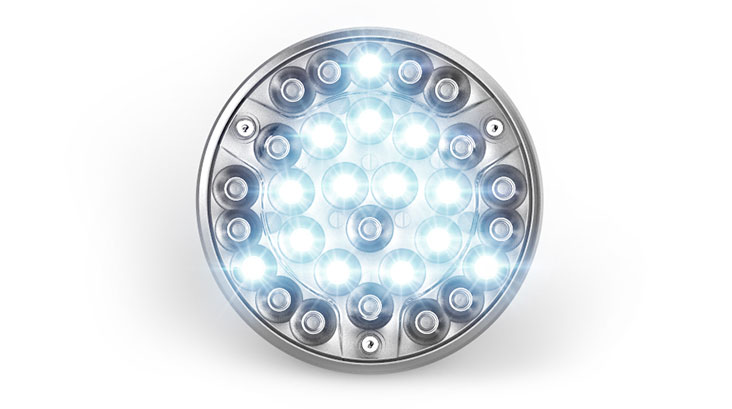

14 High brightness LEDs for LANDING light coverage
Packed with 14 ultra high brightness CREE aviation white LEDs for LANDING mode.

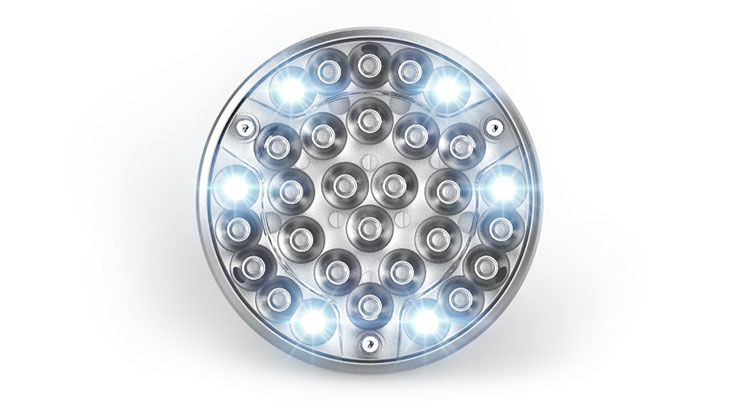

6 High brightness LEDs for TAXI and WIGWAG mode
Packed with 6 ultra high brightness CREE aviation white LEDs for TAXI and WIGWAG mode.

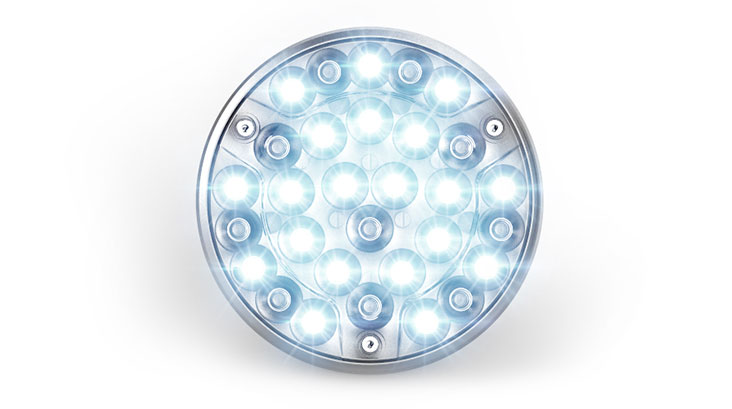

20 High brightness LEDs for FULL POWER with HIGH/LOW function
Easy to install
Available with a variety of mounting bracket solutions.
Waterproof / Shockproof / Dust-proof
All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.
The Hercules™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!
HERCULES 20 Hi/Lo
AVE-H20MWSSOH-00A (with Aveo bracket)
|Number of LED:||20|
|Input voltage:||from +9 to +36 VDC|
|Current:||- Taxi -> max. 2.2A (12V )
- Landing -> max. 4.9A (12V )
- Landing + Taxi -> max. 7.0A (12V )
|Output power [Hi/Low]:||
- Taxi -> 23/11W
|Voltage protection:||80V, both polarities|
|Under-voltage lockout:||8.5V , not more|
|Over-voltage lockout:||37V, not less|
|Ambient temperature:||from -55°C to +85°C
(from -67°F to +185°F)
a. Taxi, steady light - 6 LEDs
|Beam Pattern:||a. Landing: 12° Vert 12° Horizont
b. Taxi: 12° Vert 12° Horizont
|Light Intensity (calculated):|| a. 70.000 cd - Landing Hi
b. 38.000 cd - Landing Lo
c. 24.000 cd - Taxi Hi
d. 14.000 cd - Taxi Lo
e. 94.000 cd - Landing + Taxi Hi
f. 52.000 cd - Landing + Taxi Lo
|Color and shade:||cool white, 5000K – White|
|Programmable Soft-Start:||less than 50mS|
|Overheat protection:||temperature dependent decrement intensity|
|Weight:||less than 1.08lbs (490 g) with Aveo bracket|
|Useful life:||not less than 30.000,0 aircraft flight hours|
|Dimension:||4.33” Round x 1.79” (D = 110mm, H = 45.7mm)|
|Material:||a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA
