Hercules Drop-In – PAR 36 Landing or Taxi Light

HerculesDropIn-beforeHerculesDropIn-after

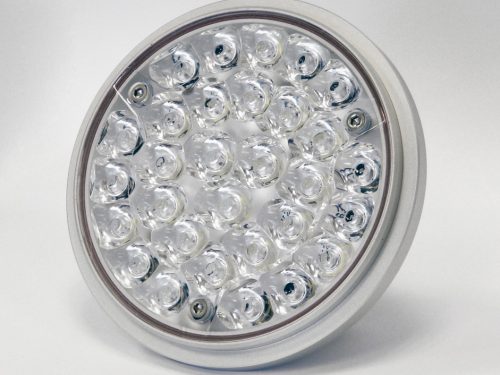

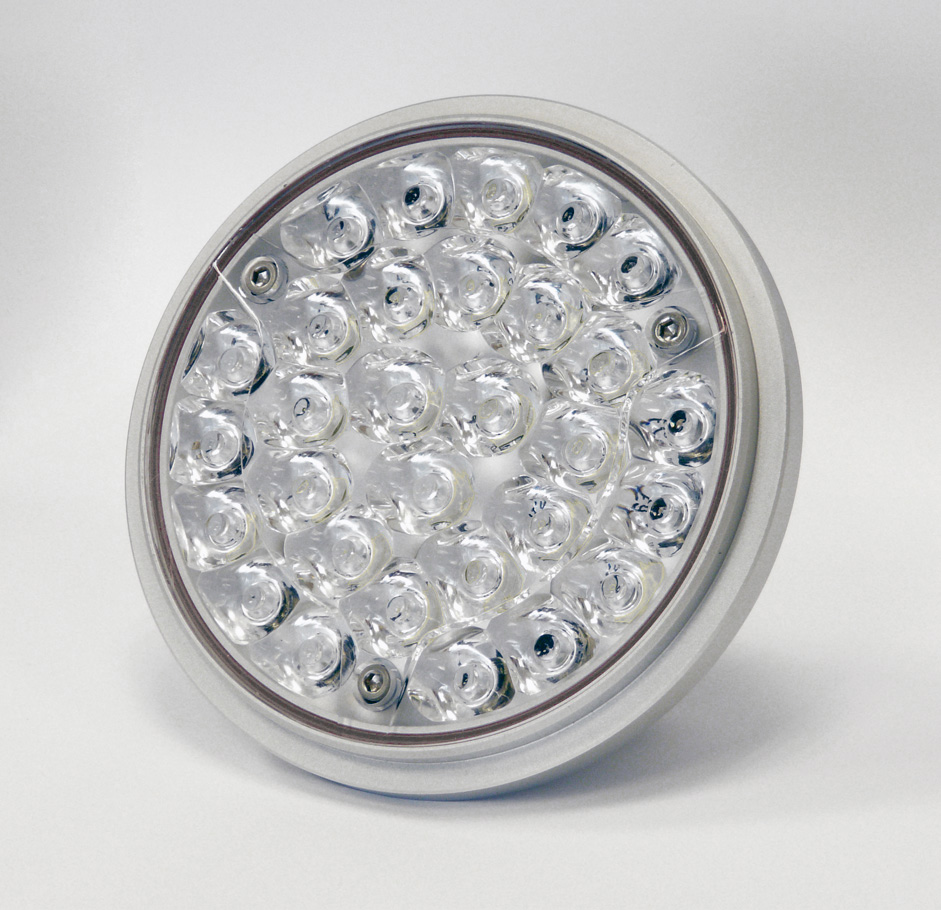

AveoEngineering introduces the exclusive next-generation AveoMaxx Hercules™ Drop-In ->Replacement for Legacy Lights. A PAR 36 drop-in with the legendary Hercules power!

Features

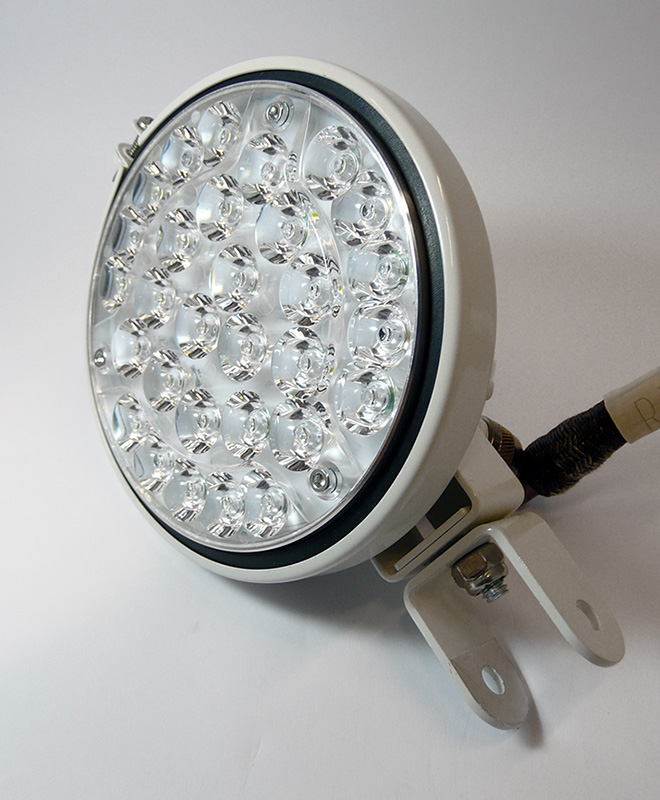

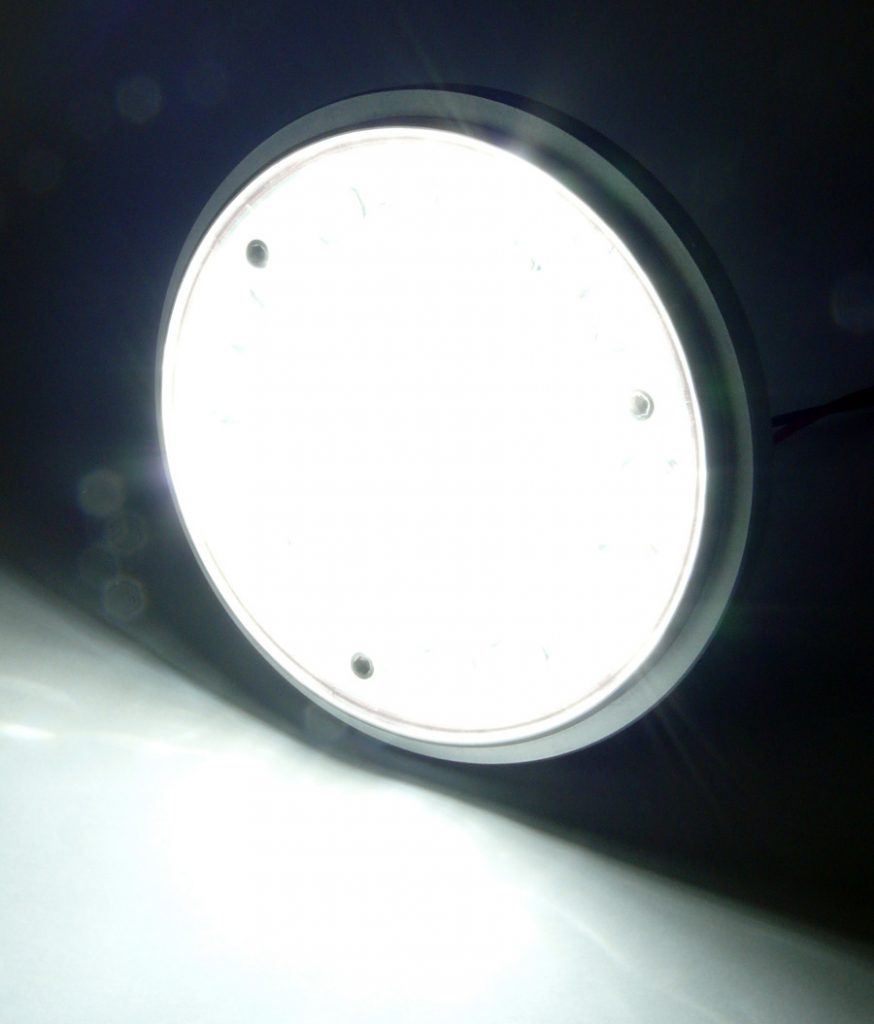

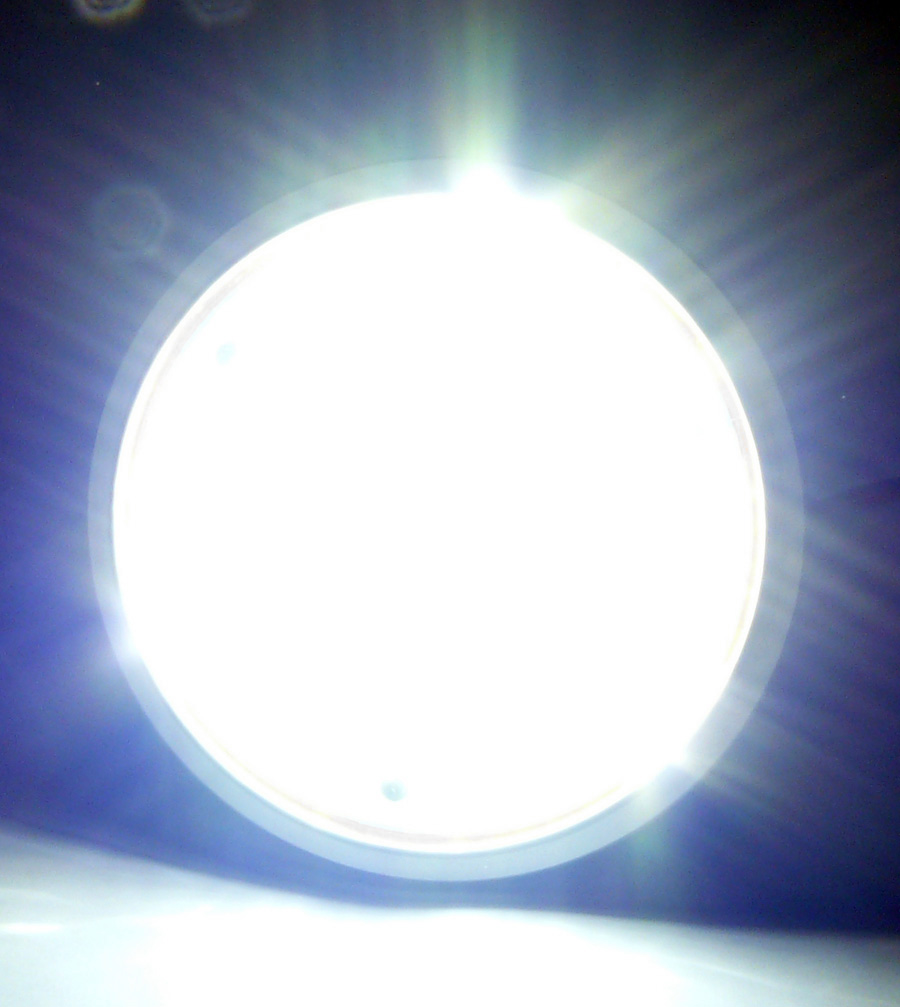

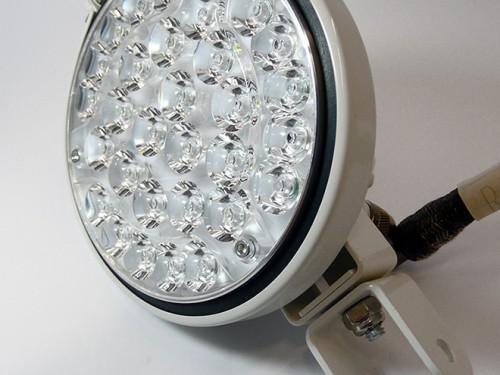

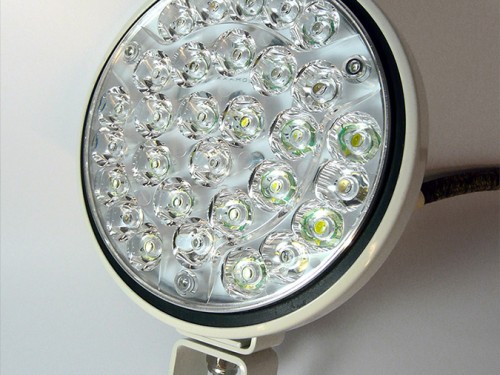

30 High brightness LEDs for LANDING or TAXI light coverage

Packed with 30 ultra high brightness CREE aviation white LEDs for LANDING or TAXI light coverage

Lens with beam angle for LANDING light coverage – 12°

Lens with beam angle for TAXI light coverage – 40° x 20°

Easy to install

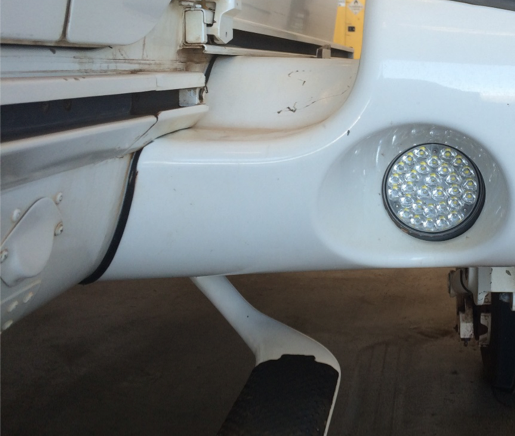

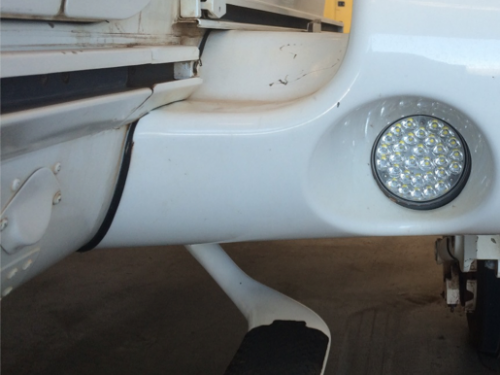

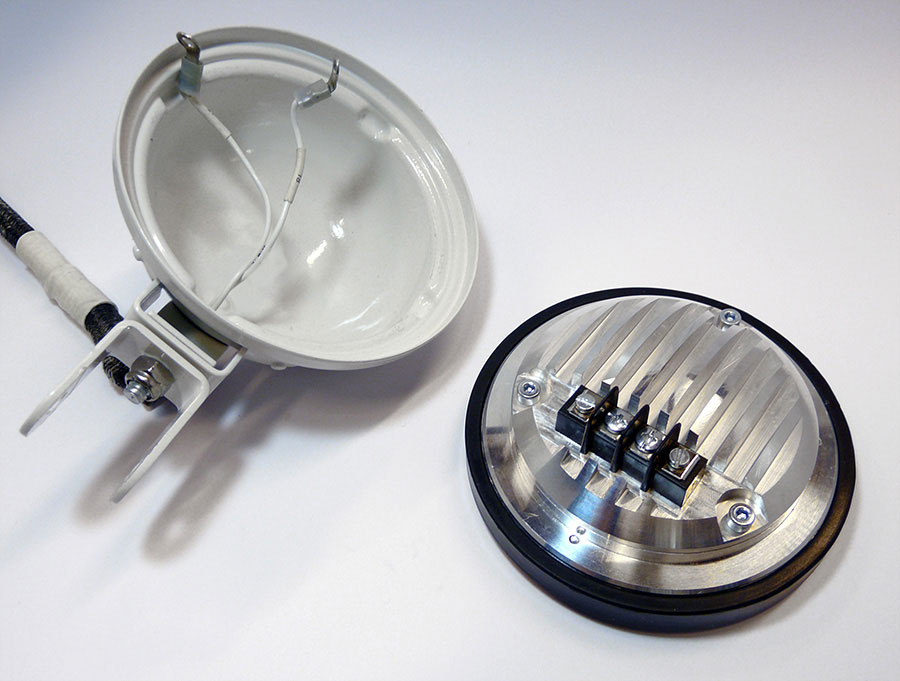

This light drops-in to existing PAR 36 legacy housings in seconds

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Environmentally Friendly

The Hercules™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

Number of LED: 30
Input voltage: from +9 to +36 VDC
Input current: 3.2A at 28V ±10%
Output power: 90 W
Transcend voltage: 2 seconds +80V
Under-voltage lockout: 9 V DC, not more
Over-voltage lockout: 36 V DC, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Lens (Beam pattern): Landing light version:
10° viewing angle - symmetrical beam

Taxi light version:
40°x 20° viewing angle - asymmetrical beam
P/N: Hercules Drop-In Taxi
AVE-H30TATSNT-T0A

Hercules Drop-In Landing
AVE-H30TATSNL-T0A
Color and shade: 5700 - 6500 K
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: 460g / 1.014lb
Useful life: not less than 30.000,0 aircraft flight hours
Dimension: 4.39” Round x 2.04” (D = 111,5 mm, H = 51,7mm)

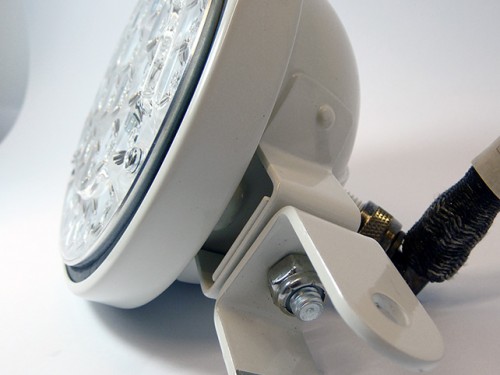

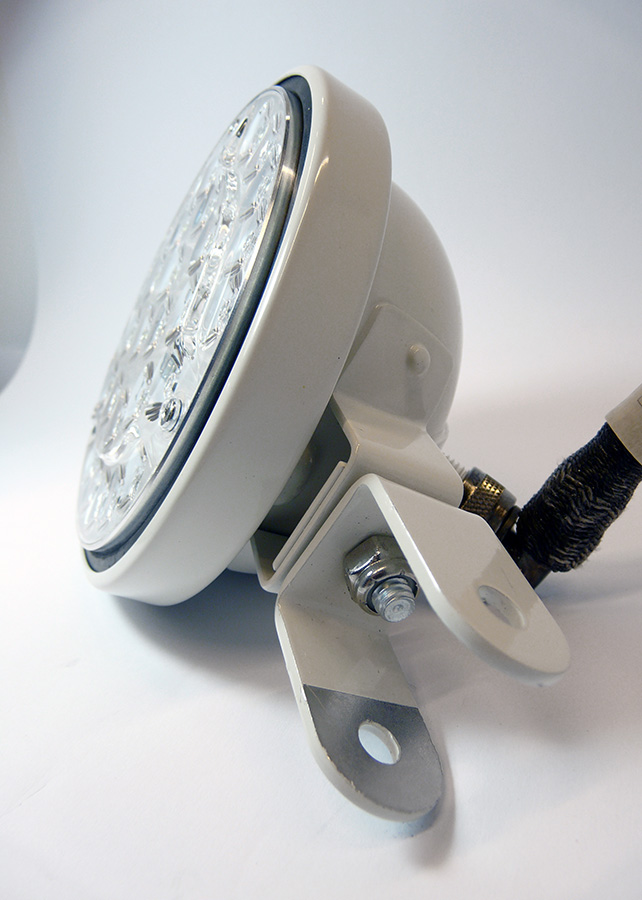

Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

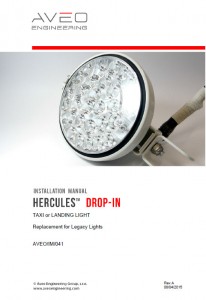

Installation Manual
