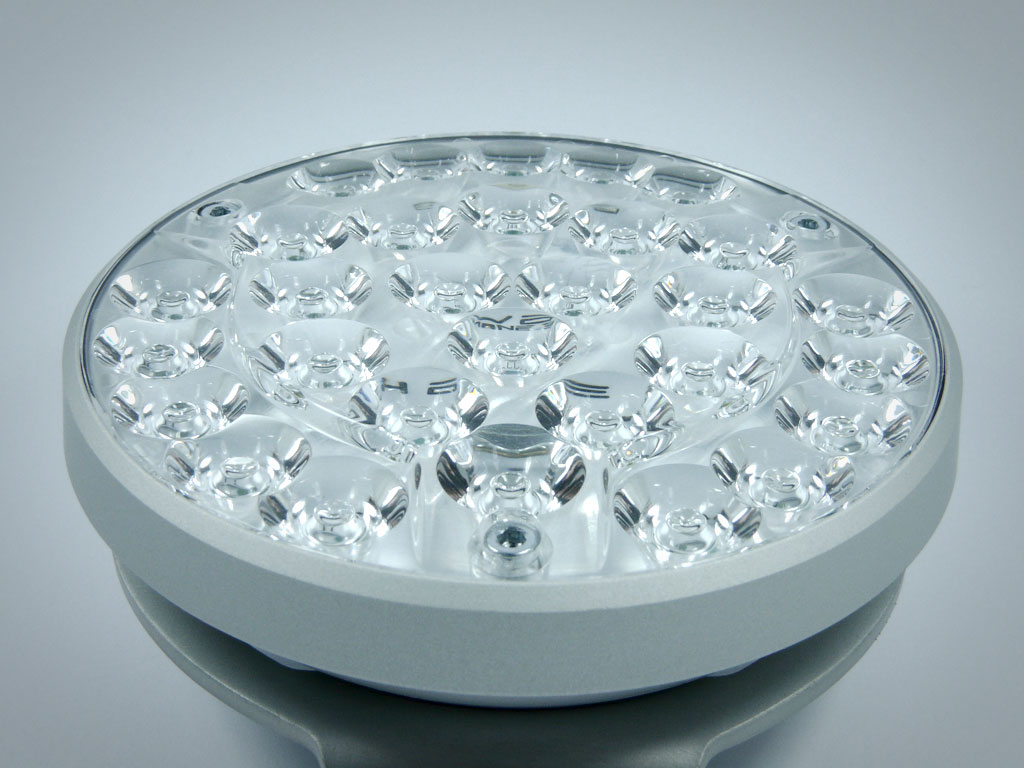

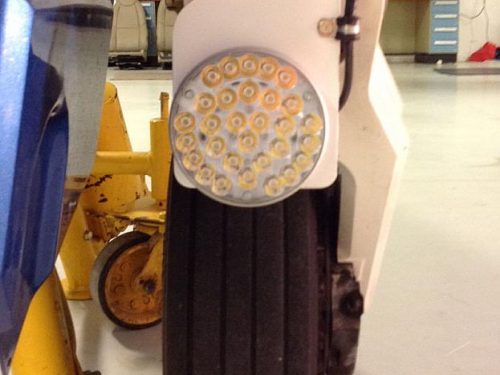

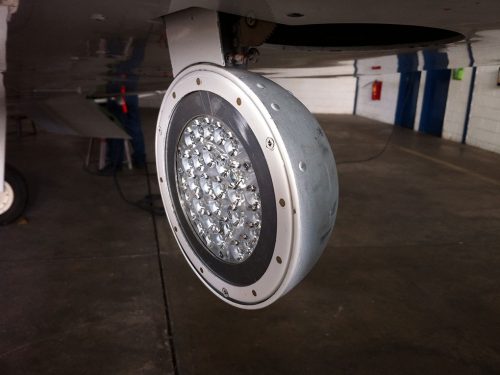

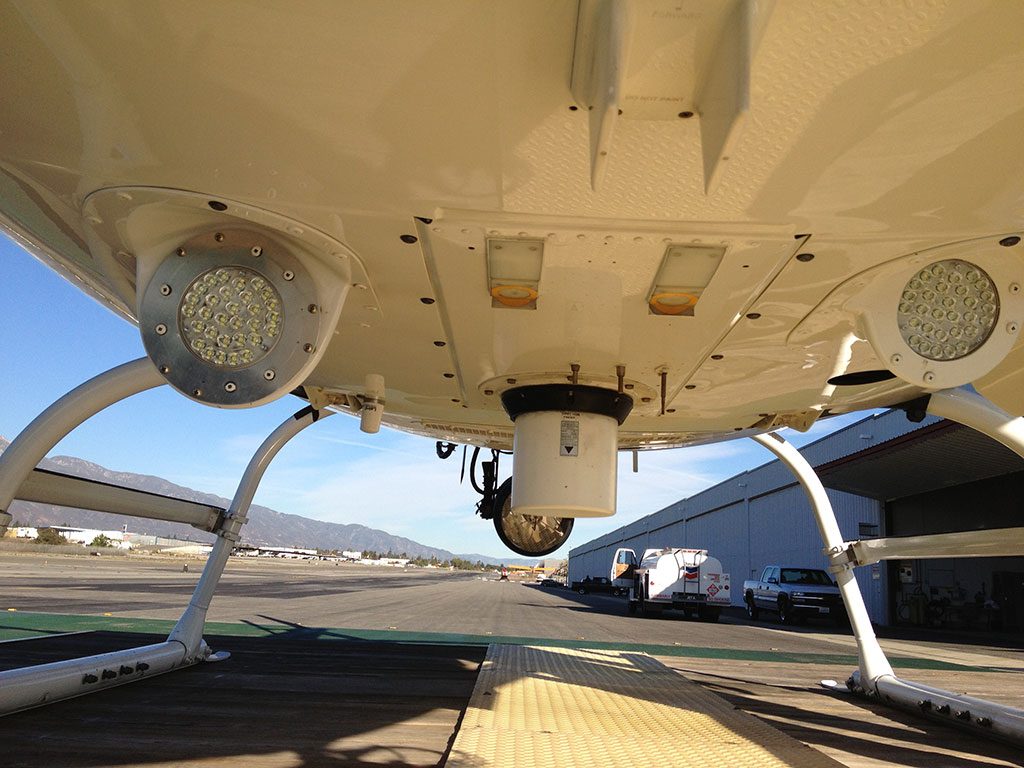

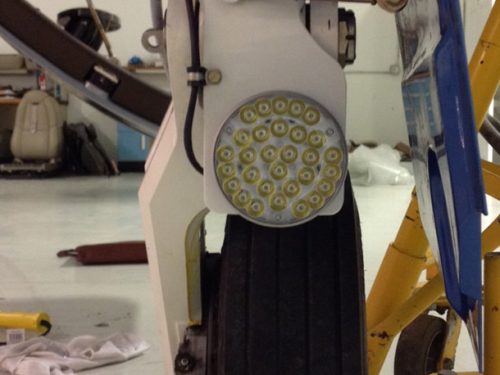

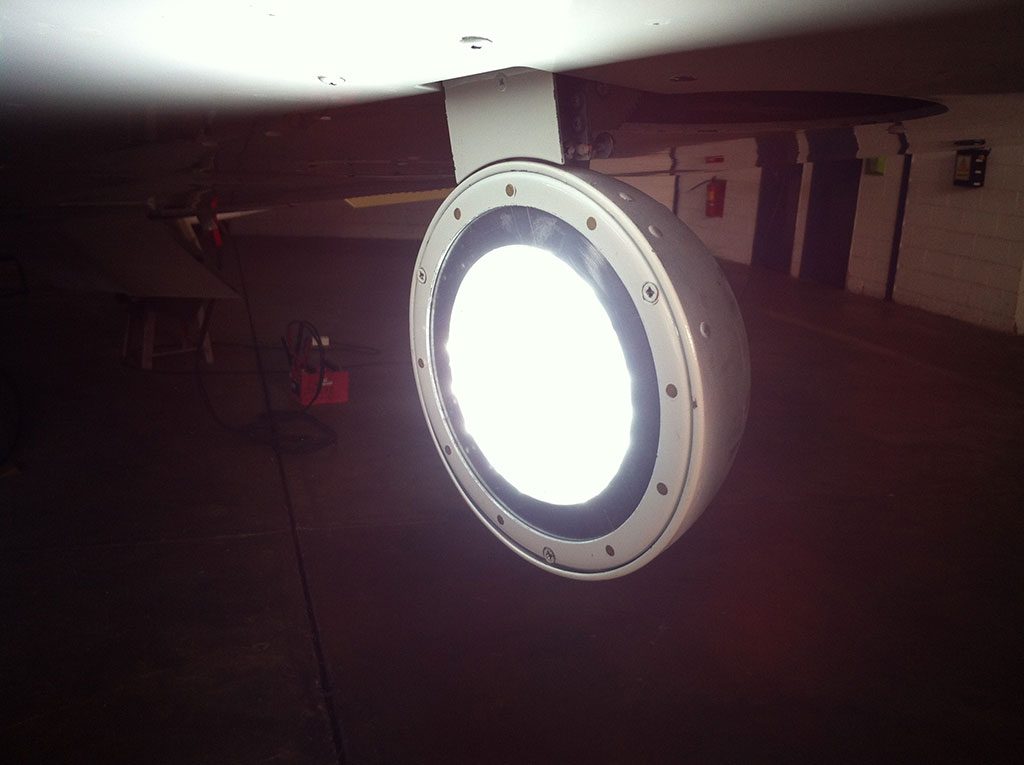

Hercules H30 – Landing, Taxi and WigWag Light

Affordable Hi-Performance Light

  • Landing

  • Taxi

  • WigWag Function

  • Hi-Lo Function

  • Simple installation with holder

  • High performance

  • PAR 36

  • AveoMaxx Hercules H30 – no holder – AVE-H30MWSSNH-00A
  • AveoMaxx Hercules H30 – with holder O – AVE-H30MWSSOH-00A
  • AveoMaxx Hercules H30 – with holder Q – AVE-H30MWSSQH-00A

Specification

Dimensions: See drawing
Weight: AVE-H30MWSSNH-00A 486 g / 1.07 lb
AVE-H30MWSSOH-00A 517 g / 1.14 lb
AVE-H30MWSSQH-00A 504 g / 1.11 lb
Operating Voltage Range: 9 – 36 V DC
Input Current (Landing): 4.36A @14VDC
2.56A @28VDC
Input Current (Taxi): 2.6A @14VDC
1.52A @28VDC
Input Current (Landing + Taxi): 6.96A @14VDC
4.08A @28VDC
Input Power Hi/Lo
(Landing):
61.0W / 37.5W @14VDC
71.7W / 38.6W @28VDC
Input Power Hi/Lo
(Taxi):
36.4W / 22.0W @14VDC
42.6W / 23.5W @28VDC
Input Power Hi/Lo
(Landing + Taxi):
97.4W / 59.5W @14VDC
114.24W / 62.16W @28VDC
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Transient Voltage: +80VDC, both polarities
Under-Voltage Lockout: +8.5VDC, not more
Over-Voltage Lockout: +37VDC, not less
Beam Angle: 12°
Reverse Polarity Protection: Yes
Overheat Protection: Yes (temperature dependent decrement of intensity, see note below)
Waterproof, Dust-proof, Vibration-proof: Yes
Useful Life: not less than 30,000 aircraft flight hours

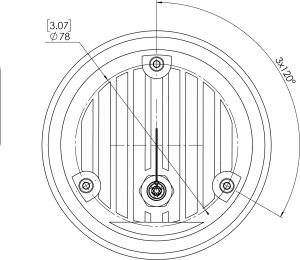

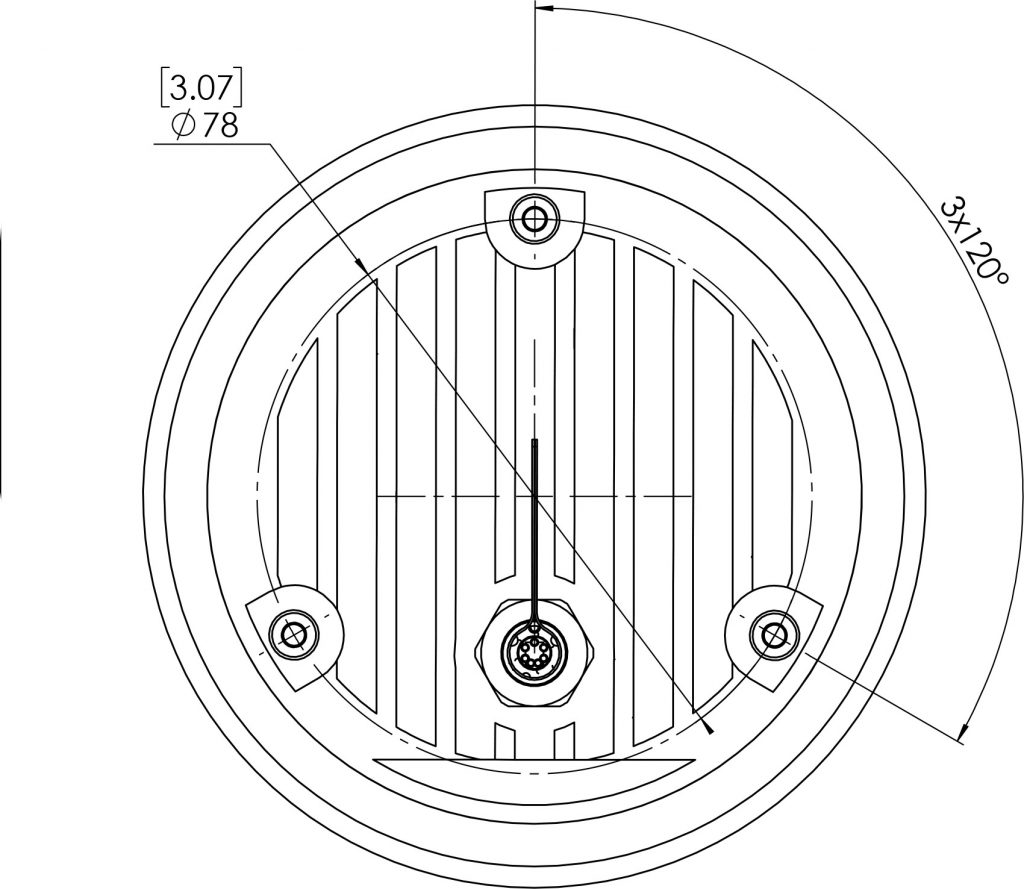

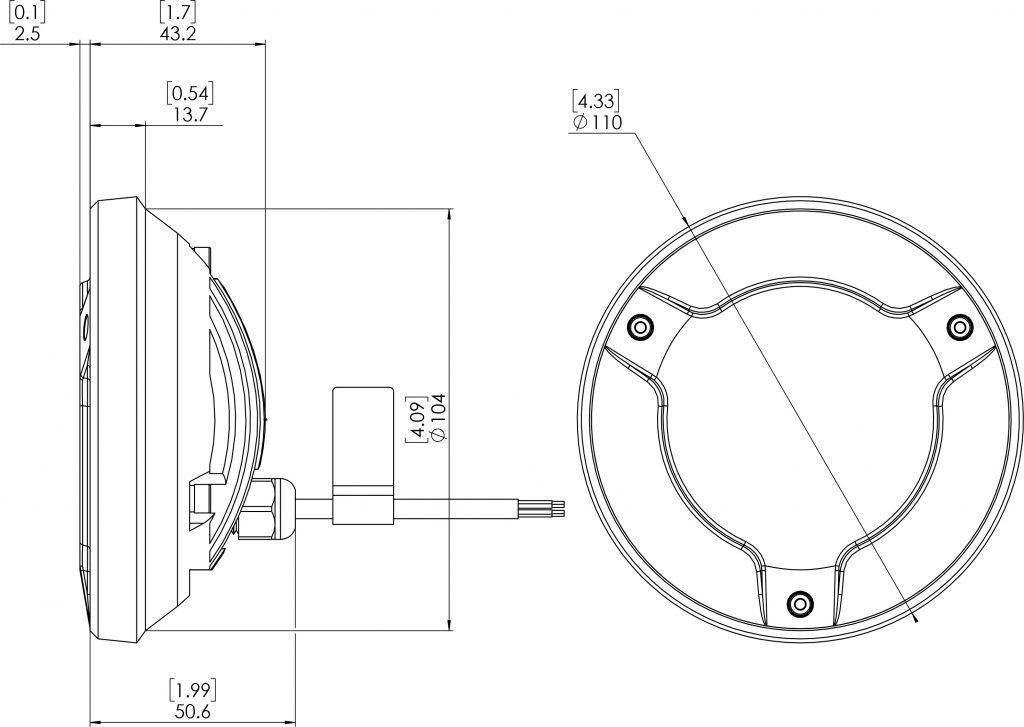

Drawing

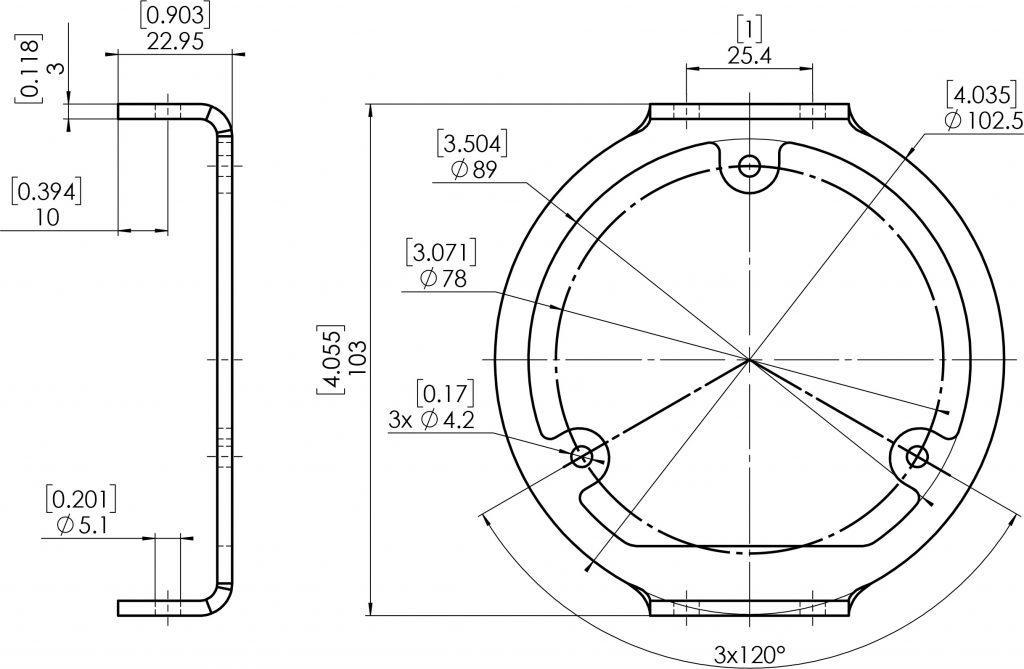

O-holder

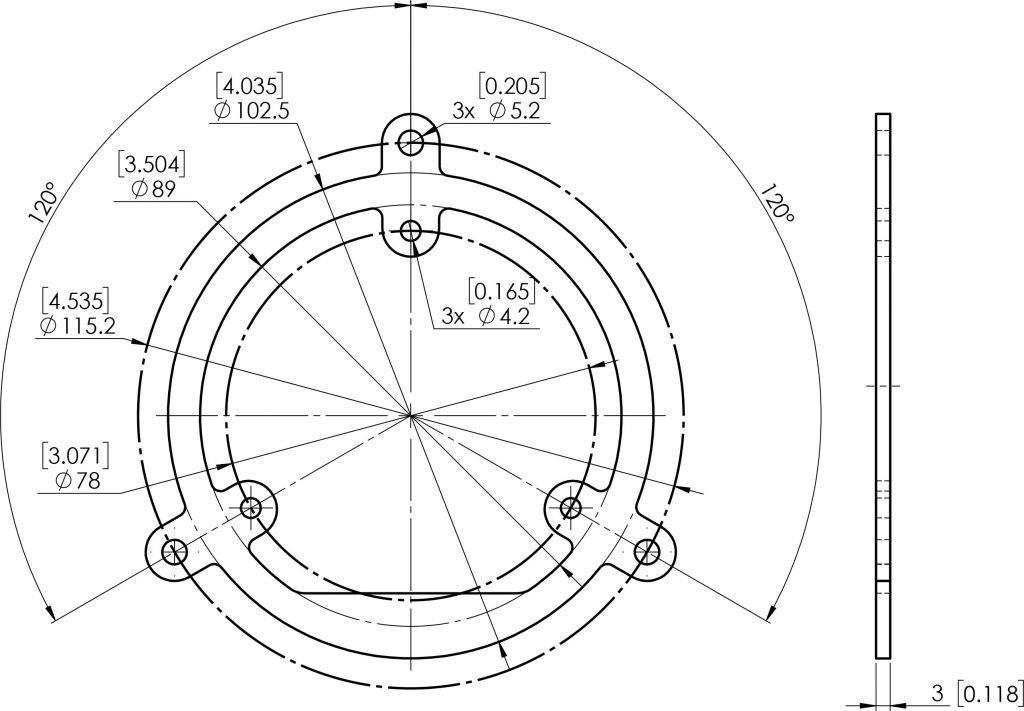

Q-holder

Specification Sheet
