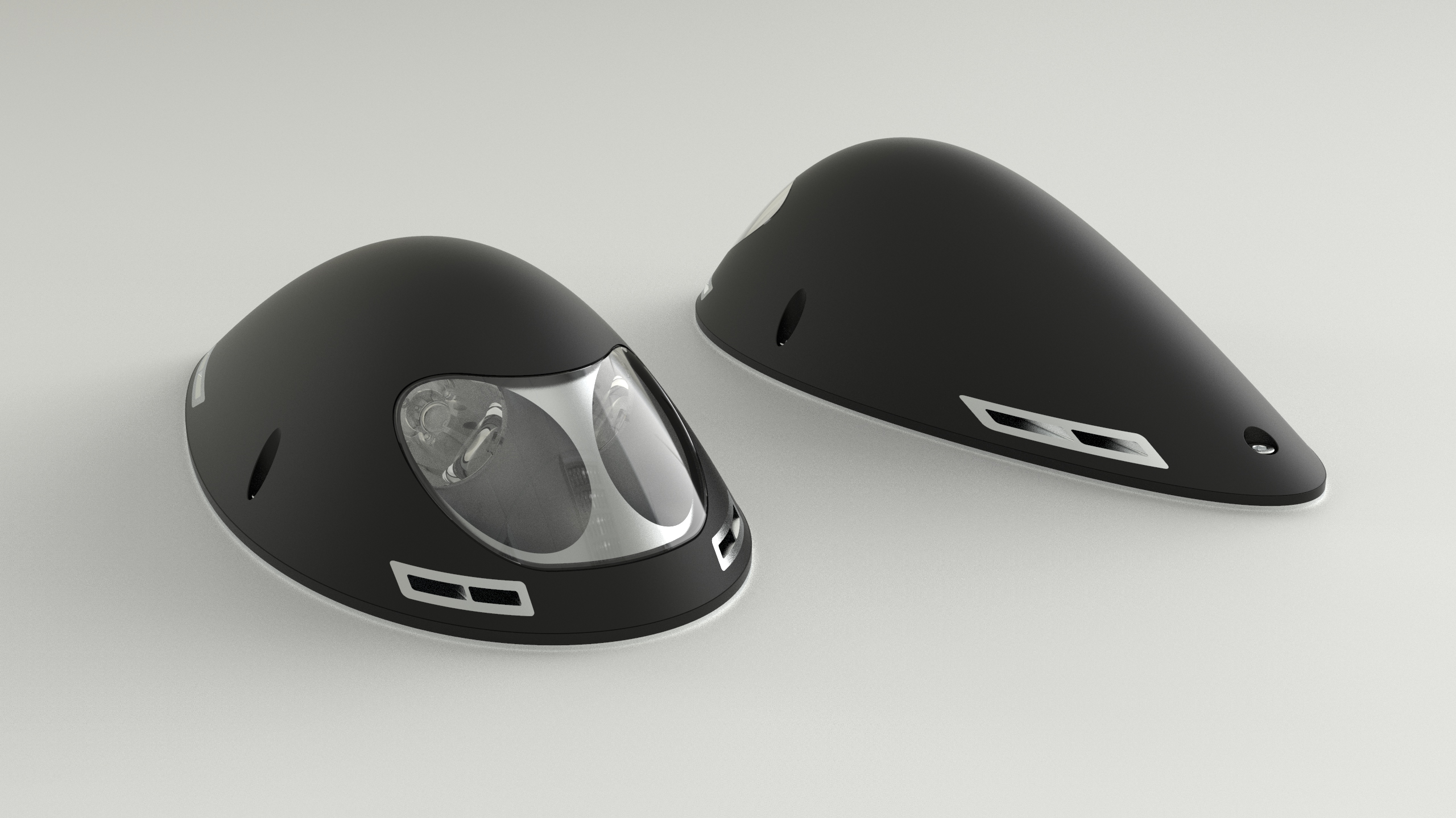

Landing or Taxi LED light

The new Pacifica™ is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics, our unmatched power and led management circuitry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Specification

Dimensions (mm): 298 mm x 135 mm x 82 mm
Dimensions (inches): 11.74“ x 5.31“ x 3.24“
Weight: approx 220g / 7.76 oz
Operating Voltage Range: 9 – 36 VDC
Input Current (at 25°C) – Landing:
Input Current (at 25°C) –Taxi:
0.86A @28V
0.40A @28V
Output Power – Landing:
Output Power – Taxi:
20.5W
9.6W
Transient Voltage: 2 second +80V
Under-Voltage Lockout: +9VDC, not more
Over-Voltage Lockout: +36VDC, not less
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: YES
Color: White finish
Black finish
Chrome finish
Intensity – Landing White Beam: 80,000 cd
Landing Lens – Viewing Angle:
Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES
Pacifica Narrow White
Pacifica Narrow Blue
Pacifica Narrow IR
Pacifica Middle White
Pacifica Middle Blue
Pacifica Middle IR
Pacifica Wide White
Pacifica Wide Blue
Pacifica Wide IR
AVE-PF2NW-D01
AVE-PF2NB-D01
AVE-PF2NI-D01
AVE-PF2MW-D01
AVE-PF2MB-D01
AVE-PF2MI-D01
AVE-PF2WW-D01
AVE-PF2WB-D01
AVE-PF2WI-D01

Drawing

Installation Manual

Gallery
