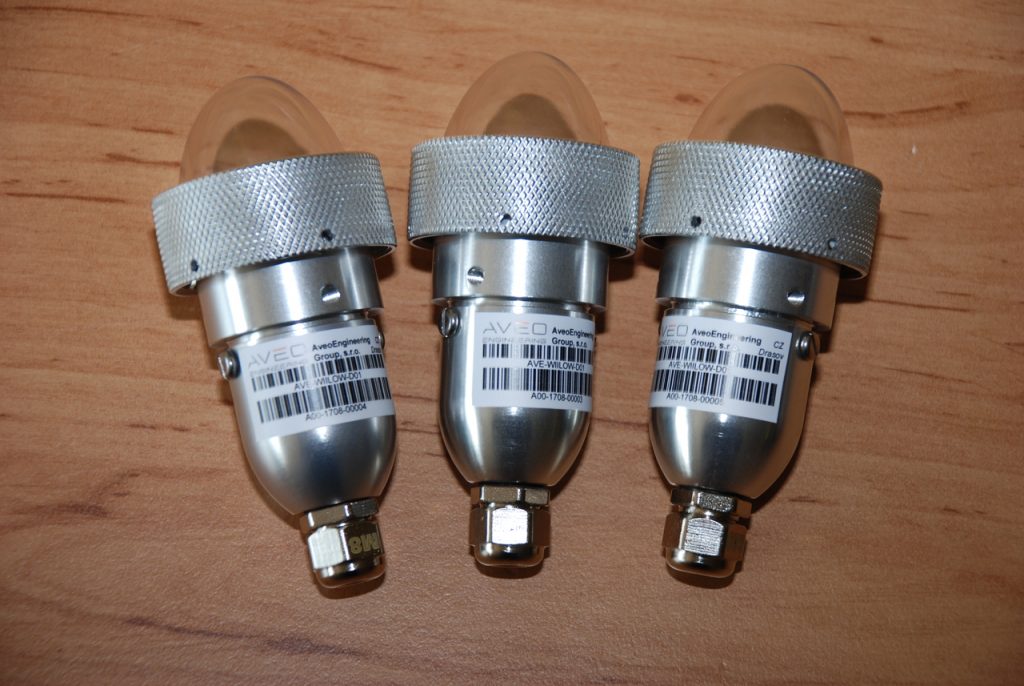

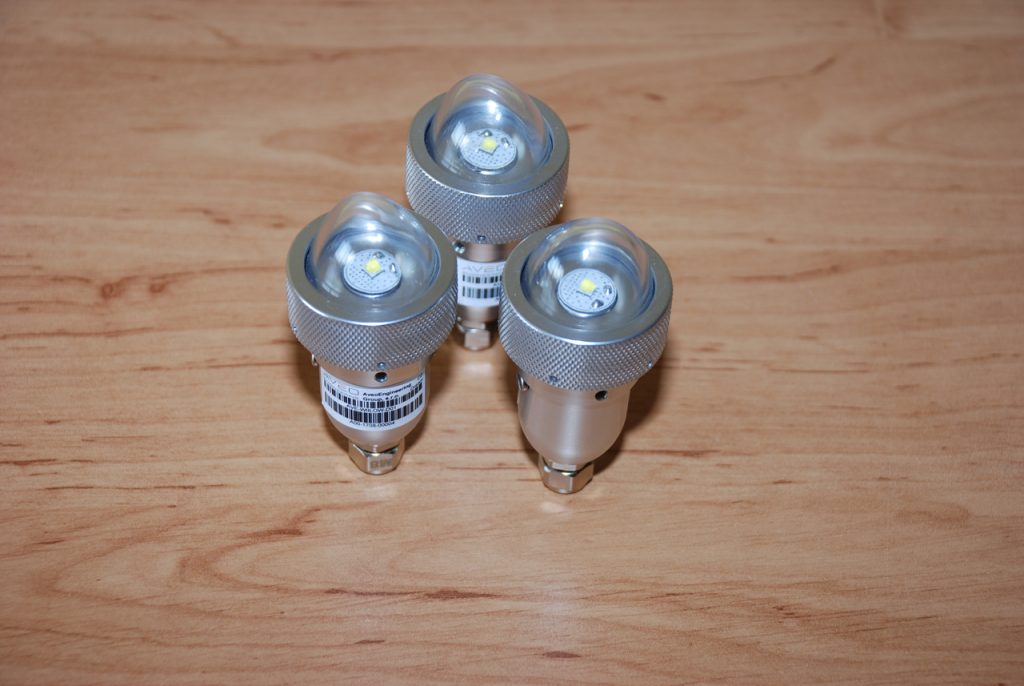

Quark DayLite

Safety Inspection Light – Commonly used as Wheel Well and Landing Gear Strut Light

Available colors: White, Red or Blue

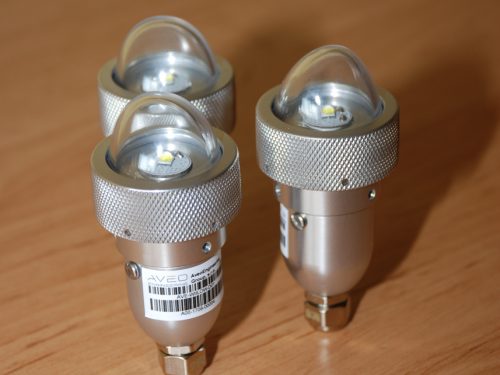

Quark DayLite Aircraft Safety Inspection Light – Commonly used as Wheel Well and Landing Gear Strut Light
Quark DayLite Aircraft Safety Inspection Light – Commonly used as Wheel Well and Landing Gear Strut Light

Specification

Dimensions (mm): 37,3 mm x 80,6 mm
Dimensions (inches): 1.469“ x 3.173“
Weight (g): 78 g
Weight (oz): 2.751 oz
Operating Voltage Range: 9 – 36 VDC
Input Current (@28V): 0.06 A (+/-5%)
Output Power: 1 W
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES

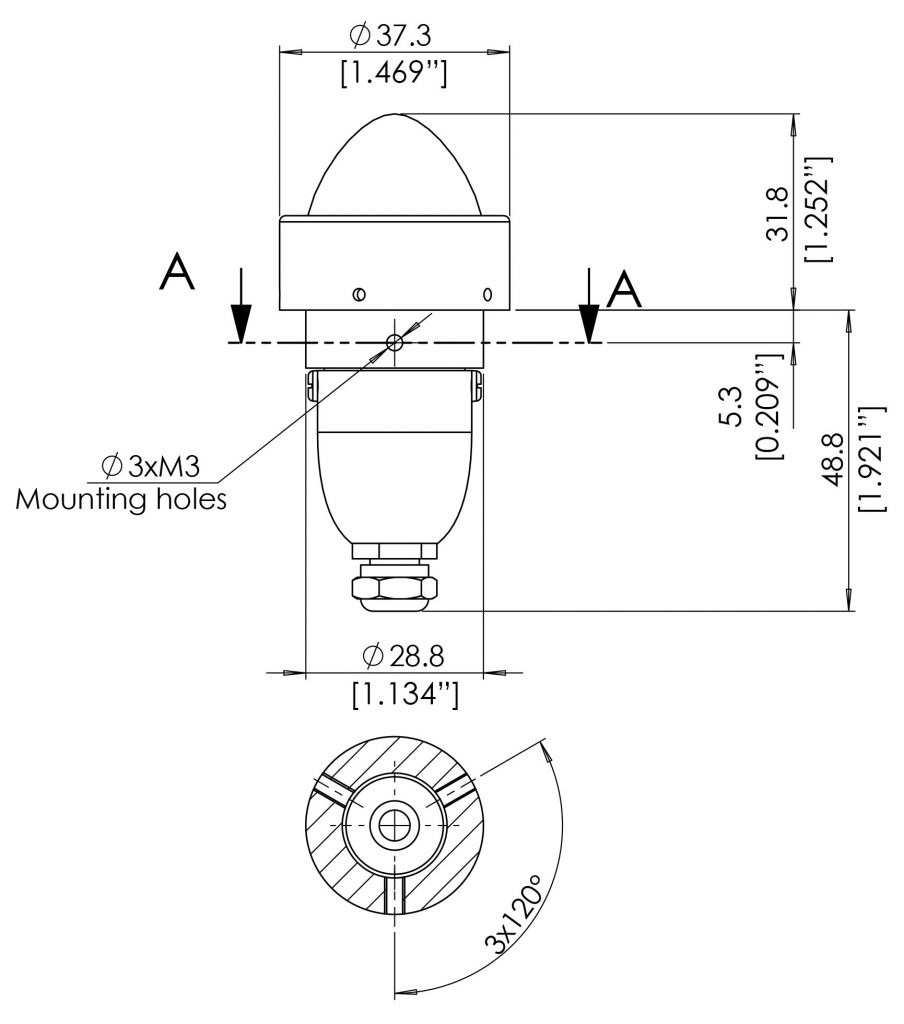

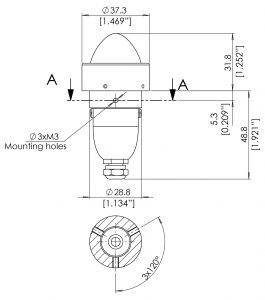

Drawing

Installation Manual

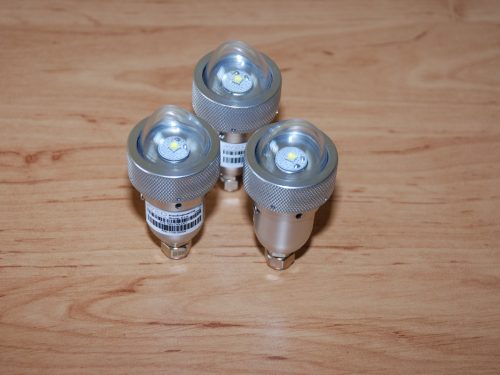

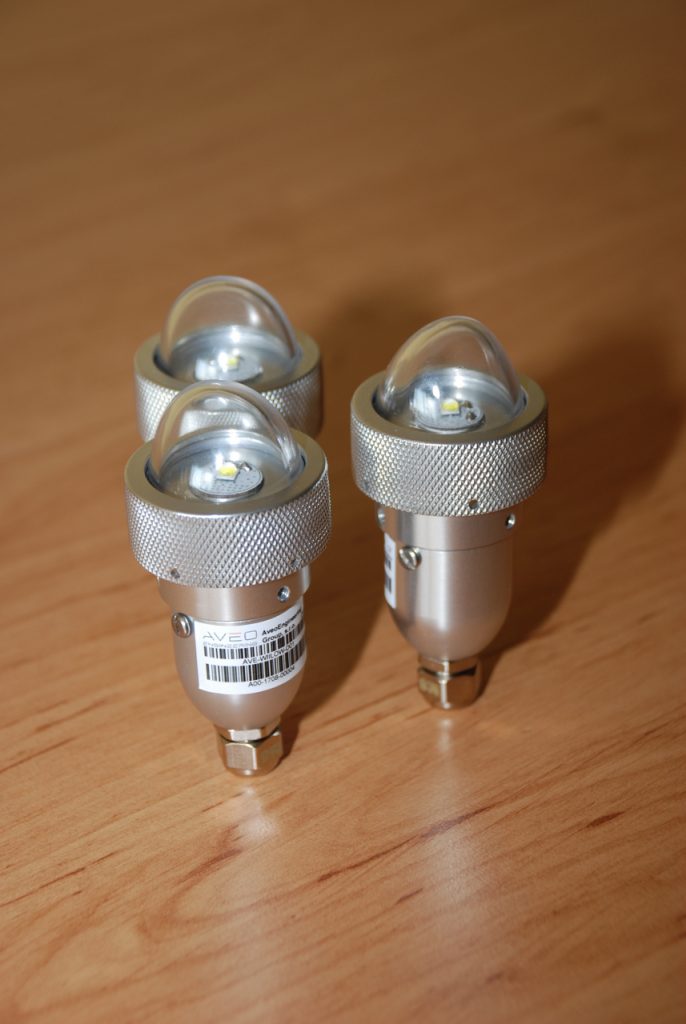

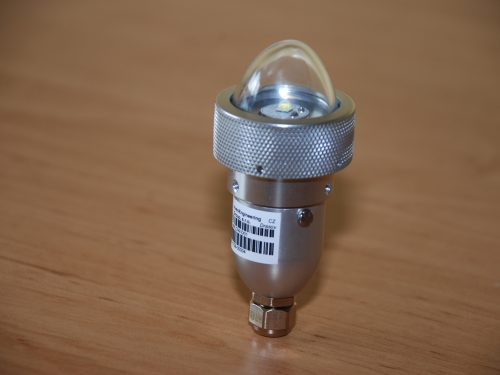

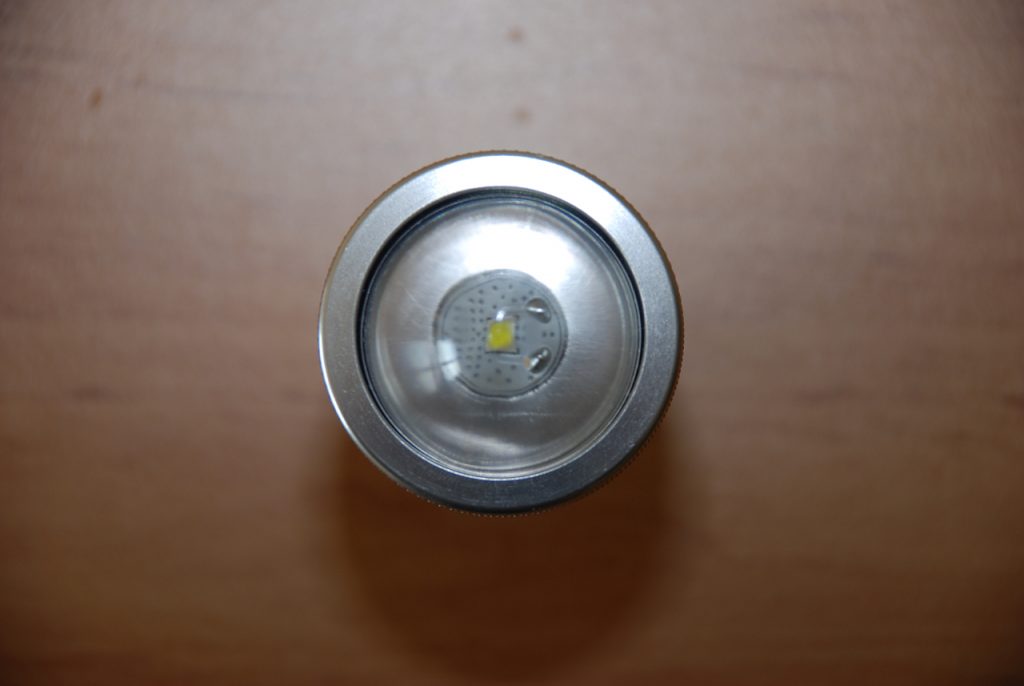

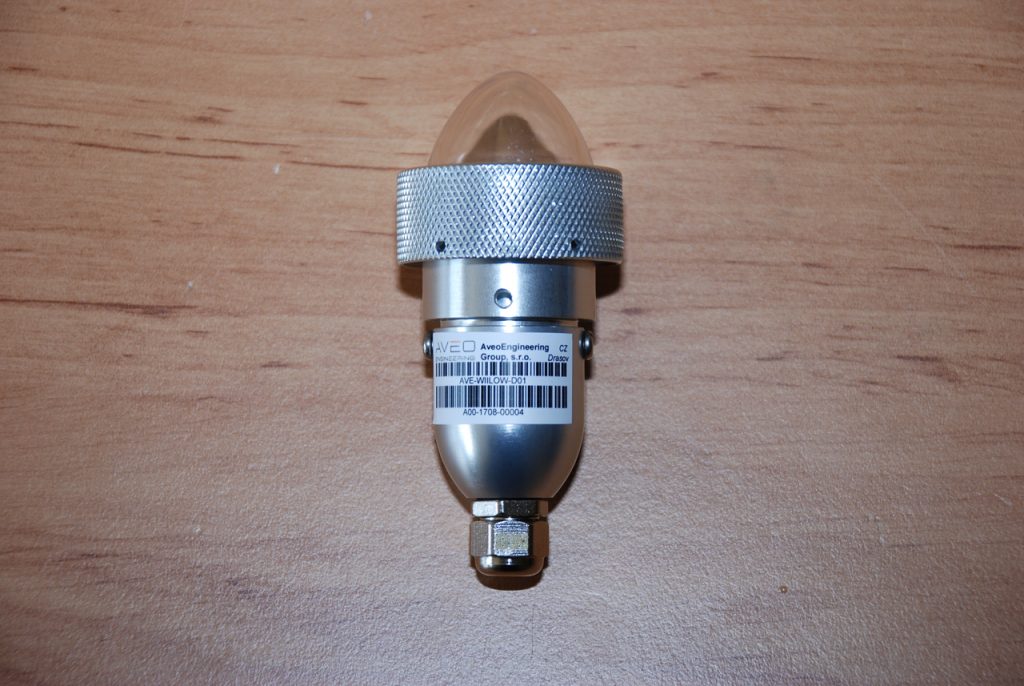

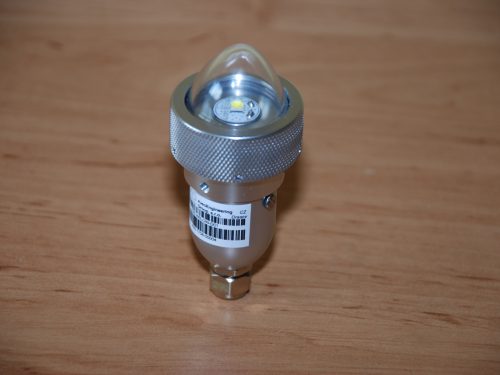

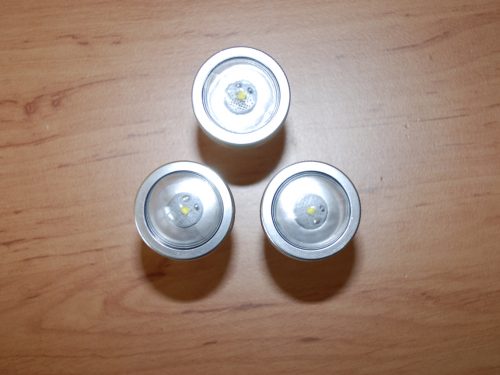

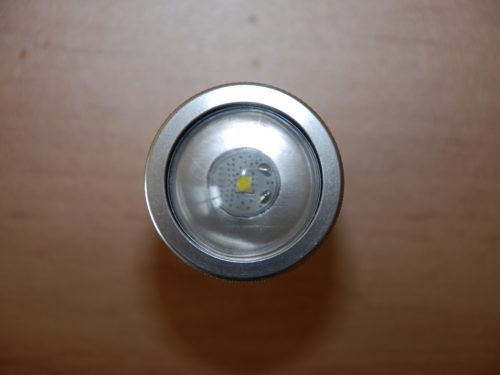

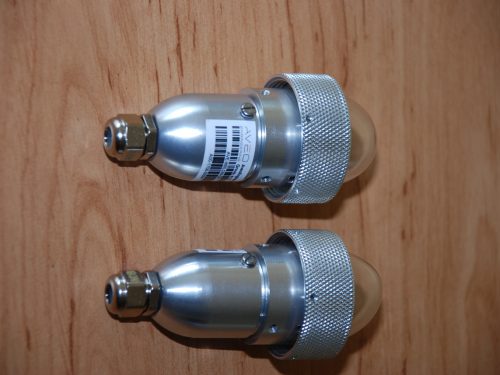

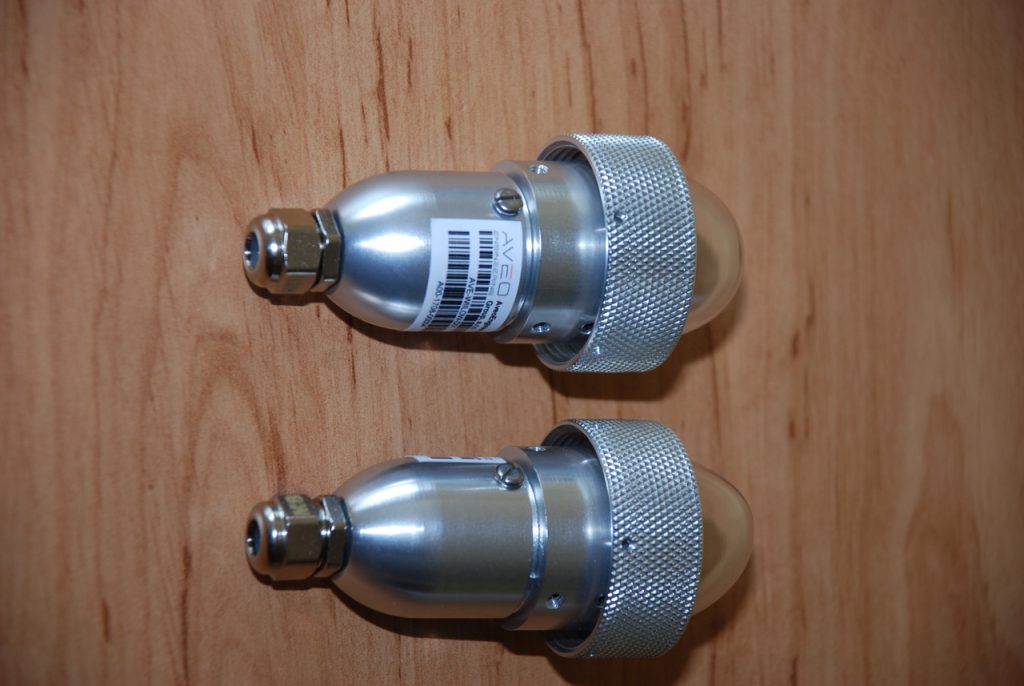

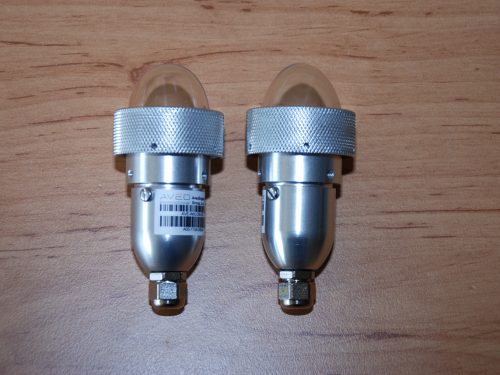

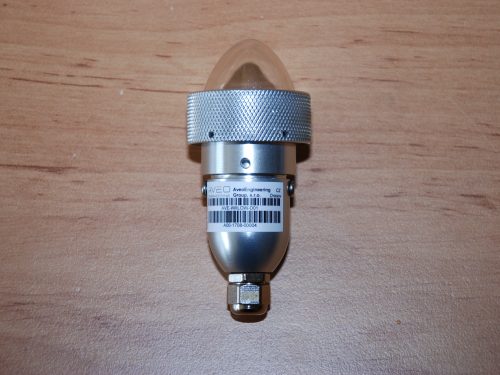

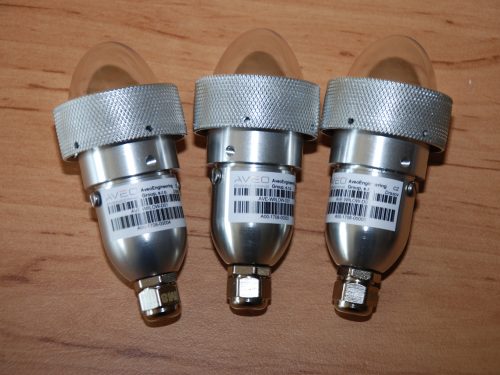

Gallery
