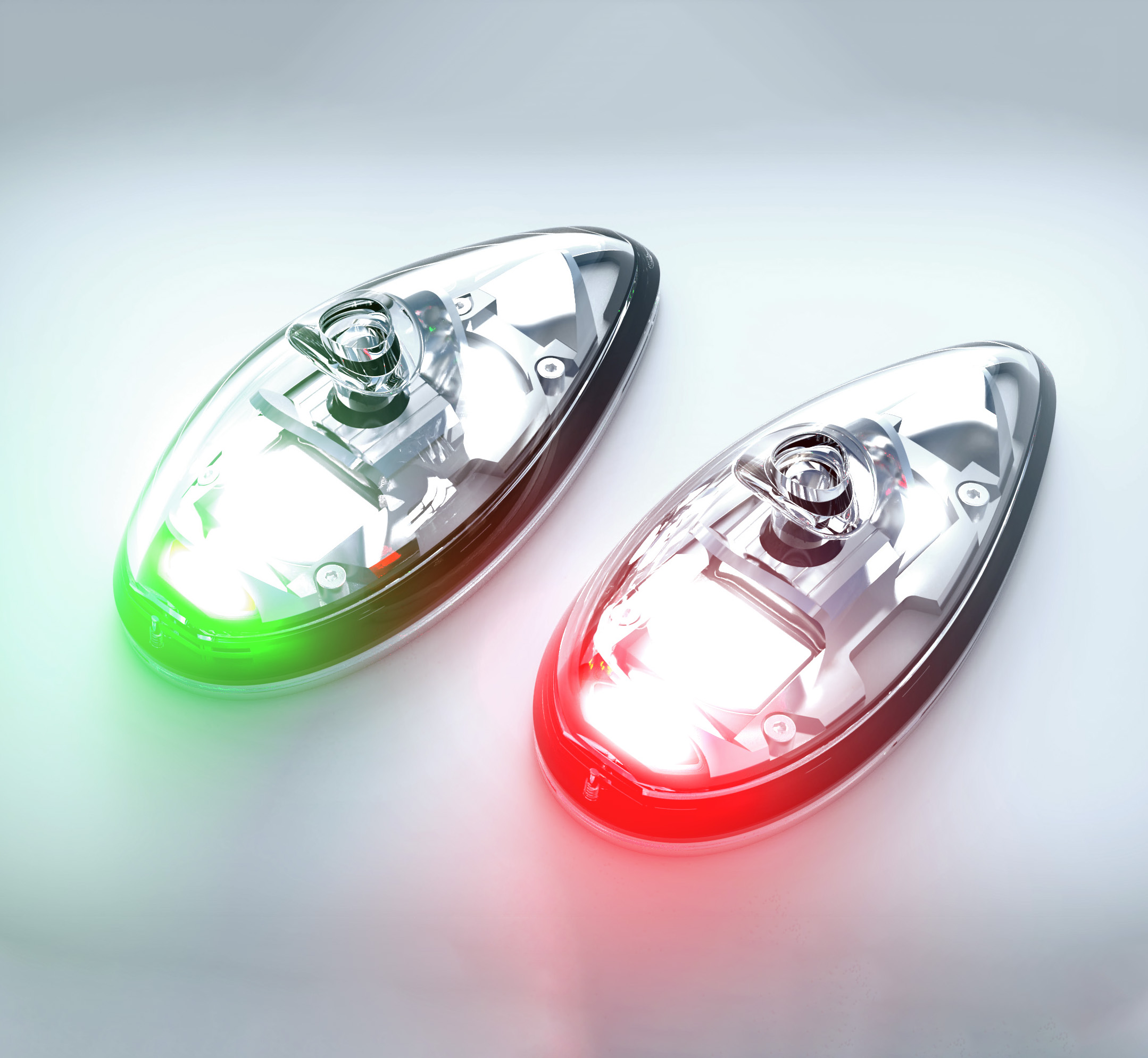

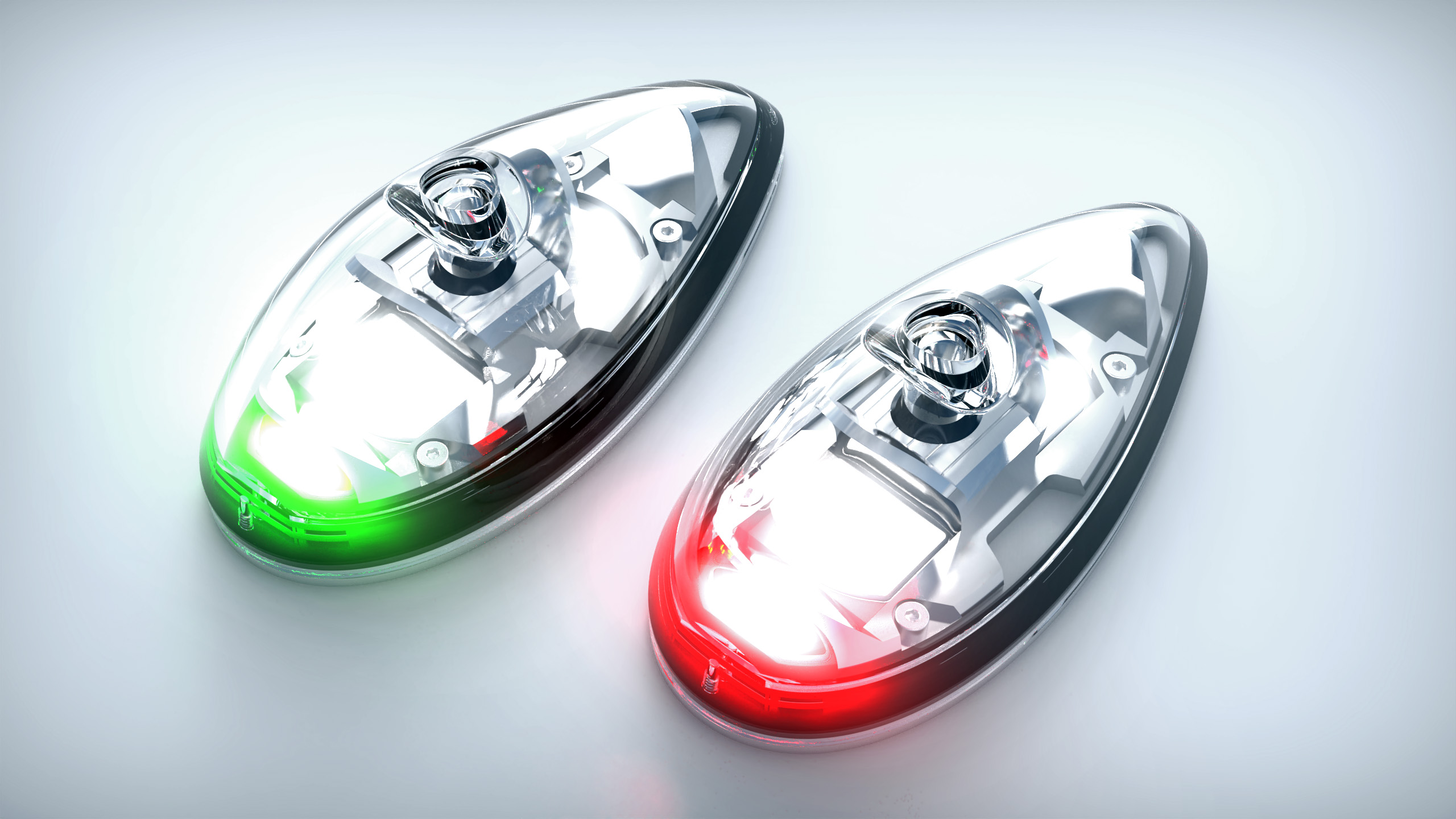

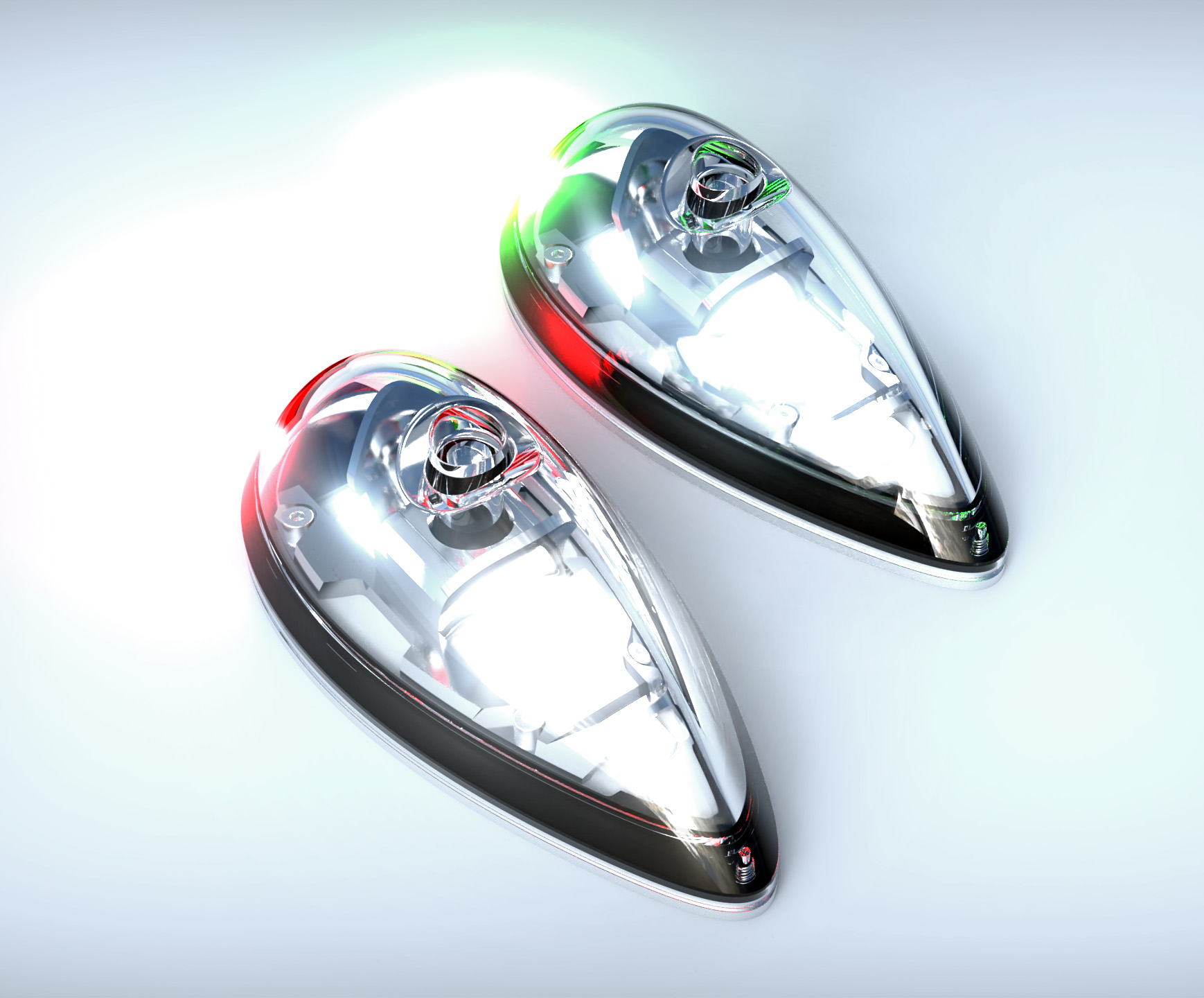

Ultra DayLite NXT™ – Wingtip Navigation / Strobe / Position LED Light

Navigation / Position / Strobe LED Aircraft light
Ultra DayLite NXT - Navigation - Position - Strobe LED Aircraft light

Navigation / Position / Strobe LED light

At only 35.6 millimeters in height (1.40 inch) the new Ultra DayLite NXT™ is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

3-in-1

Specification

Dimensions (mm): 100 mm x 46.2 mm x 35.6 mm
Dimensions (inches): 3.94“ x 1.819“ x 1.40“
Weight: 92 g / 3.25 oz
Operating Voltage Range: 9 – 18 VDC
Input Current Red
– Strobe
– Position

2.29 A @14 VDC
0.23 A @14 VDC
Input Current Green
– Strobe
– Position

2.32 A @14 VDC
0.25 A @14 VDC
Input Power Red
– Strobe
– Position
32 W @14 VDC
3.2 W @14 VDC
Input Power Green
– Strobe
– Position
32.5 W @14 VDC
3.4 W @14 VDC
Recommended mounting screw: See pictures in section Drawing
Tightening torque: See pictures in section Drawing
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F

Installation Manual

DOWNLOAD HERE

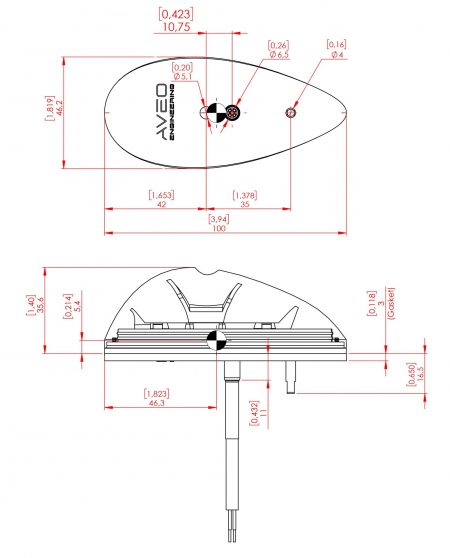

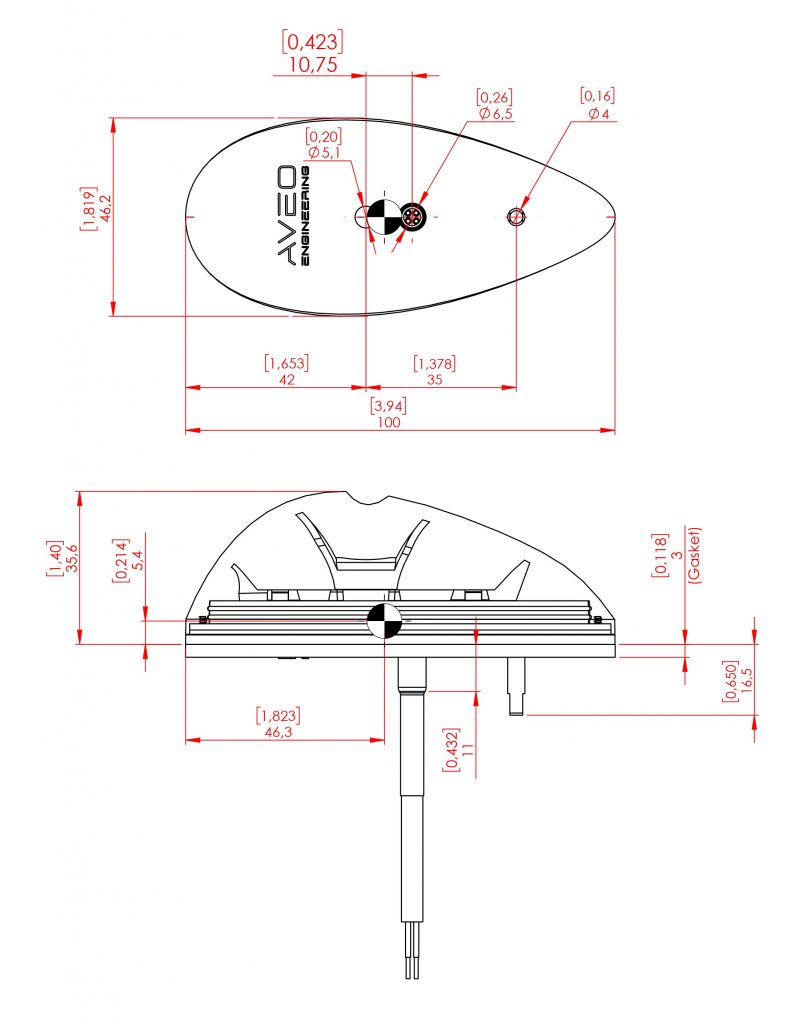

Drawing

UltraNXT-wingtip_navigation_position_strobe_light_Technical_Drawing
