Nebulon – Navigation Light

TSO Certified

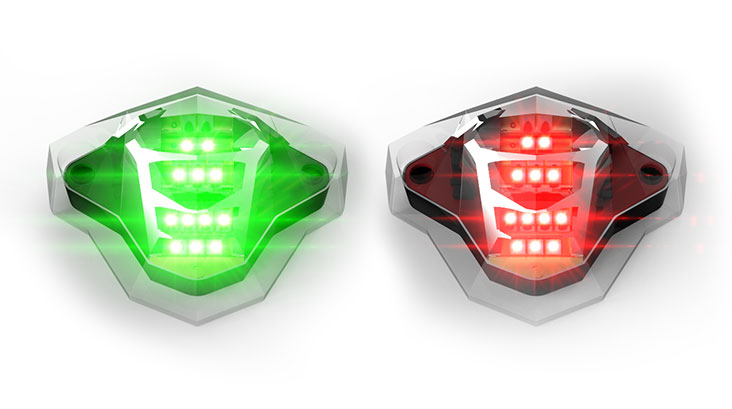

12 High brightness LEDs for NAVIGATION coverage

Packed with 12 ultra high brightness CREE LEDs for NAVIGATION mode in red or green color that are the industry state-of-the-art in performance and output lumens

Easy connect with terminal

 Gulfstream Drop-In Replacement STC for Gulfstream IV, 450, V and 550

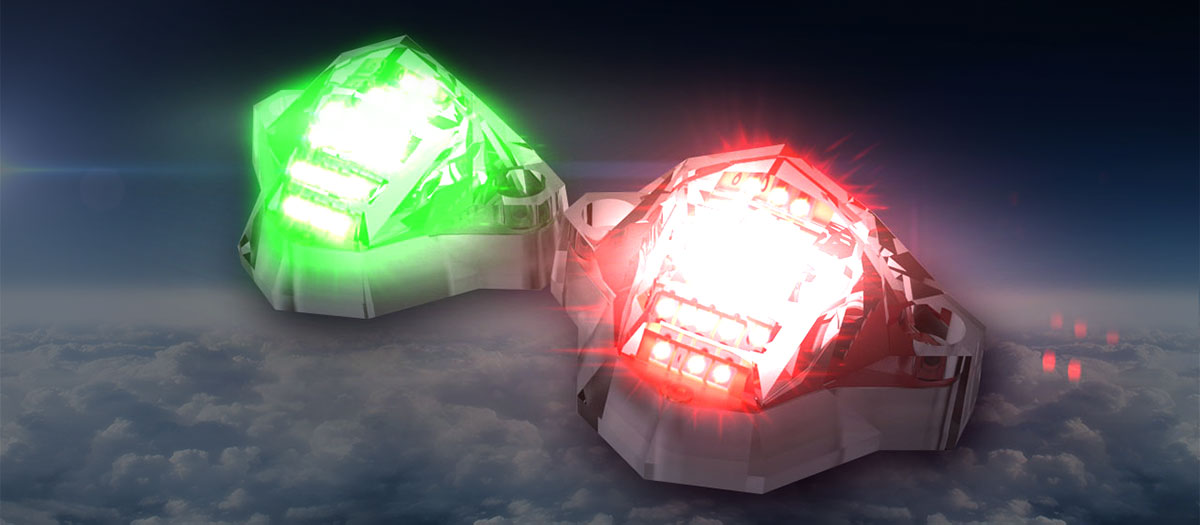

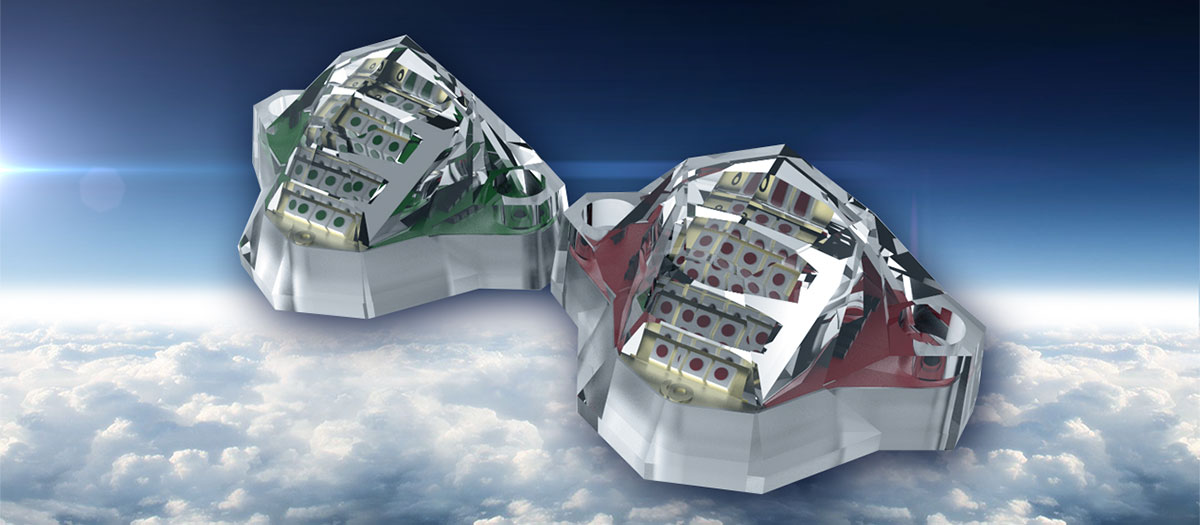

 Nebulonâ„¢ is a solid-state, hermetically sealed red and green position light pair that are TSO’d and simple drop-in replacements for those old legacy lights – Honeywell 30-2900-1/2, Honeywell 22885-23/23 and Honeywell 30-2478-1/2.

Aveo Engineering Nebulon vs. Honeywell Astreon comparison

Only three multiple-generations old low-power LEDs vs. Nebulon 12 high power LEDs output means being seen from 5 times the distance

TSO Certified

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

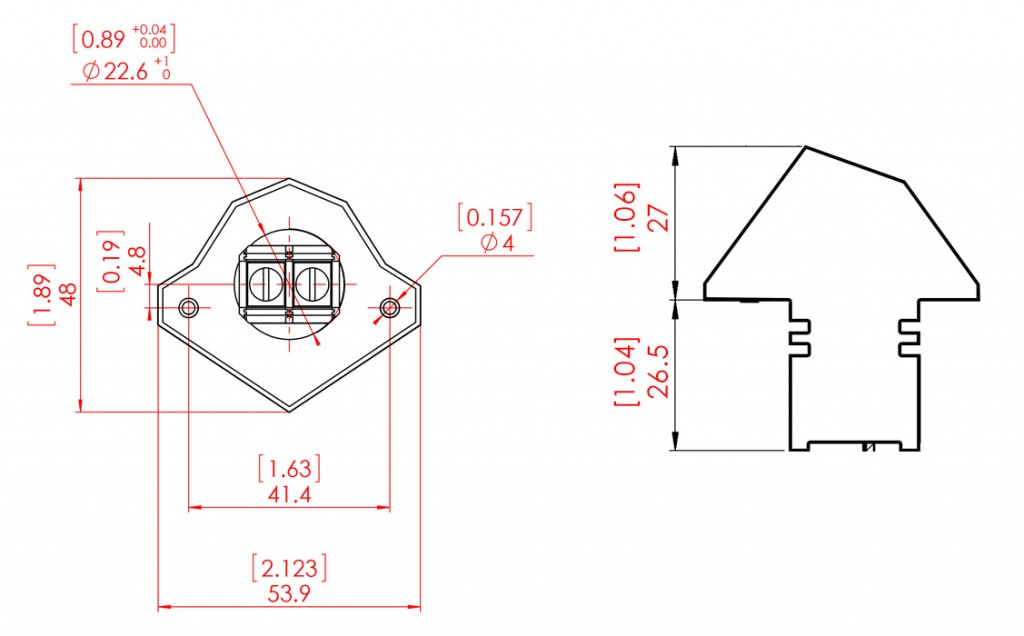

Dimensions: 48 mm x 53.9 mm x 69.7 mm
1.89” x 2.12” x 2.74”
Output power: 5.9 W - Green
6.0 W - Red
Weight: 70g / 2.47 oz
Operating Voltage Range: 18-36V DC
Primary input voltage: 28V DC
Over-voltage protection: 80V (1s)
Input current at 28V: 0.27A  (+/- 10%)
Reverse polarity protection: Yes
Over-Voltage shut down:    38.5V DC
Operating temperature: -55°C to +85°C
-67°F to +185°F
Over-Temperature protection: Yes
Under-Voltage protection: Yes
Waterproof: Yes
Vibration-proof: Yes
Shock-proof: Yes
Dust-proof: Yes

Installation Manual

Approvals

Nebulon-ETSO

Gulfstream Replacement
