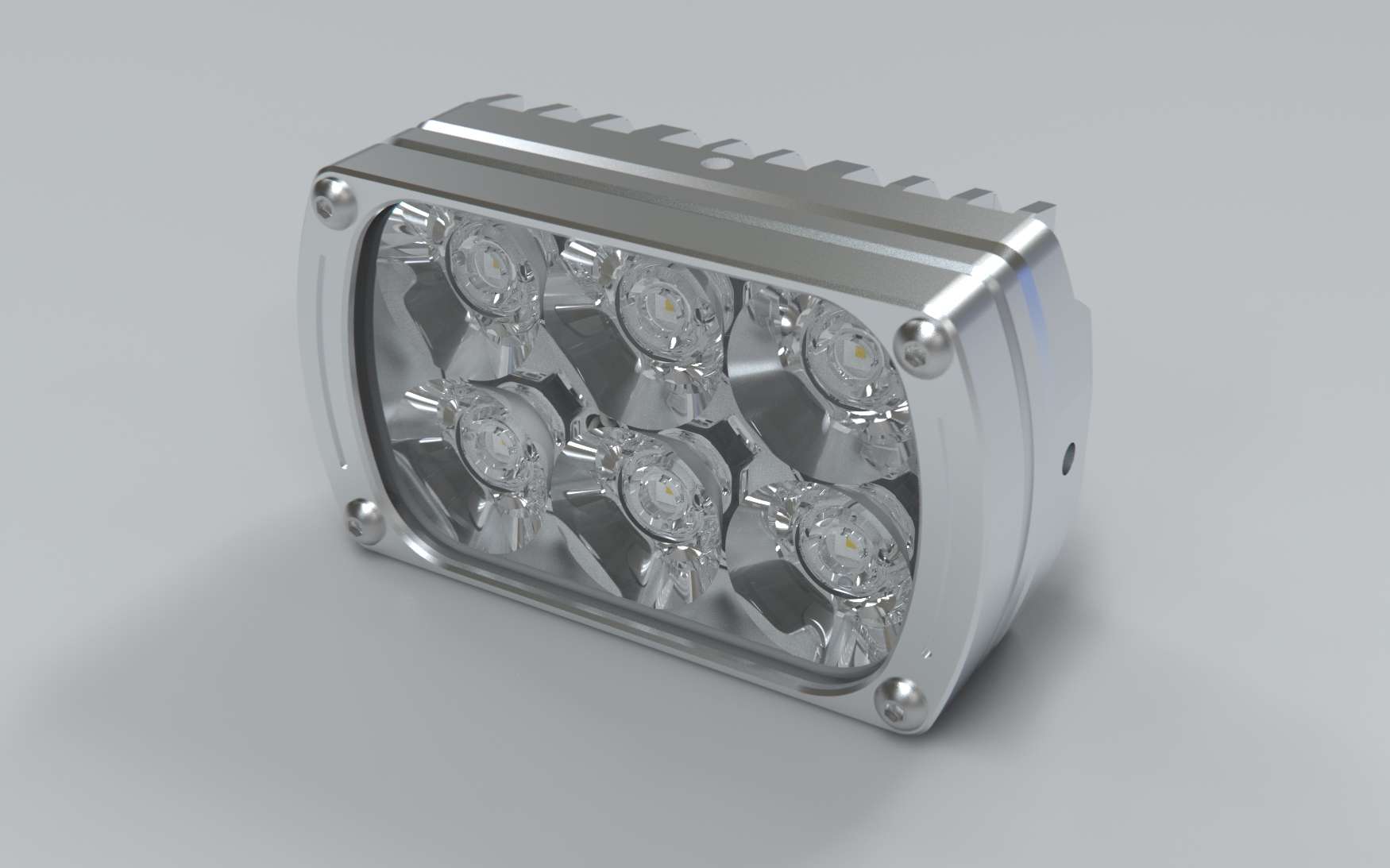

Nubion Plus

Wingtip Landing or Taxi Light with WigWag function

Specification

Dimensions: See drawing
Weight: 195 g / 6.88 oz
Operating Voltage Range: 18 – 36 VDC
Input Current: 0.89 A @28V (+/- 5%)
Input Power: 25 W @28V (typ)
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Overheat Protection: Yes
Reverse Polarity Protection: Yes
Over-Voltage Protection: 80V (1s)
Over-Voltage Lockout: 38.5 VDC
Under-Voltage Protection: Yes
Waterproof, Dust-proof, Vibration-proof: Yes

Drawing

Nubion - drawing

Beam / Intensity

13°: 37,431 cd

24°: 12,081 cd

38°: 5,977 cd

55°: 3,132 cd

15° x 47°: 10,300 cd

Installation Manual
