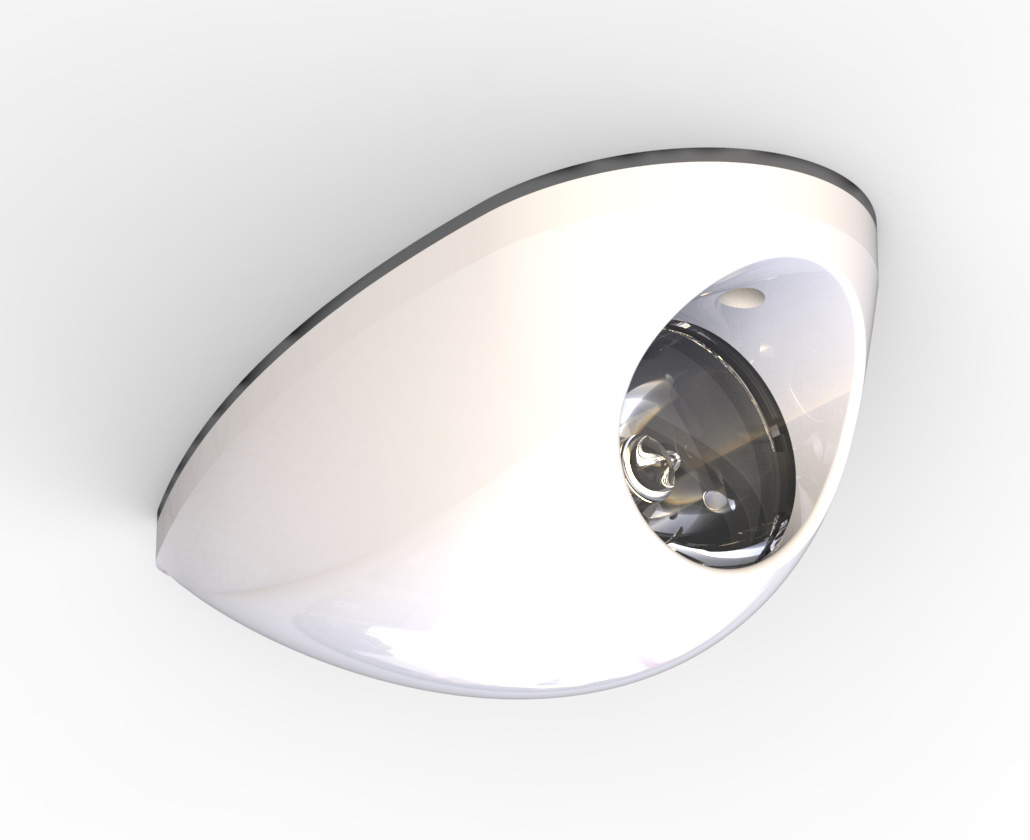

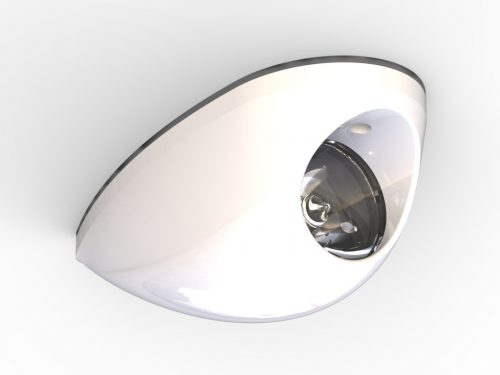

Pacifica I Mini – Underwing / Underfuselage Landing or Taxi Light

Pacifica I Mini - Underwing or under fuselage landing / taxi light

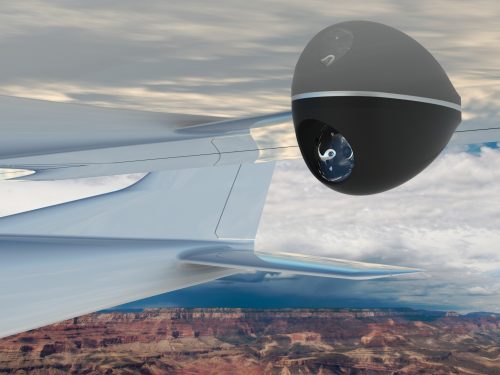

Aerodynamics Under-wing or Under-fuselage Taxi or Landing Light

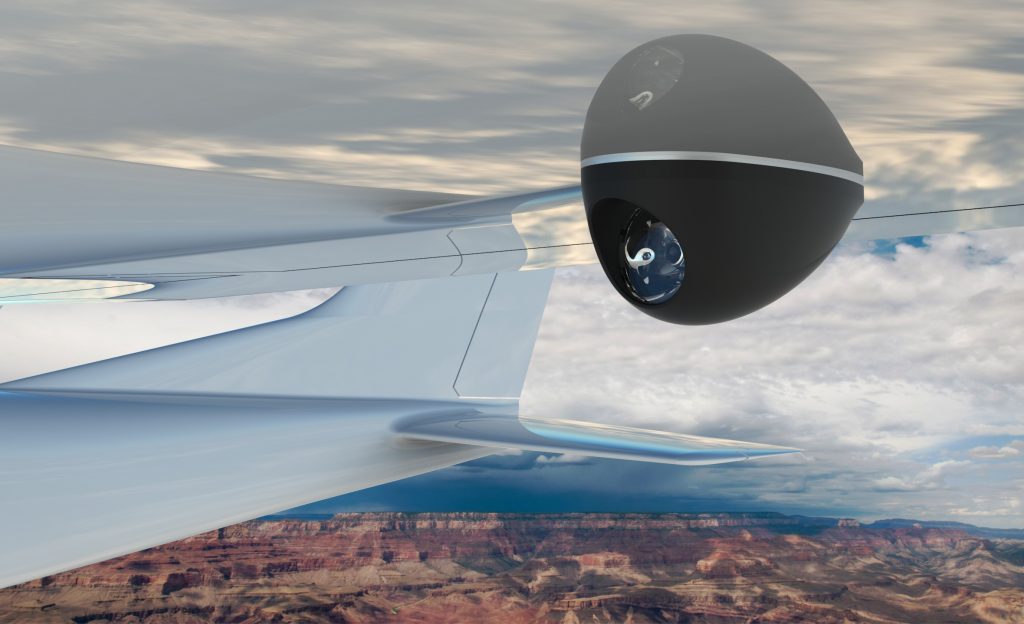

Aveo Introduces the Aerodynamic under-wing/under fuselage Pacifica Series of taxi or landing lights.  Incorporating Aveo’s proprietary CuPillar™, AfterBurners™ and NTC technologies, coupled with our KrystalKelvin™ optical grade lenses for exact wavelength transmissions. Aveo makes retrofit upgrades easily possible for incredible intensity lights in low drag, simple to mount shapes.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Specification

Dimensions (mm): 156.8 mm x 57 mm x 59.2 mm
Dimensions (inches): 6.17“ x 2.24“ x 2.33“
Weight: 182 g / 6.42 oz
Operating Voltage Range: 10–36 VDC
Input Current (at 25°C): 0.18A @28 VDC
0.33A @14 VDC
Input Power: 5W @28 VDC
4.6W @14 VDC
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Transient Voltage: 2 seconds +80 V
Under-Voltage Lockout: +10 VDC, not more
Over-Voltage Lockout: +36 VDC, not less

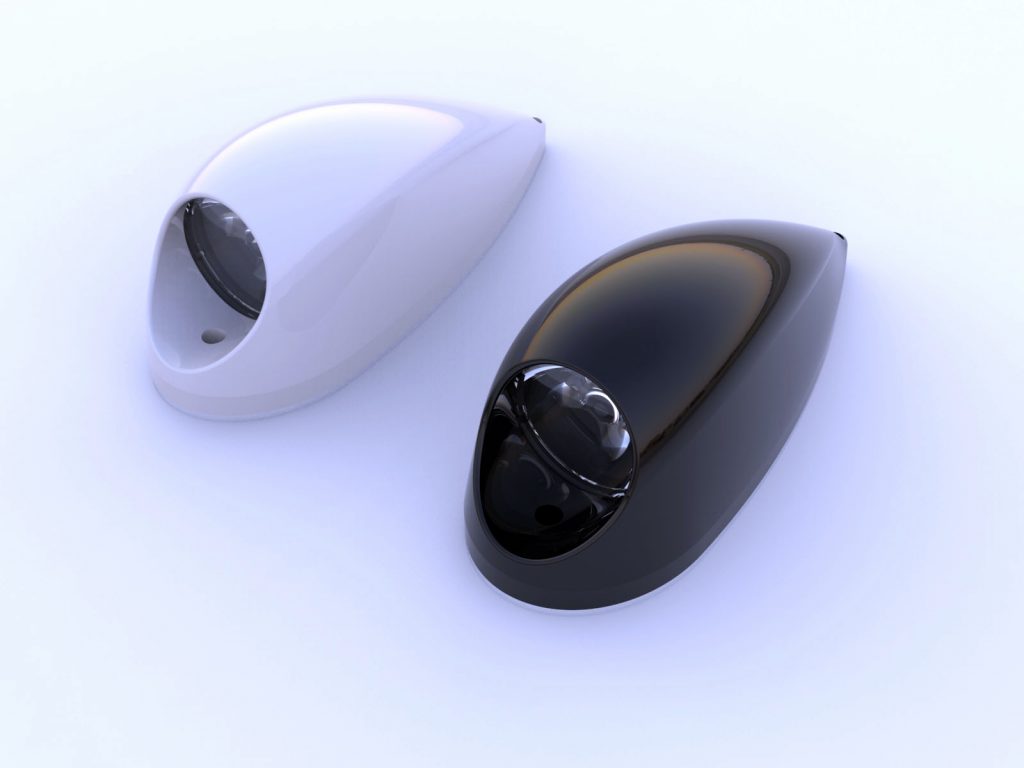

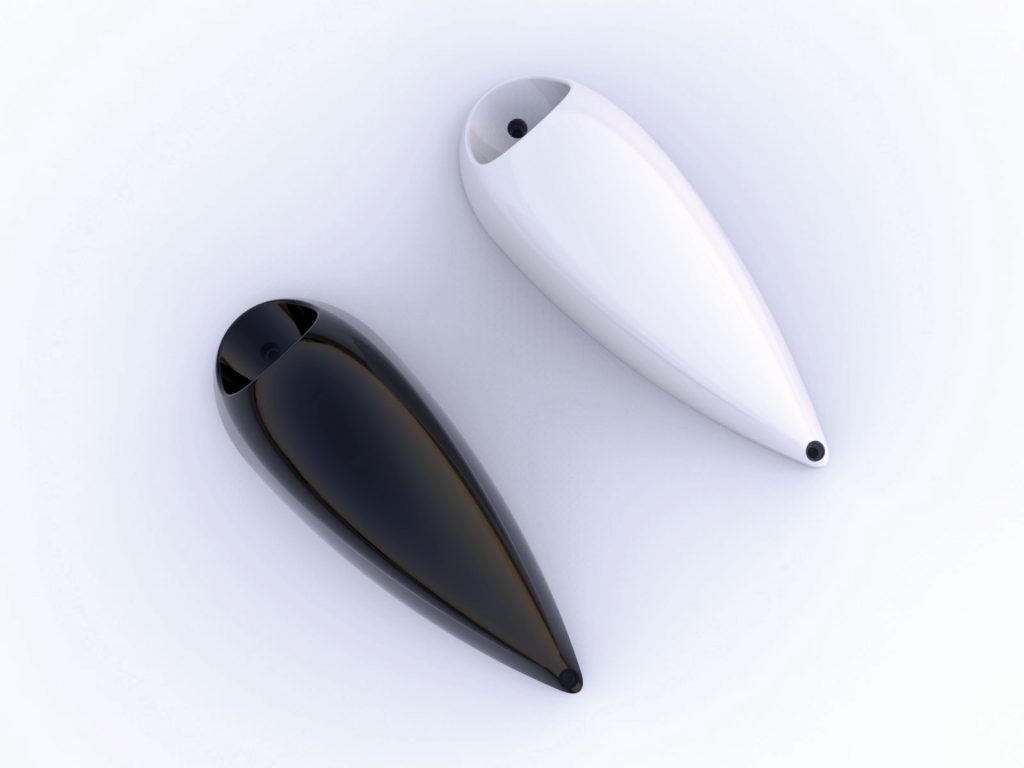

Color: White finish
Black finish
Primer - Base color
Waterproof, Dust-proof, Vibration-proof: Yes

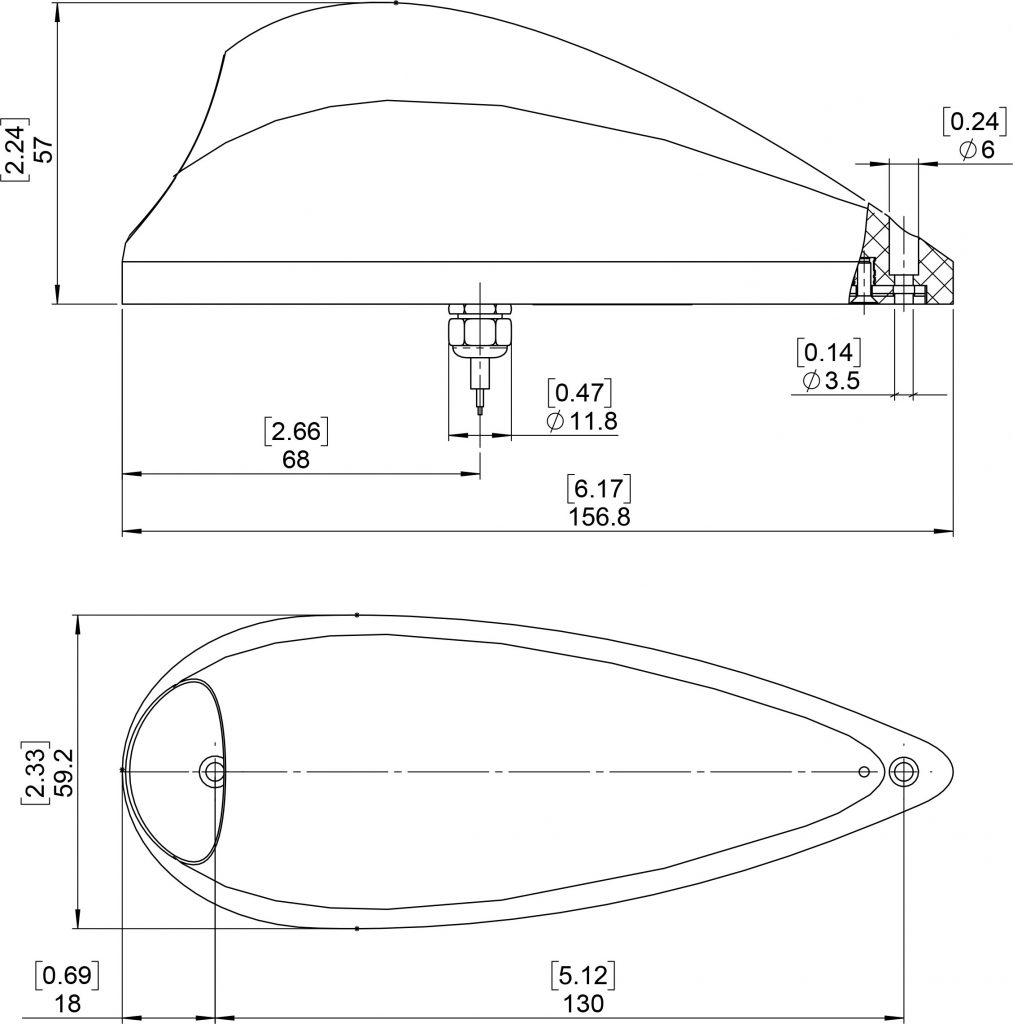

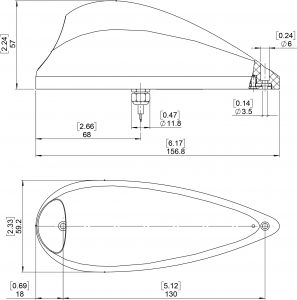

Drawing

Intensity

Lens 3°: 40,000 cd
Lens 10°:
18,000 cd
Lens 28°:
3,500 cd
Lens 37×9°- eliptical:
3,600 cd

Installation Manual
