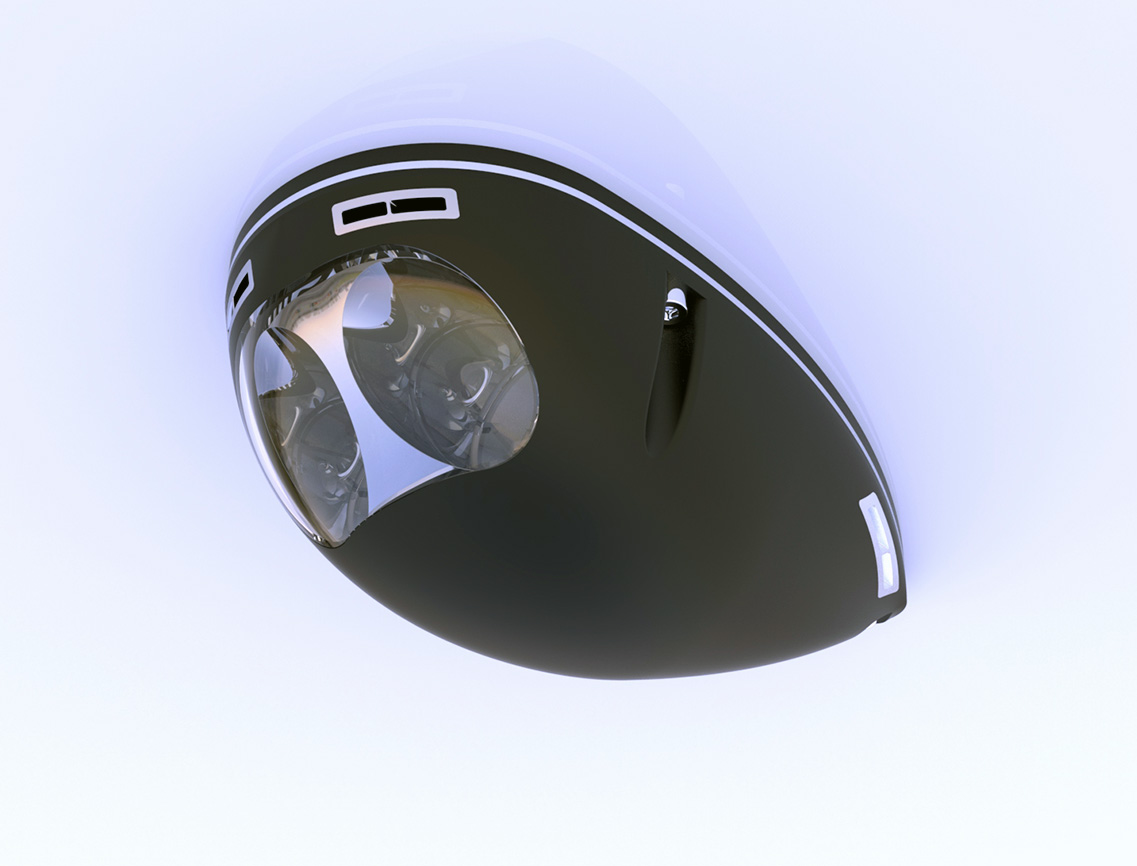

Pacifica II

Pacifica - Taxi / Landing / WigWag Light

Aerodynamics Under-wing or Under-fuselage Taxi / Landing / WigWag Lights

Aveo Introduces the Aerodynamic under-wing/under fuselage Pacifica Series of taxi/landing/wigwag lights.  Incorporating Aveo’s proprietary CuPillar™, AfterBurners™ and NTC technologies, coupled with our KrystalKelvin™ optical grade lenses for exact wavelength transmissions. Aveo makes retrofit upgrades easily possible for incredible intensity lights in low drag, simple to mount shapes.

NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT
THIS IS NOT A TSO CERTIFIED LIGHT

Specification

Dimensions (mm): 220 mm x 103 mm x 74 mm
Dimensions (inches): 8.661“ x 3.622“ x 2.92“
Weight: Approx 700 g / 24.69 oz
Operating Voltage Range: 9–36V DC
Input Current (at 25°C) – Landing:
Input Current (at 25°C) – Taxi:
0.75A @28VDC
0.40A @28VDC
Output Power – Landing:
Output Power – Taxi:
20.5W
9.6W
Ambient Temperature: from -40°C to +85°C
from -40°F to +185°F
Transient Voltage: 2 second +80V
Under-Voltage Lockout: +9VDC, not more
Over-Voltage Lockout: +36VDC, not less
Intensity (White Beam):
Narrow - Landing:
Narrow - Taxi:
Middle - Landing:
Middle - Taxi:
Wide - Landing:
Wide - Taxi:

80,000 cd
40,000 cd
36,000 cd
18,000 cd
6,900 cd
3,450 cd
Beam Angle - Narrow:
Beam Angle - Middle:
Beam Angle - Wide:

11°
27°
Waterproof, Dust-proof, Vibration-proof: Yes

Drawing

Installation Manual

Gallery
