Pegatron – Rear Position Light

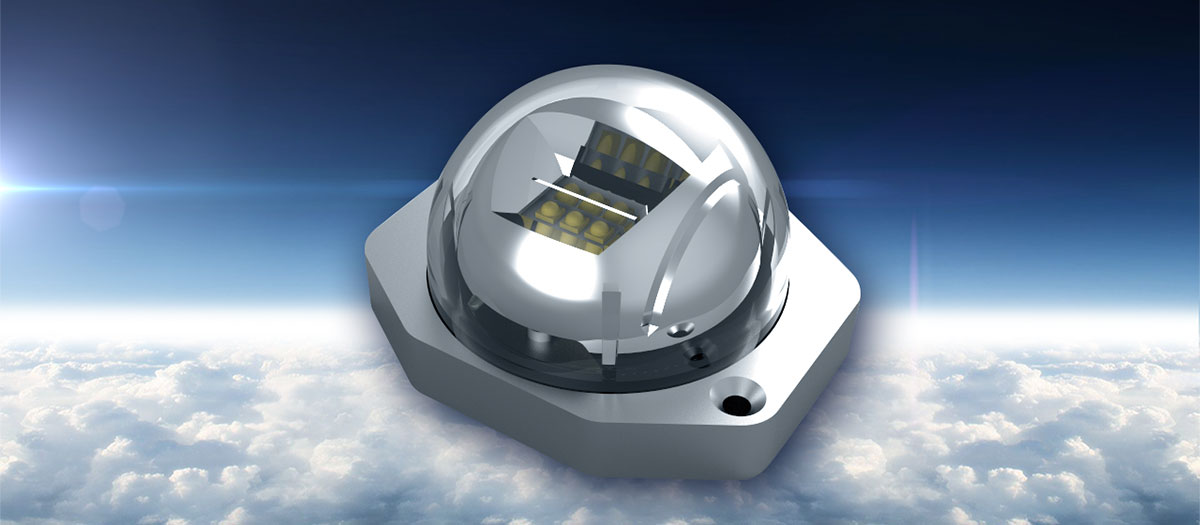

Compact Tail Fin position light only. Features terminal connectors on base. Pegatron is direct drop-in replacement for the Honeywell Astreon Tail Position Light.

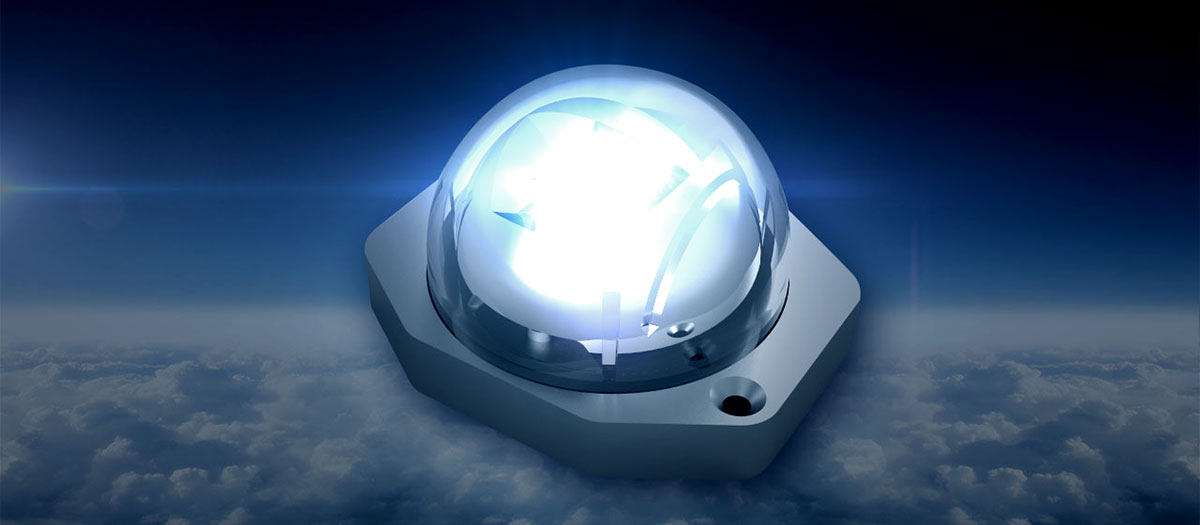

12 High brightness LEDs for POSITION (140°) coverage

Packed with 12 ultra high brightness CREE LEDs for POSITION mode in white color that are the industry state-of-the-art in performance and output lumens, the Pegatrons feature a significantly lower footprint than competitor lights.

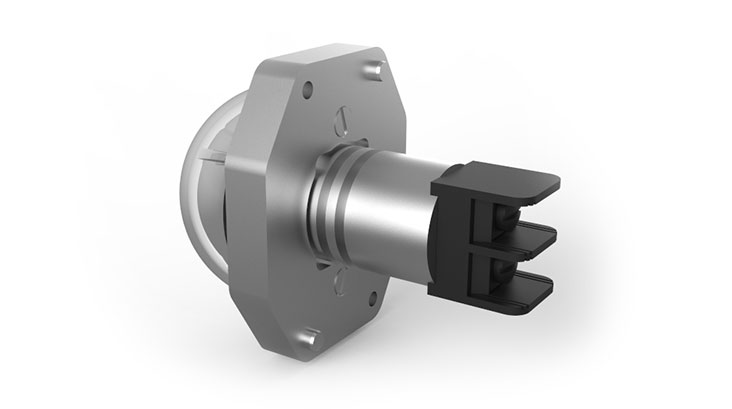

Easy connect with terminal

 Gulfstream Drop-In Replacement STC for Models G100, G200, GII, GIII, GIV, G450, GV and G550

Pegatronâ„¢ is a solid-state, hermetically sealed position light that is simple drop-in replacements for those old legacy lights – A2064, B9730, 30-2368, 30-2382.

Aveo Engineering Pegatron vs. Honeywell Astreon comparison

Only three multiple-generations old low-power LEDs vs. Pegatron high power output means being seen from 5 times the distance.

Approval

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Dimensions: see drawing on the left
Output power: 5.2W
Weight (g): 106 g
Weight (lbs): 0.234 lbs
Operating Voltage Range: 18-36V DC
Primary input voltage: 28V DC
Over-voltage protection: 80V (1s)
Input current at 28V: 0.22A  (+/- 5%)
Reverse polarity protection: Yes
Over-Voltage shut down:    38.5V DC
Operating temperature: -55°C to +85°C
-67°F to +185°F
Over-Temperature protection: Yes
Waterproof: Yes
Vibration-proof: Yes
Shock-proof: Yes
Dust-proof: Yes

Installation Manual

Approvals

Gulfstream Replacement
