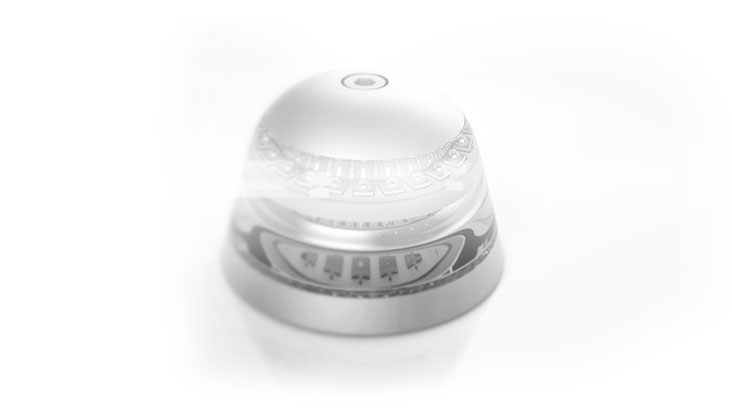

RedBaron MaxiMini – White Recogniton Light

RedBaronMaxiMini-beforeRedBaronMaxiMini-after

Spawned from the incredible technology of the incredible and unmatched RedBaron™ AntiCollision series, the new MaxiMini™ is the world’s brightest and smallest recognition light, at only 27 mm high and weighing only 85 grams.

Features

30 High brightness LEDs for ANTICOLLISION 360° coverage and RECOGNITION 180°

The RedBaron MaxiMini™ version incorporates 30 of the brightest LEDs available in the world today, with chromacity and intensity compliant to all international aviation and safety standards. The optical performance is incredible, and these are the ideal replacement unit for any recognition light system in existence. Unlike our competitors we continually introduce upgraded versions because of the rapidly changing LED technology, so you will never see old LEDs in Aveo lights as you do with other suppliers who are still using low efficiency, low output, less reliable LEDs from 5 to 7 years ago!

RedBaron MaxiMini – White Recogniton Light
RedBaron MaxiMini – White Recogniton Light

Available in WHITE led color ONLY

The MaxiMini™ only comes in aviation white led color, since it is 43% brighter than red leds, which means you will BE SEEN, NOT SORRY for sure!

Lowest Drag Profile recognition light

An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any certified aircraft requiring a rear coverage light due to wingtip light coverage zone limits.

RedBaron MaxiMini – White Recogniton Light
RedBaron MaxiMini – White Recogniton Light

No separate strobe power box needed

Aveo pioneered the no external power supply design from its inception in the industry and the copycats have yet to match our exclusive circuitry. Quite simply the lowest weight solution you can get, in 9 to 36 volt input range too!

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Dimensions (mm): 56.4 mm x 56.4 mm x 27 mm
Dimensions (inches): 2.22” x 2.22” x 1.063”
Weight (g): 83 g
Weight (oz): 3 oz
Operating Voltage Range: 9 – 36 Vdc
Power – strobe (Watts): 6.6 W (33 W peak)
Current – strobe (@12V): 0.56 A (2.77 A peak)
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M5x45mm (DIN912) or equivalent
Reverse polarity protected NO
Over voltage protected NO
Waterproof YES
Vibration-proof YES
Shock-proof YES
Dust-proof YES

Installation Manual
