Samson JP – PAR 46 Landing or Taxi Light

Samson JP - Aircraft Landing or Taxi Light - PAR46
  • These NEW Aveo landing and taxi lights combine high intensity and affordability

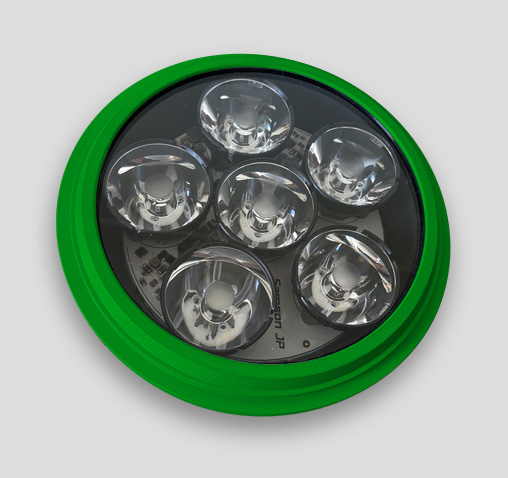

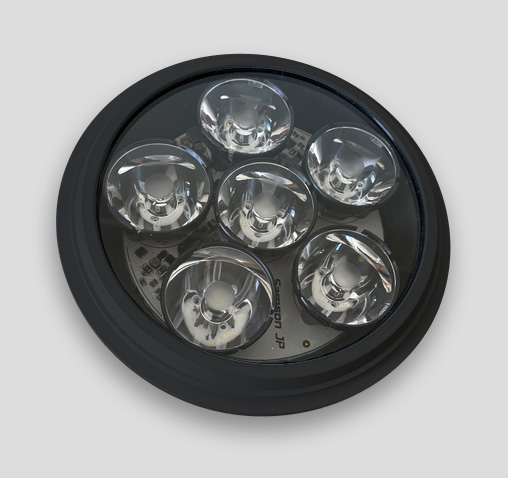

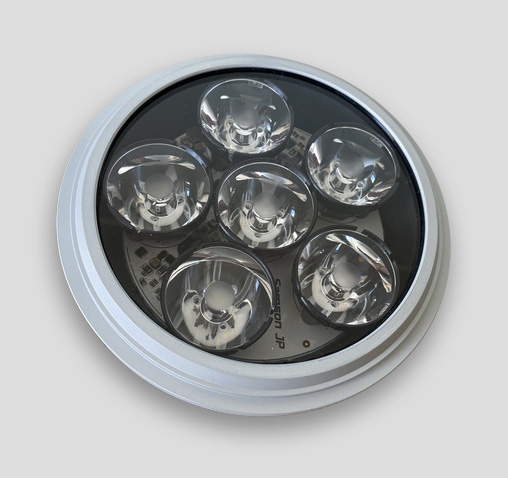

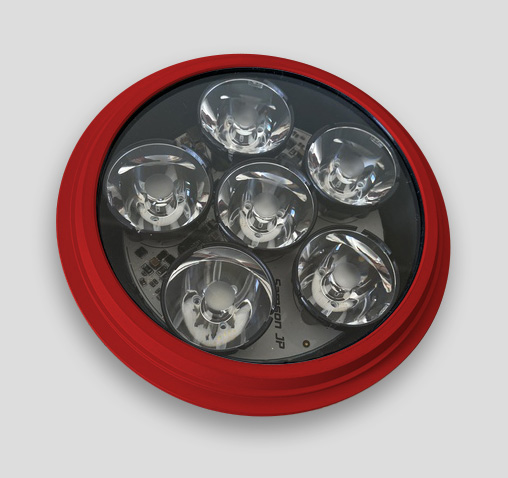

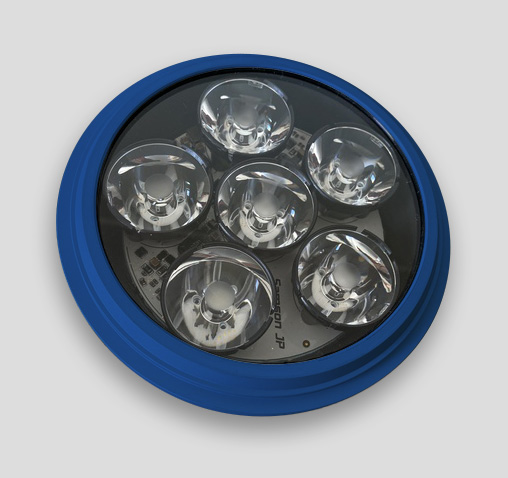

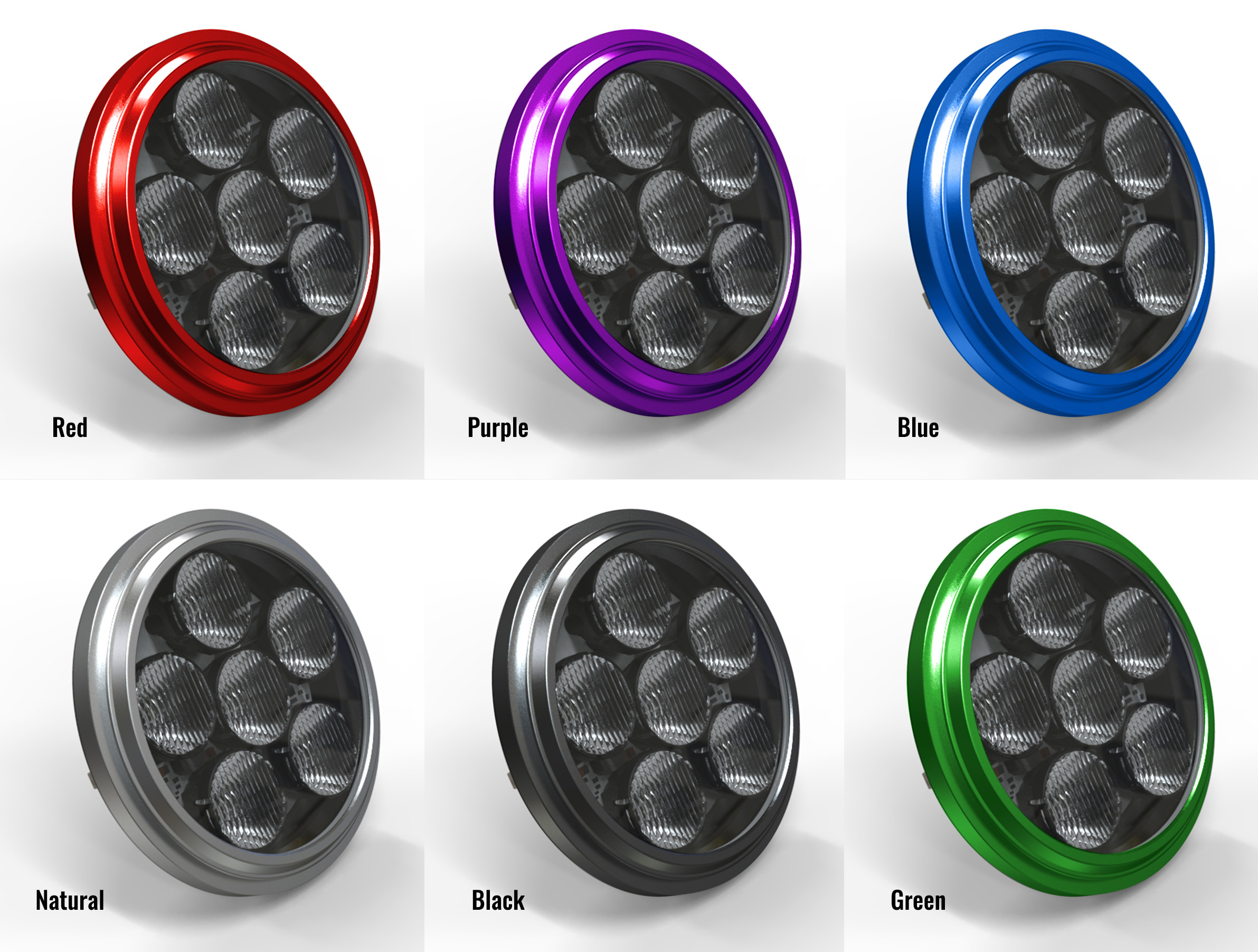

  • Choose from 2 anodized finishes (black or silver) to enhance your paint scheme

  • Available with either landing or taxi lenses, optimized for superior illumination

  • “Drop In” upgrade for legacy lights

  • Simple installation

  • High performance

  • PAR 46

Samson - PAR46 Landing Taxi Light for aircraft or helicopters

Specification

Dimensions (mm): 137.9 mm x 46.1 mm
Dimensions (inches): 5.429“ x 1.816“
Weight: 645 g / 1.42 lb
Operating Voltage Range: 9 – 32 V DC
Input Current (at 25°C): 4.5 A @14V
2.3 A @28V
Output Power: 54 W
Ambient Temperature: from -55°C to +85°C
from -67°F to +185°F
Transient Voltage: 80 V max
Over-Voltage Lockout: +33VDC, not less
Landing Lens Angle:
Taxi Lens:
8° Landing
28° Taxi
Reverse Polarity Protection: Yes
Overheat Protection: Yes (temperature dependent decrement of intensity, see note below)
Waterproof, Dust-proof, Vibration-proof: Yes
Useful Life: not less than 30,000 aircraft flight hours

Drawing

SamsonJP-drawing

Specification Sheet
