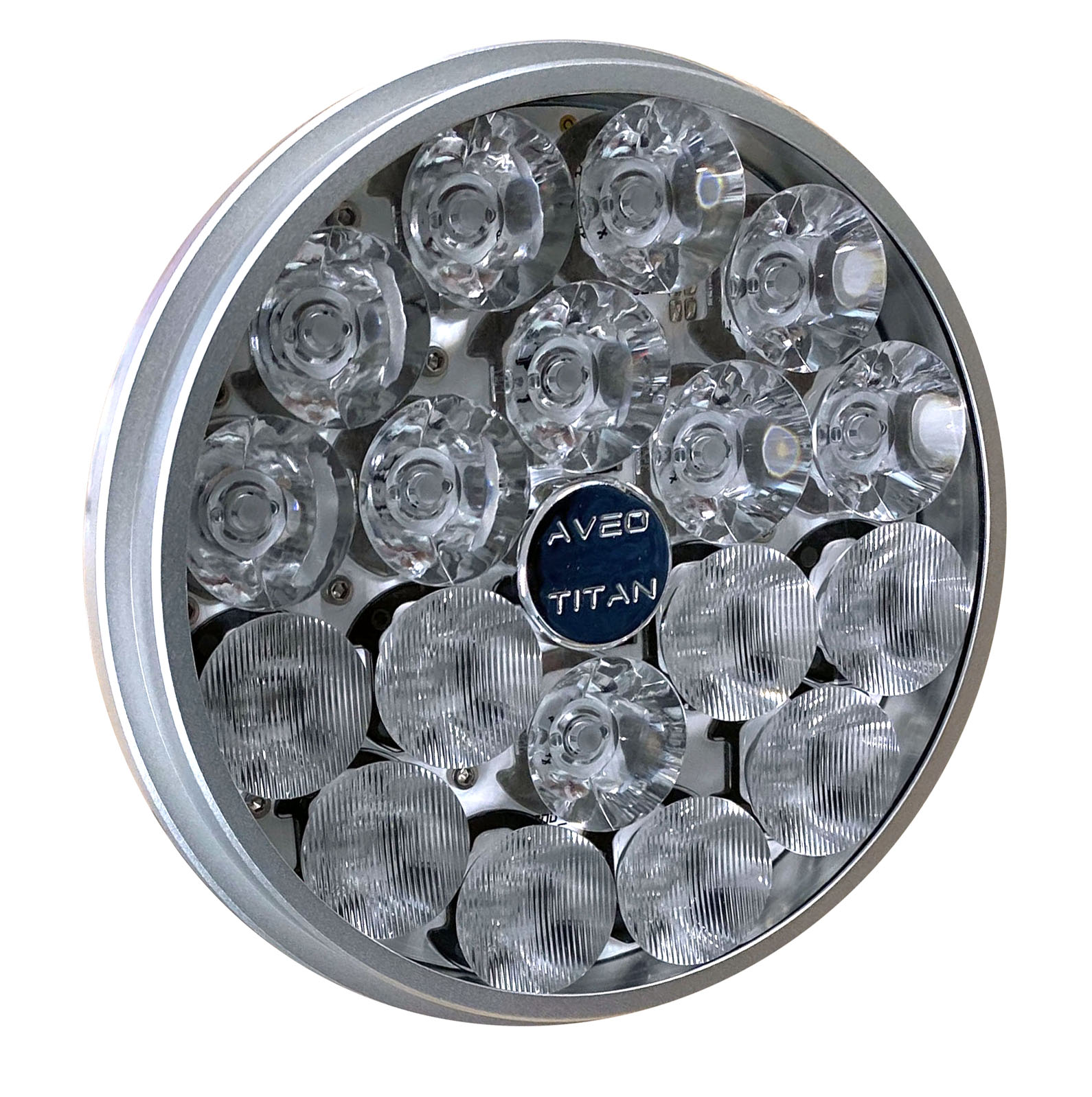

Titan DoubleDual – PAR 46 Landing and Taxi Light, White / IR, dimmable

PAR 46 Drop-In replacement

Multimode LED light

  • Landing Visible

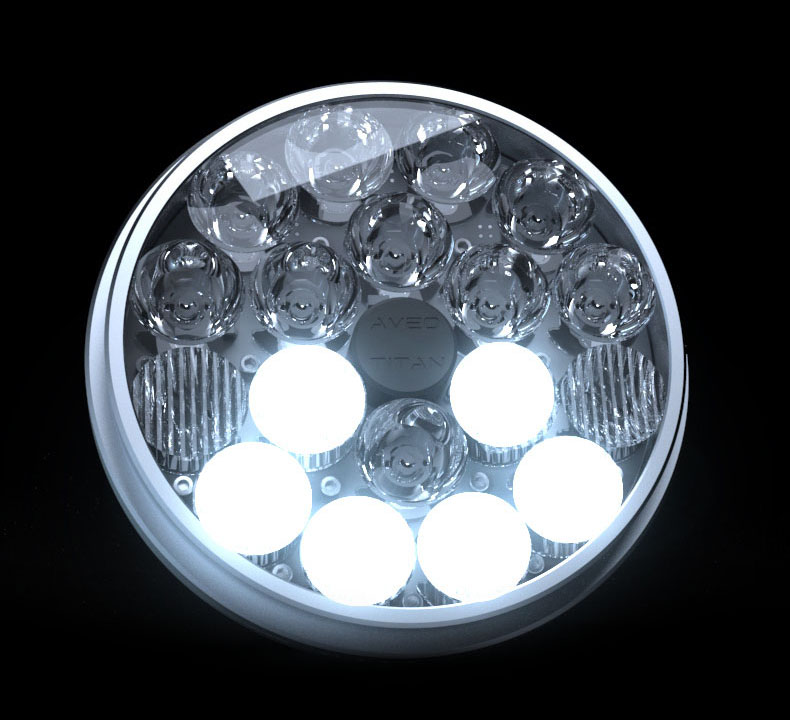

  • Taxi Visible

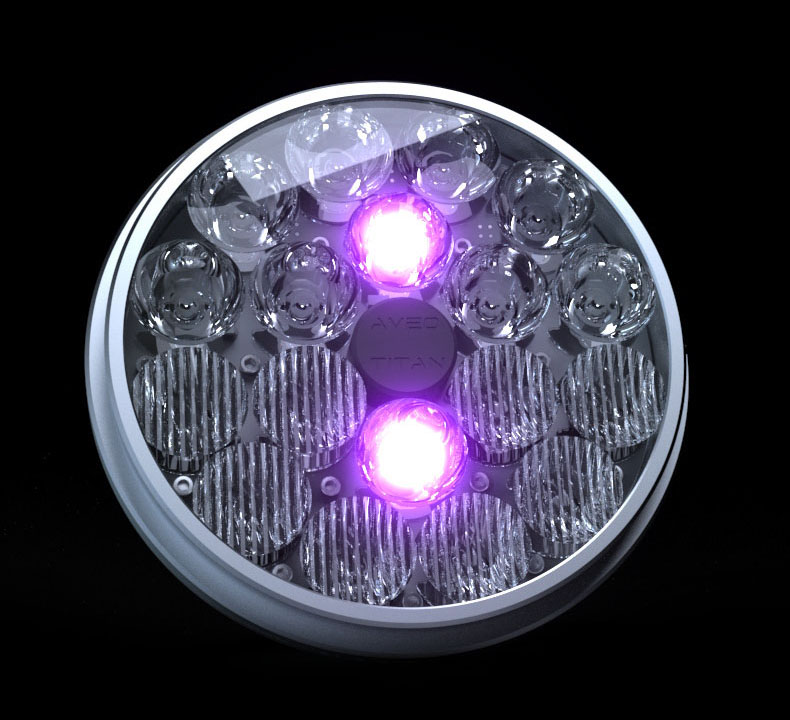

  • Landing IR

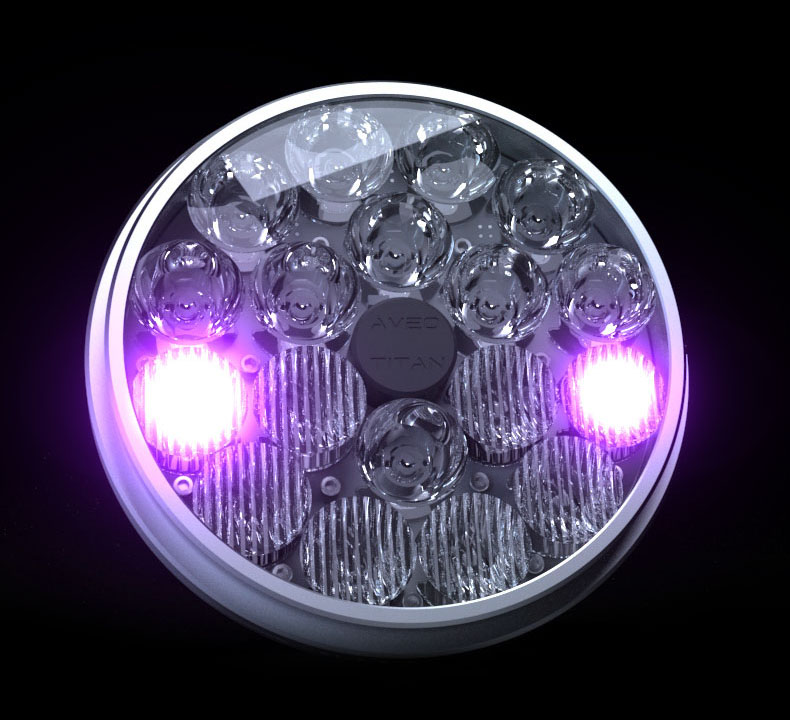

  • Taxi IR
  • IR Dimmable

AveoEngineering introduces the exclusive next-generation Titan™ – Replacement for Legacy Lights.
A PAR 46 drop-in with the legendary Titan power!



Specification

Input voltage: from +18 to +36 VDC
Landing Visible: Input current: 2.93 A @ 28V DC
Input power: 82.3 W
Taxi Visible: Input current: 2.11 A @ 28V DC
Input power: 61.9 W
Landing IR: Input current: 0.35 A @ 28V DC
Input power: 9.8 W
Taxi IR: Input current: 0.35 A @ 28V DC
Input power: 9.8 W
Transcient voltage: 80 V, 2 seconds
Under-voltage lockout: +17 VDC, not more
Over-voltage lockout: +36.7 VDC, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
WHITE Landing Lens:

WHITE Taxi Lens:
6° (at 50% of max light intensity)
16° (at 10% of max light intensity)
6° x 35° (at 50% of max light intensity)
16° x 50° (at 10% of max light intensity)
IR Landing Lens:
IR Taxi Lens:
8° (at 50% of max light intensity)
18° (at 10% of max light intensity)
7° x 46° (at 50% of max light intensity)
20° x 60° (at 10% of max light intensity)
Color and shade: Cool White
Overheat protection: Yes, temperature dependent decrement intensity
Weight: 1.11 kg / 2.447 lb
Useful life: not less than 30.000 aircraft flight hours
Dimension: 5.67” x 2.4” (D = 144 mm, H = 61.4 mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

Drawing

Titan Plus - drawing

Intensity

VIS Landing: 353,000 cd

VIS Taxi: 53,000 cd

IR Landing: 122 W/sr

IR Taxi: 20 W/sr

Installation Manual
