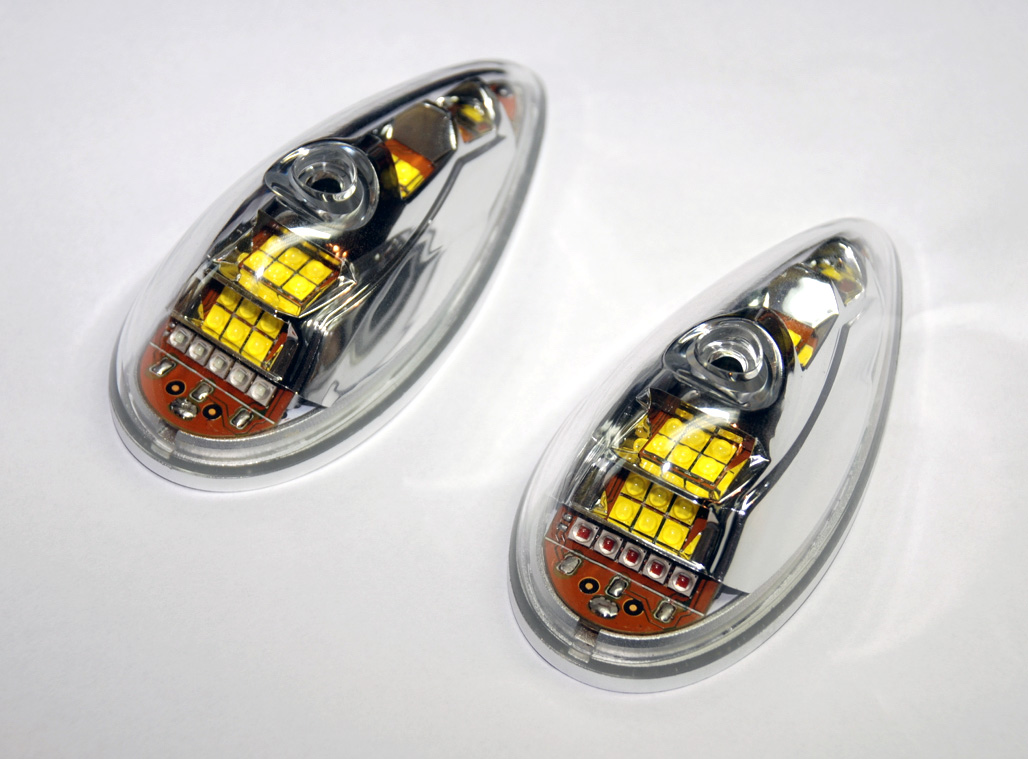

Ultra Galactica

Navigation / Position / Strobe LED light

The Ultra Galactica™ Series lights are a very popular choice for certified and general aviation aircraft of any size, due to their compact design and easy installation. The Ultra has also become the leading nav-position-strobe all-in-one solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with OEM aircraft manufacturers. The lowest profile, lowest drag certified light in the aviation world.




Dimensions (mm): 100.3 mm x 46 mm x 34 mm
Dimensions (inches): 3.949” x 1.811” x 1.34”
Weight (g): 127 g
Weight (oz): 4.48 oz
Operating Voltage Range: 9 – 36 VDC
Input Current – Position / Nav - green: 0.25A @36V, 0.3A @28V, 0.62A @14V, 0.9A @9V
Input Current – Position / Nav - red: 0.2A @36V, 0.25A @28V, 0.48A @14V, 0.8A @9V
Input Current – Strobe: 1.1A @36V, 1.4A @28V, 2.3A @14V, 2.9A @9V
Input Power - Position / Nav - green: 9 W @36V, 8.4 W @28V, 8.7 W @14V, 8.1 W @9V
Input Power - Position / Nav - red: 7 W @36V, 7 W @28V, 6.7 W @14V, 7.2 W @9V
Input Power - Strobe: 39.6 W @36V, 39.2 W @28V, 32.2 W @14V, 26.1 W @9V
Repetition Rate of Strobe: 50 cycles per minute
Recommended size of mounting screw: M5
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: YES (+85°C)
Reverse Polarity Protection: YES
Transient Voltage: 80V at 2sec max, both polarities
Under-Voltage Protection (lockout): YES (9V)
Over-Voltage Protection (lockout): YES (36V)
Waterproof, Dustr-proof, Shock-proof, Vibration-proof: YES


TSO Certified
