Ultra Galactica – Wingtip Navigation / Strobe / Position Light

Ultra Galactica - airplane aircraft helicopter wingtip wing navigation position strobe light

3-in-1 Navigation / Position / Strobe LED light

The Ultra Galacticaâ„¢ Series lights are a very popular choice for certified and general aviation aircraft of any size, due to their compact design and easy installation. The Ultra has also become the leading nav-position-strobe all-in-one solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with OEM aircraft manufacturers. The lowest profile, lowest drag certified light in the aviation world.

TSO CERTIFIED

3-in-1

Specification

Dimensions (mm): 100 mm x 46.2 mm x 34.1 mm
Dimensions (inches): 3.94“ x 1.819“ x 1.34“
Weight: 96 g / 3.386 oz
Operating Voltage Range: 9 – 36 VDC
Input Power
P/N: AVE-WPSTG-54G Mod(4)
Nav Green / Rear White Position:
9 V / 0.56 A : 5.0 W
14 V / 0.36 A : 5.1 W
28 V / 0.19 A : 5.4 W
36 V / 0.15 A : 5.5 W
Input Power
P/N: AVE-WPSTG-54G Mod(4)
Strobe:
9 V / 6.33 A : 57.0 W
14 V / 2.92 A : 40.9 W
28 V / 1.36 A : 38.1 W
36 V / 1.06 A : 38.2 W
Input Power
P/N: AVE-WPSTR-54G Mod(4)
Nav Red / Rear White Position:
9 V / 0.55 A : 4.9 W
14 V / 0.36 A : 5.0 W
28 V / 0.19 A : 5.3 W
36 V / 0.16 A : 5.6 W
Input Power
P/N: AVE-WPSTR-54G Mod(4)
Strobe:
9 V / 6.49 A : 58.4 W
14 V / 2.97 A : 41.6 W
28 V / 1.38 A : 38.5 W
36 V / 1.07 A : 38.5 W
Repetition Rate of Strobe: 50 cycles per minute

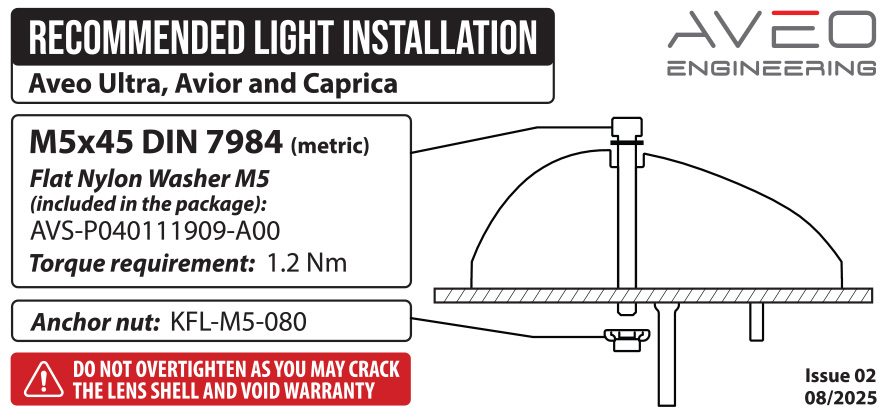

Recommended mounting screw: See pictures in section Drawing
Torque requirement for screw M5x45mm: 1.2 Nm
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Reverse Polarity Protection: Yes
Transient Voltage: 80V at 2sec max, both polarities
Under-Voltage Protection (lockout): Yes (9V)
Over-Voltage Protection (lockout): Yes (36V)
Waterproof, Dustr-proof, Shock-proof, Vibration-proof: Yes

TSO Certified

Drawing

Installation Manual

Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
