Titan Plus (28 VDC) – PAR 46 Landing and Taxi Light with WigWag Function

Titan - PAR46 Landing Taxi WigWag Recognition Light for aircraft or helicopters

PAR 46 Drop-In replacement

Multimode LED light

  • Landing
  • Taxi
  • WigWag

AveoEngineering introduces the exclusive next-generation Titanâ„¢ – Replacement for Legacy Lights.
A PAR 46 drop-in with the legendary Titan power!



Specification

LED quantity: 18 pcs
Input voltage: from +18 to +36 VDC
Input current: 5.5 A @ 28 VDC
Input power: 154 W @ 28 VDC
Transcient voltage: 2 seconds +80V
Under-voltage lockout: +17 VDC, not more
Over-voltage lockout: +36.7 VDC, not less
Ambient temperature: from -55°C to +85°C
(from -67°F to +185°F)
Lens (Beam pattern): Landing lens:
5° viewing angle - symmetrical beam

Taxi lens:
45°x 10° viewing angle

Color and shade: Cool White
Overheat protection: temperature dependent decrement intensity
Weight: 916g / 32.31 oz
Useful life: not less than 30.000 aircraft flight hours
Dimension: 5.67” x 2.4” (D = 144 mm, H = 61.4 mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA

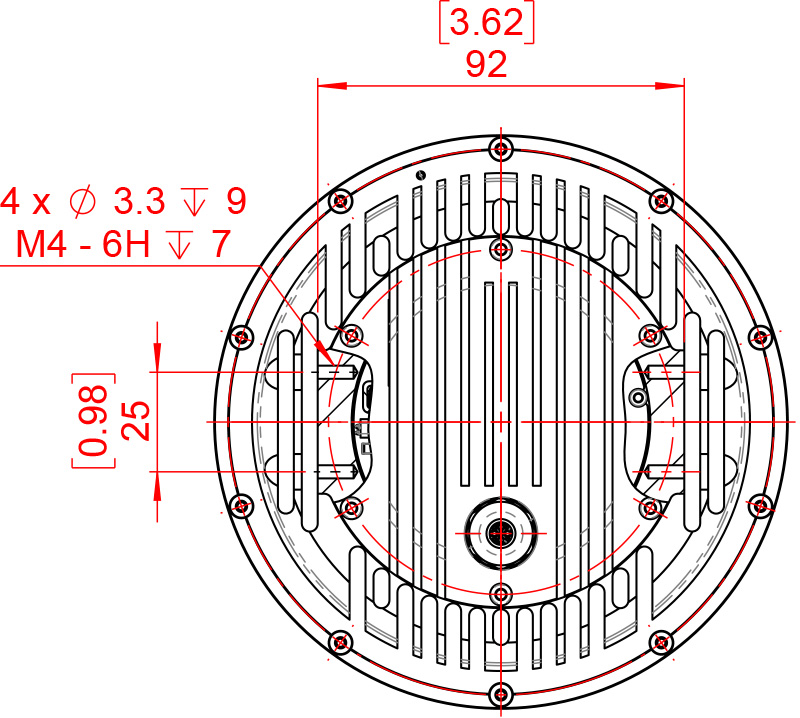

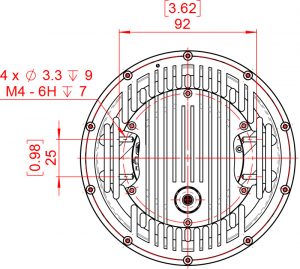

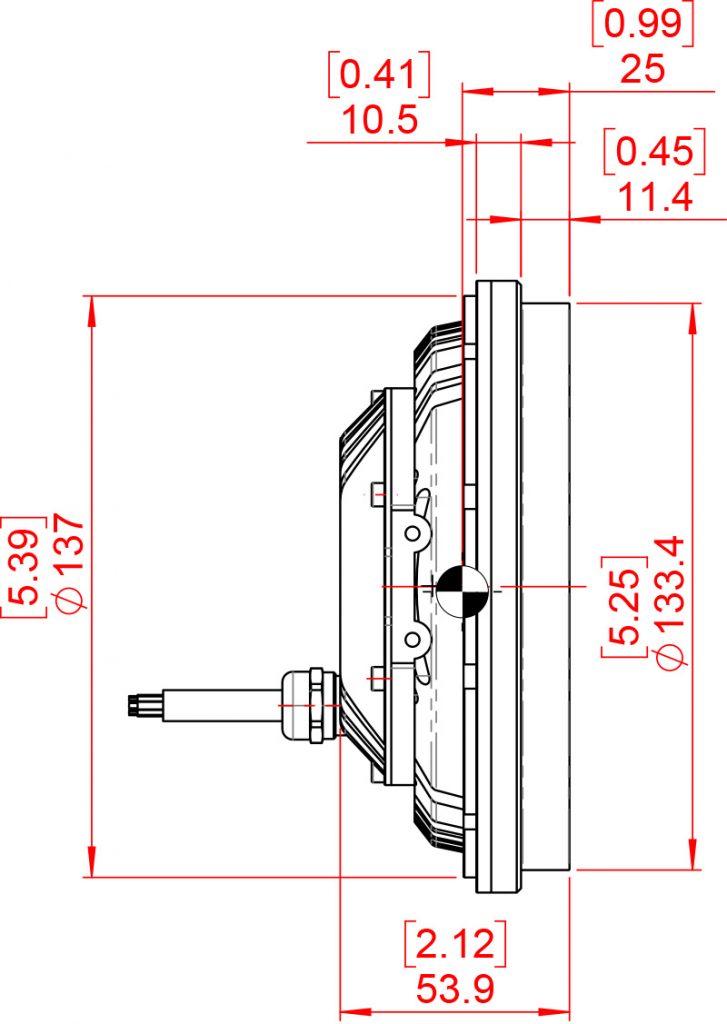

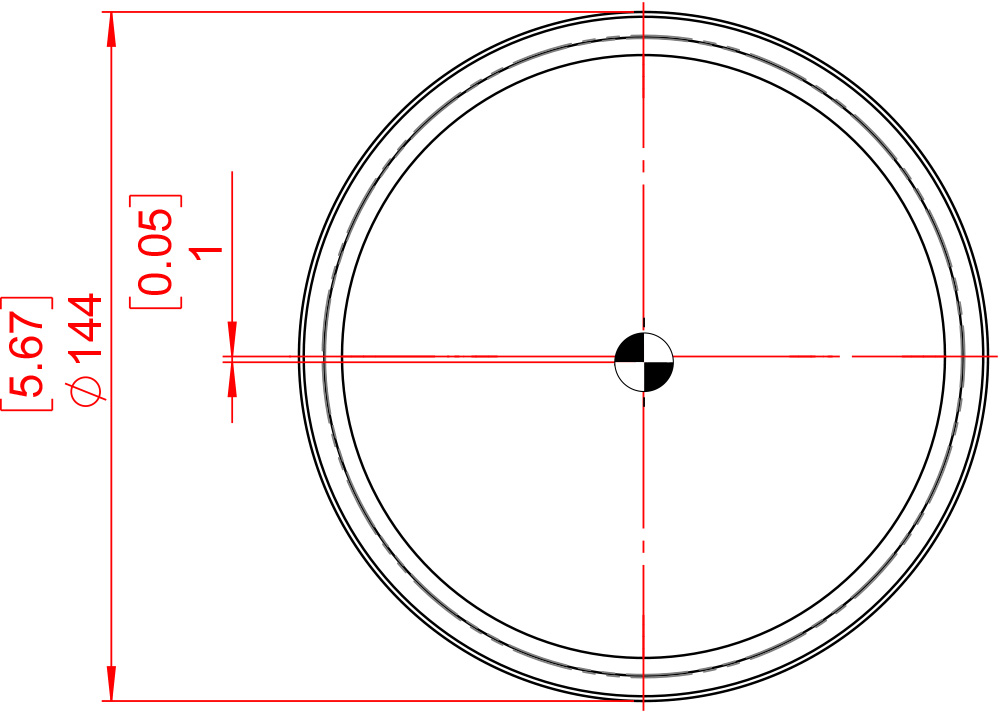

Drawing

Titan Plus - drawing

Installation Manual
