Ultra Embedded Galactica – Wingtip Navigation / Strobe Light

Ultra Galactica - airplane aircraft helicopter wingtip wing navigation position strobe light

2-in-1 Navigation / Strobe LED light

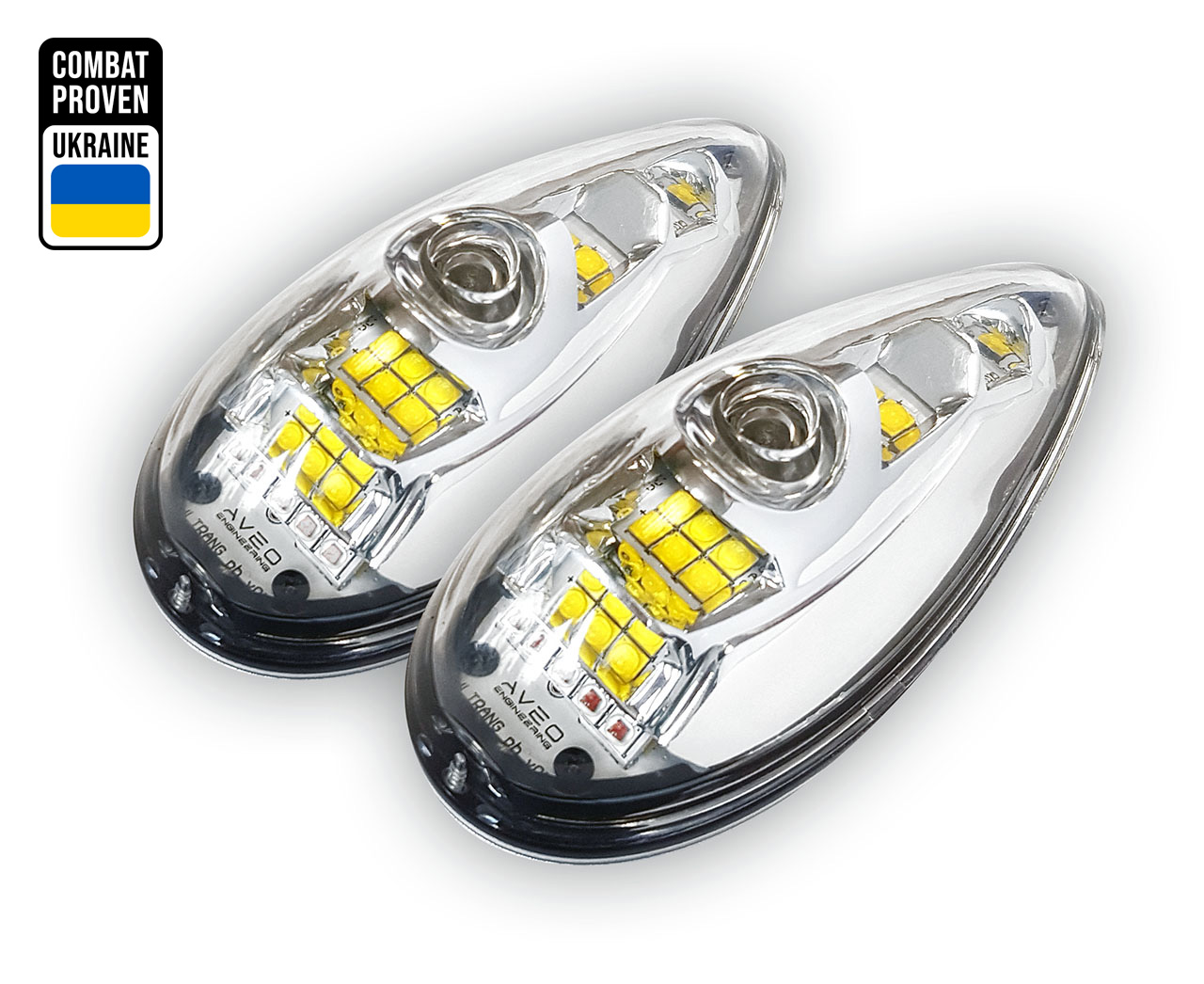

The Ultra Galactica™ Series lights are a very popular choice for certified and general aviation aircraft of any size, due to their compact design and easy installation. The Ultra has also become the leading nav-position-strobe all-in-one solution for numerous military and law enforcement/surveillance UAVs around the world and is very popular with OEM aircraft manufacturers. The lowest profile, lowest drag certified light in the aviation world.

TSO CERTIFIED

Diagram 2-in-1

Specification

Dimensions (mm): 100 mm x 46.2 mm x 34.1 mm
Dimensions (inches): 3.94” x 1.819” x 1.34”
Weight: 96 g / 3.386 oz
Operating Voltage Range: 9 – 36 VDC
Input Power
P/N: AVE-WPSG-64G Mod(4)
Nav Green:
9 V / 0.42 A : 3.78 W
14 V / 0.28 A : 3.92 W
28 V / 0.15 A : 4.20 W
36 V / 0.12 A : 4.32 W
Input Power
P/N: AVE-WPSG-64G Mod(4)
Strobe:
9 V / 5.65 A : 50.85 W
14 V / 2.78 A : 38.92 W
28 V / 1.29 A : 36.12 W
36 V / 1.00 A : 36.00 W
Input Power
P/N: AVE-WPSR-64G Mod(4)
Nav Red:
9 V / 0.37 A : 3.33 W
14 V / 0.25 A : 3.50 W
28 V / 0.13 A : 3.64 W
36 V / 0.11 A : 3.96 W
Input Power
P/N: AVE-WPSR-64G Mod(4)
Strobe:
9 V / 5.62 A : 50.58 W
14 V / 2.79 A : 39.06 W
28 V / 1.29 A : 36.12 W
36 V / 1.00 A : 36.00 W
Repetition Rate of Strobe: 50 cycles per minute
Recommended mounting screw: See pictures in section Drawing
Torque requirement for screw M5x45mm: 1.2 Nm
Ambient Temperature: from -55°C to +85°C
from -55°F to +185°F
Overheat Protection: Yes (+85°C / +185°F)
Reverse Polarity Protection: Yes
Transient Voltage: 80V at 2sec max, both polarities
Under-Voltage Protection (lockout): Yes (9V)
Over-Voltage Protection (lockout): Yes (36V)
Waterproof, Dust-proof, Vibration-proof: Yes

TSO Certified

Drawing

Installation Manual

Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
Ultra Galactica - aircraft wingtip navigation / position / strobe light
