AveoVision™ Sensors and Avionics

Your New Superpower.

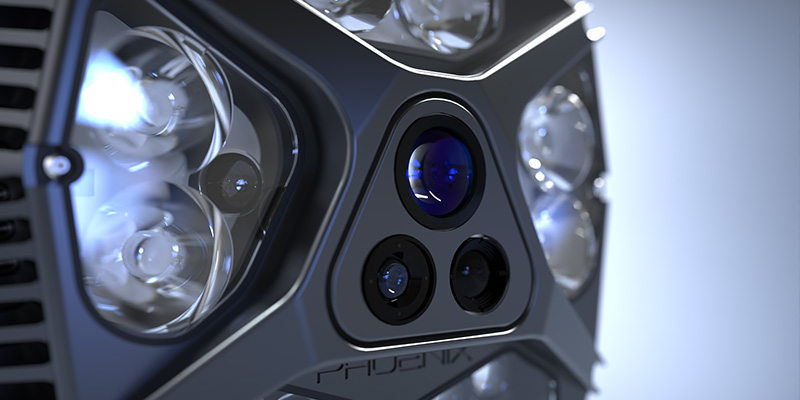

Aveo5D multispectral camera cluster in a Phoenix pod
Scroll to explore

Built in-house. Secure by design.

AveoVision™ designs its cameras, optics, radars and jammers in-house, on sensors from allied nations: NDAA-compliant, with no electronics that could compromise security.

  • However you deploy them. Standalone, in pods, or built into Aveo lighting: Phoenix™ for helicopters, Iguana™ for vehicles, Nemesis™ for UAVs, USVs and UGVs.
  • The lightest, most powerful in aerospace and defense. And genuinely affordable.
01

Aveo MissionMaster™

Common operating picture

For aircraft and helicopters, UAVs, defense vehicles, boats and rockets.

Every mission runs on fused sensor data, presented so it can be acted on. MissionMaster shares imagery and data across aircraft, vehicles and ground stations, each plotted on a moving map.

  • Any sensor. SWIR, LWIR, visible and night vision cameras; radars at various frequencies for specific functions; acoustic sensors; passive RF drone detection and jamming systems.
  • Engagement. Based on the threat, engagements are carried out via FPV or autonomous ATR, automatic target recognition.
  • Denial. Threats can be jammed or passively controlled before they reach the platform.
  • Civil and military. SAR, EMS, police and military defense. The system is customised for local environments and mission requirements.
02

Aveo5D™ Multispectral Cameras

Multispectral

Across the full spectrum, visible day, SWIR, MWIR and LWIR thermal, in the resolutions and optics each mission needs.

AveoDAY™ Cameras

Daylight, in full detail.

When the weather's clear and visibility's high, AveoDAY gives you the full picture with whatever optics you need.

AveoDAY camera mounted on a vehicle roof light bar
  • Optics for the mission. Resolution varies by model, with telephoto and motorized-zoom lenses for magnification.
  • Built into the wing. Some AveoDAY cameras fit inside aerodynamic, lighted wingtips.
  • Color, even in low light. Aveo5D adds a low-light color camera, so you see the world in color, not monochrome.
  • Freestanding or integrated. Standalone, or built into Aveo lighting: Phoenix™, Genesis™, Nemesis™, Sapphire, Iguana Pods and Pantheon™.
Aveo5D™ SWIR

Through bad weather, day or night.

SWIR sees in daylight, at night and in poor weather. With Aveo's IR illuminators it holds a clear image even in low-reflection conditions, so helicopter crews fly IFR missions they would otherwise scrub.

  • Resolution. Sensors from 640×512 up to 1280×1024.
  • Optics. 9 mm to 900 mm, from normal to long range, with lenses matched to the mission.
  • Milspec. Meets military environmental requirements.
AveoMWIR™ Cameras

Long-range thermal observation.

A cryogenically cooled mid-wave system for long-distance observation. It needs active stabilization and a platform with the power to run and steer it. Meets military environmental requirements.

Aveo5D™ LWIR

Thermal that sees through cover.

Low-cost thermal for low-light work. LWIR picks out living and inert bodies against their background, through weather or foliage, and streams to any Aveo display or over Aveo's video network. Sensors from 640×512 to the world's first 1920×1080 thermal sensor. Meets military environmental requirements.

03

Aveo5D™ Night Vision

Optics & fusion

Every part, built in-house.

Aveo5D designs every component of its digital and analog night vision, down to the optics. Only the image intensifier tube is bought in.

World-class optics. In-house night vision optics in 50° and 40° fields of view, fully mil-spec, and accurate to their stated performance.

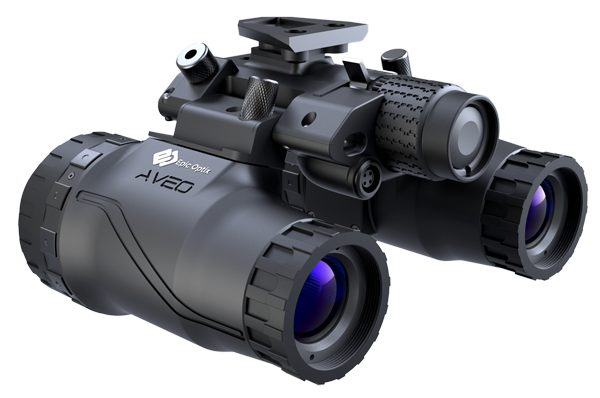

Aveo night vision binocular

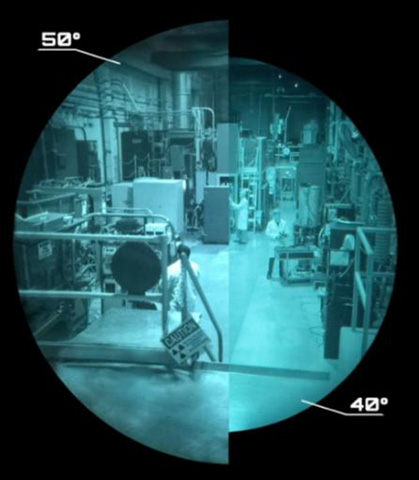

50 and 40 degree field of view through Aveo night vision optics
  • 5D binocular housing. Aveo's graphene-coated SLS powder, light and heat-dissipating. Two IR illuminators (850 nm and 1064 nm), articulating for interpupillary distance and field of view, up to 85° FOV with the 50° optics.
  • Hybrid Binoculars. One side a night vision tube, the other a 640-resolution thermal camera. Your eyes fuse them into one image, in a light, low-cost package.
  • Trinocular System. Day, thermal and digital night vision at 7× magnification, fused on two OLED displays. Built-in Wi-Fi streams the view anywhere.
  • Panoramic Quad Night Vision. Graphene-based SLS housing, light and stronger than steel. IR illuminator, onboard or battery-pack power, adjustable diopter, front collimation. With the 50° optics the field of view runs wider than the naked eye.
04

Aveo5D™ Micro Radars

mmWave sensing

Millimeter-wave sensing for any platform.

A line of micro radars for air, surface and ground platforms, each running at the millimeter-wave frequency its job calls for.

  • Altimeter and obstruction warning. A low-altitude altimeter that also flags obstructions in the platform's path.
  • Drone and obstacle detection. Picks up small drones, power lines, and objects near the platform.
05

Aveo ForceField™ Jammers

Counter-drone EW

Stop the drone, or take it.

Counter-drone jammers in form factors from small drones to large helicopters and aircraft: a serious line of defense against drone threats and collisions.

  • Detects the drone. Reads a commercial drone's unique identifier code and the frequencies of both its data link and video link.
  • Jam it, or take it. Jam the drone completely, or take effective control of it.
  • Directional or 360°. Defend one direction, or the full sphere around the platform.
